MOY Sticker Sanded 3 mm - Self-adhesive Bitumen AVCL
Verified by manufacturer 1 month ago
Prefabricated self-adhesive layer.
Application
- Self-Adhesive.
- Primarily used as a base layer in a built-up felt system.
- Can also be used as a carrier layer under cold applied liquid waterproofing, or as an air and vapour control layer (AVCL) within a warm roof, subject to the building use below.
- Must be used with the appropriate MOY SA Primer.
- Only suitable for use in temperatures above +5°C.
Description
Sticker Sanded 3 mm is a prefabricated self-adhesive layer, obtained by layered coextrusion of special compounds based on selected bitumen modified with elasto-thermoplastic polymers and a glass veil reinforcement.
The lower face of the membrane is bonded with the use of special additives that give the bituminous compound specific and persistent adhesive properties, and is protected by a silicone-coated film to be removed at the time of installation. The upper face is finished with a sandblasting treatment.
Features and benefits:
- Specific and persistent adhesive properties.
- Contain no asbestos, tar or other dangerous substances.
- Certification: Safe2Torch, CE and ETA marked.
General information
Color | Black |
Finish | Sandblasted |
Material | Bitumen Polymer |
Shape | Other |
Length | 10000 mm |
Width | 1000 mm |
Height | 3 mm |
Warranty description | Manufacturer guidanceFor the duration of the MOY Warranty. |
Uniclass | |
CAWS | J31/10 Warm deck roof coating J31/120 Warm deck roof coating J31/5 Cold deck roof coating J31/110 Cold deck roof coating J41/395 Air and vapour control layer J31/353 Waterproof coating J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/400 Built-up reinforced bitumen waterproof covering J31/47 Waterproof coating J41/10 Reinforced bitumen membrane warm deck roof covering |
Specification data - Reinforced bitumen roofing sheets
Standard | To BS EN 13707. |
Performance characteristics | External fire performance to CEN/TS 1187:2012, Class BROOF (t4).Guidance for specification option: Consult manufacturer for details. |
Material | |
Carrier material | Polyester. |
Bitumen modification | Elastomeric. |
Thickness (minimum) | 3 mm.Guidance for specification option: (±5%). Manufacturer guidanceTo EN 1849-1. |
Weight (minimum) | Manufacturer guidanceConsult manufacturer for details. |
Surface finish | |
Top | Sanded. |
Underside | Self-adhesive backing. |
Third-party certification | European Organisation for Technical Assessment (EOTA) approved. |
Roll size | To EN 1848-1, ≥10000 x 1000 mm (-1%). |
Watertightness | To EN 1928-B, ≥60 kPa. |
Cold flex temperature | To EN 1109, ≤-25°C. Manufacturer guidanceCold flexibility. |
FlowResistanceRange | To EN 1110, ≥100°C. Manufacturer guidanceFlow resistance at elevated temperature. |
Elongation (to EN 12311‐1) | 45% (longitudinal); 45% (transverse). Guidance for specification option: (±15 and ±2 for Glass Mat reinforcements). |
Tensile strength (to BS EN 12311-1) | 500 N/5 cm (longitudinal); 400 N/5 cm (transverse). Guidance for specification option: (±20%). |
Dimensional stability | To EN 1107-1, ≤0.2%. Manufacturer guidanceLongitudinal and transverse dimensional stability. |
Tear resistance (BS EN12310-1) | 150 N (longitudinal); 150 N (transverse). Guidance for specification option: (±30%). |
Fire reaction (EN 13501-1) | Euroclass F. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Bitumen Polymer |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceBiogenic Carbon Content: In Product: 0 kg C/m2 In Packaging: 0.04 - 0.05 kg C/m2 |
Recyclability | Due to the thermoplastic properties of their principle components (bitumen, polyester reinforcements, polymers, fusible plastic film), bitumen waterproofing sheets can be converted into mass bitumen products like road asphalt – significantly reducing the demand for virgin bitumen. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 3 % |
Literature

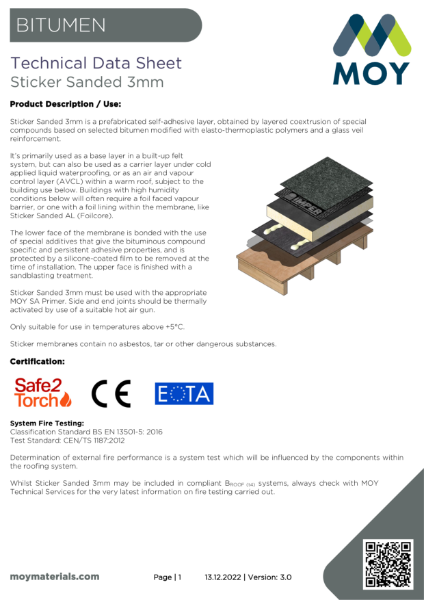

MOY Sticker Sanded 3 mm
