MOY Paralon Antiroot (NT4) Cap Sheet - Waterproofing Membrane
Verified by manufacturer 1 month ago

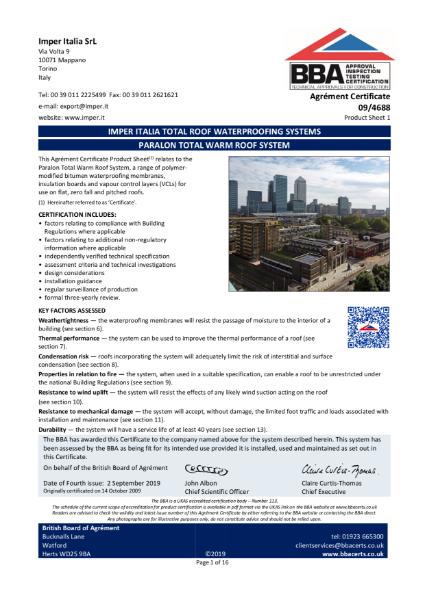

BBA Agrément Certificate
Certificate type
APP and SBS modified bitumen polymer waterproofing membrane.
Application
- Intended for waterproofing green roofs.
- Suitable for application in low temperature conditions.
- May be used in new build and refurbishment green roof applications.
Description
Paralon Antiroot (NT4) is an APP and SBS modified bitumen polymer waterproofing membrane manufactured using special chemical additives intended for waterproofing green roofs. It is manufactured with a sanded upper surface. The lower face is coated with Termotene® fusible film which aids unrolling and facilitates torch bonding to various substrates.
The membranes performance is obtained by coextrusion of the PARALLOY® compound which combines the best characteristics of SBS and APP compounds, using suitable additives with special chemical substances (fatty acids, phenoxide, esterified) that give the product a long-lasting anti-root effect, and a reinforcing mat of “non-woven fabric” made with continuous polyester thread.
Features and benefits:
- Anti-root properties.
- Special formulation ensures high mechanical performance, cold flexibility at temperatures down to –20°C and excellent fatigue strength.
- Contain no asbestos, tar or other dangerous substances.
- Certification: BBA, NSAI, FM approved and CE marked.
General information
Color | Black |
Finish | Sanded |
Material | Polymer Styrene butadiene Bitumen Polypropylene |
Shape | Other |
Length | 10000 mm |
Width | 1000 mm |
Height | 4 mm |
Warranty description | Manufacturer guidanceFor the duration of the MOY Warranty. |
Uniclass | |
CAWS | J31/353 Waterproof coating J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/400 Built-up reinforced bitumen waterproof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering Q37/130 Extensive green roof J41/10 Reinforced bitumen membrane warm deck roof covering J31/47 Waterproof coating |
Specification data - Reinforced bitumen roofing sheets
Standard | To BS EN 13707. |
Performance characteristics | External fire performance to CEN/TS 1187:2012, Class BROOF (t4).Guidance for specification option: Consult manufacturer for details. |
Material | |
Carrier material | APP and SBS. |
Bitumen modification | Polymeric. |
Thickness (minimum) | 4 mm.Guidance for specification option: (±5%). Manufacturer guidanceTo EN 1849-1. |
Weight (minimum) | Manufacturer guidanceConsult manufacturer for details. |
Surface finish | |
Top | Sanded. |
Underside | Termotene® fusible film. |
Third-party certification | British Board of Agrément (BBA) and National Standards Authority of Ireland (NSAI) certified. |
Roll size | To EN 1848-1, ≥10000 x 1000 mm (-1%). |
Watertightness | To EN 1928-B, ≥60 kPa. |
Cold flex temperature | To EN 1109, ≤-20°C. Manufacturer guidanceCold flexibility. |
FlowResistanceRange | To EN 1110, ≥140°C. Manufacturer guidanceFlow resistance at elevated temperature. |
Elongation (to EN 12311‐1) | 50% (longitudinal); 50% (transverse). Guidance for specification option: (±15). |
Tensile strength (to BS EN 12311-1) | 750 N/5 cm (longitudinal); 650 N/5 cm (transverse). Guidance for specification option: (±20%). |
Dimensional stability | To EN 1107-1, 0.3%. |
Puncture resistance | To EN 12730-B, ≥25 kg (static puncture); to EN 12691-B, ≥1000 mm (dynamic puncture). |
Tear resistance (BS EN12310-1) | 160 N (longitudinal); 180 N (transverse). Guidance for specification option: (±30%). |
Peel resistance of joints (to BS EN 12316-1) | 60 N/5 cm. Guidance for specification option: (±20%). |
Fire reaction (EN 13501-1) | Euroclass F. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Polymer Styrene butadiene Bitumen Polypropylene |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceBiogenic Carbon Content: In Product: 0 kg C/m2 In Packaging: 0.04 - 0.05 kg C/m2 |
Recyclability | Due to the thermoplastic properties of their principle components (bitumen, polyester reinforcements, polymers, fusible plastic film), bitumen waterproofing sheets can be converted into mass bitumen products like road asphalt – significantly reducing the demand for virgin bitumen. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 3 % |
Third party certifications
Literature

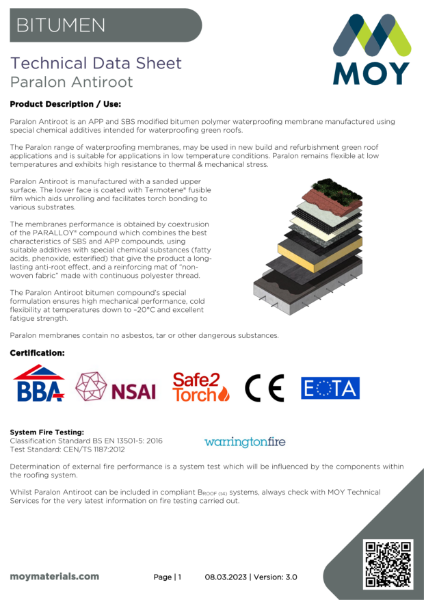

MOY Paralon Antiroot Cap Sheet
09/4688_1 Paralon Total Green Proof System

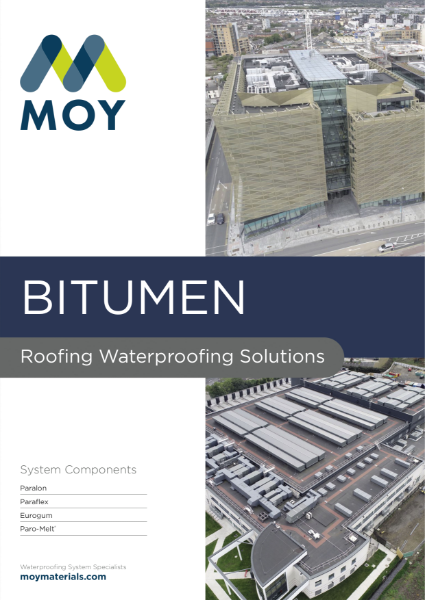

MOY Reinforced Bitumen Waterproofing Brochure
