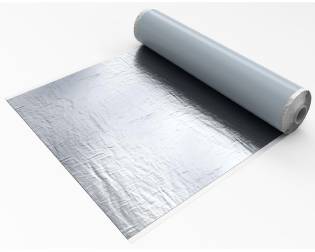

MOY Elotene DSN - Self-adhesive Bituminous AVCL/Carrier
Verified by manufacturer 3 months ago
Bituminous air and vapour control membrane/ carrier membrane.
Application
Suitable for use:
- On most common substrates such as concrete, plywood/ OSB and metal decks.
- In temperatures above +5°C.
- In buildings with extreme internal conditions and high humidity such as sports halls, swimming pools, bathrooms, kitchens and wet industrial processes.
- As a carrier layer within a cold applied liquid waterproofing system, such as the Enkopur 1K PU coating.
Description
Elotene DSN is a self-adhesive bituminous membrane that forms a barrier against vapour and gases. It consists of a self-adhesive bituminous compound reinforced by a composite aluminium foil with integral glass-fibre mat. The upper foil surface is polyester coated offering protection from alkalis and provides a surface on to which MOY polyurethane insulation adhesives will adhere.
Fast and easy installation achieves waterproofing of a roof structure prior to the installation of the insulation and CE Declaration of Performance is available on request, providing a vapour barrier without the need for hot works or naked flame in application.
Features and benefits:
- Self-adhesive.
- Extremely high vapour resistance.
- Fast and easy installation.
- Achieves waterproofing of a roof structure prior to the installation of the insulation.
- High integral strength withstands puncturing from foot traffic when used on profiled metal decks.
- CE Declaration of Performance is available on request.
Approvals/ standards:
- EN 13970 type A e T: Flexible sheets for waterproofing. Bitumen vapour control layers.
- Water Vapour Resistance: Non-Hazardous.
- Total Volatile Organic Compound emissions (TVOC): 8 μ/m³ Tested by eco-INSTITUTE, following SINTEF standard, ISO 16000-6.
- Quality Management System: EN ISO 9001.
- CE Marked: EN 13970.
General information
Color | Silver |
Finish | Foil |
Material | Bitumen Aluminium Foil Glass Fibre Polyester |
Shape | Other |
Length | 40000 mm |
Width | 1080 mm |
Height | 0.6 mm |
Warranty description | Manufacturer guidanceFor the duration of the MOY Warranty. |
Uniclass | |
CAWS | J41/12 Reinforced bitumen membrane cold deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering J31/330 Air and vapour control layer J42/110 Warm deck roof covering J42/10 Warm deck roof covering J41/395 Air and vapour control layer J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering |
Specification data - Reinforced bitumen roofing sheets
Standard | To EN 13970. |
Material | |
Carrier material | Glass fibre. |
Thickness (minimum) | 0.6 mm. |
Weight (minimum) | ±28 kg. |
Surface finish | |
Top | Aluminium foil. |
Underside | Self-adhesive backing. |
Tensile strength (to EN 12311-2) | >600 N/50 mm (longitudinal); >600 N/50 mm (transverse). |
Elongation at break (to BS EN 12311-1) | >5% (longitudinal); >5% (transverse). |
Static load resistance | To EN 12730, 5 kg (Met. A); 20 kg (Met. B). |
Tear resistance (BS EN12310-1) | 190 N (longitudinal); 190 N (transverse). |
Peel resistance of joints (to EN 12317-2) | 40 N/50 mm. |
Shear resistance of joints (to EN 12317-2) | >400 N/50 mm (longitudinal); >400 N/50 mm (transverse). |
Impermeability (to BS EN 1928) | Pass ≥60 Kpa. |
Water vapour resistance (to EN ISO 12572) | Pass (Sd ≥1500 m). |
Application temperature | +5°C/ +45°C. |
Service temperature | 40°C/ +80°C. |
Fire behaviour (to BS EN 13501-1) | Class E. |
Flammability | To DIN 44102, B2. Manufacturer guidanceInflammability Classification. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Literature

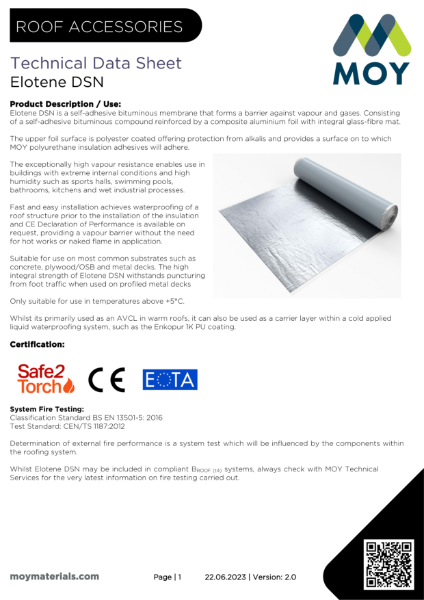

MOY Elotene DSN
Similar products from MOY

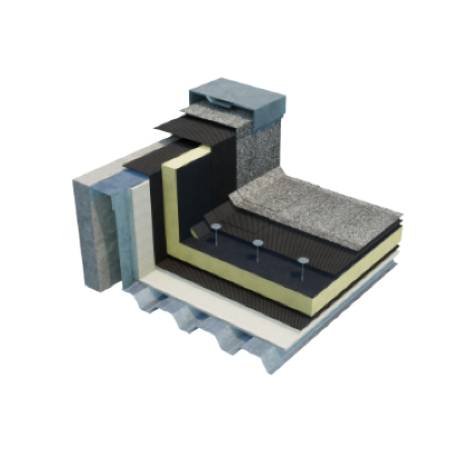

MOY Parabase 3 kg - Modified Bitumen AVCL

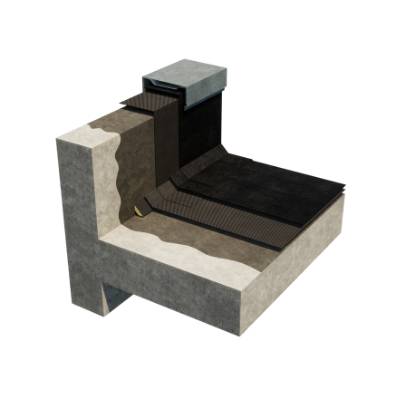

MOY Paraflex ARD/HS Cap Sheet - Waterproofing Membrane
