Mechanically Fixed System With PIR Insulation Board And Decorative Fascia - RENOLIT ALKORPLAN F
Verified by manufacturer 2 months ago

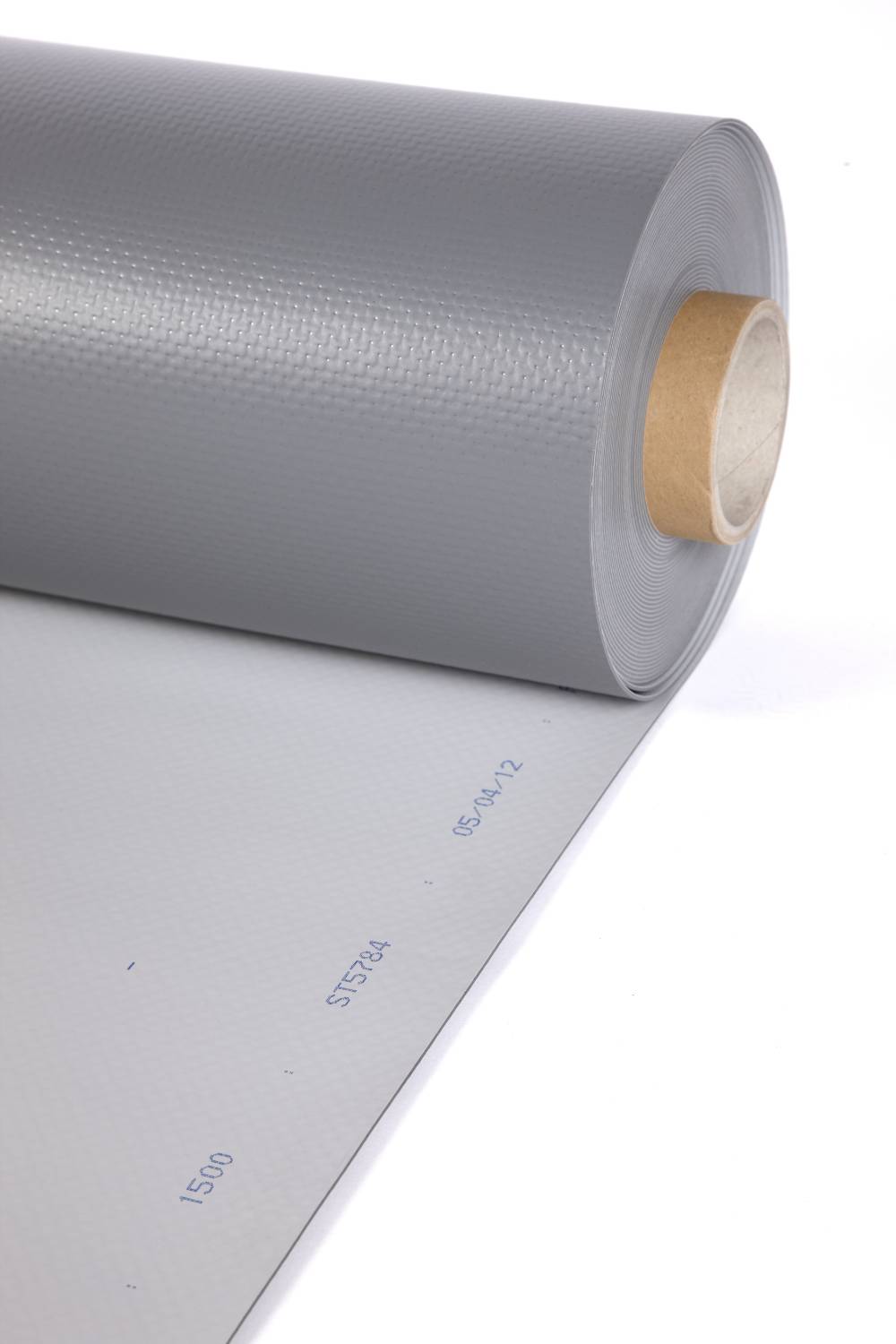

RENOLIT ALKORPLAN F 35276 - 1.5 mm Thick
BBA Agrément Certificate
Certificate type
EPD
Certificate type
Mechanically Fixed, single layer warm roof covering system.
Application
Mechanical fastening is suited for lightweight, metal deck structures, for large industrial buildings, warehouses, logistic centers, etc. It can also be applied on concrete structures or wooden decks.
The roofing membrane is fastened to the substrate along the longitudinal edges by means of pressure plates and screws. Wind load calculations can accurately determine the exact number of fasteners to be used in order to avoid any risk of wind uplift.
At the overlap, the membrane is hot air welded. The hot air welded joints are at least as strong as the roofing membrane itself. Quick and easy to apply, in all weather conditions, the system provides a durable watertightness of the roof.
Description
A range of membranes designed for mechanical fastening, perfectly suited for lightweight, metal deck structures for large industrial buildings, warehouses, logistic centres, etc. It can, however, also be applied on concrete structures or wooden decks. They are UV and weather resistant with a high moisture vapour permeability, rot proof and root resistance.
The RENOLIT ALKORPLAN F membrane for mechanical fastening has a woven polyester reinforcing, which makes the membrane even more resistant.
Mechanically fastened membranes are also available for aesthetic roof solutions, thanks to a broad colour range, standing seam imitation and ecological solutions (cool roof and cool coloured membranes).
In case of renovation or demolition, the mechanically fixed membrane can be easily removed and recycled.
Features and benefits:
- Mechanically fastened.
- CE marked.
- UV resistant.
- Weather resistant.
- Multiple colour options.
- Recyclable.
- ALKORPLAN F membranes have been assessed to have a service life in excess of 40 years.
General information
Color | Grey |
Finish | Matt |
Material | Polyvinyl chloride (PVC) Manufacturer guidanceSingle ply membrane. |
Shape | Rectangle |
Length | 20000 mm |
Width | 1050 mm 1600 mm |
Warranty description | Ten year 15 year 20 year |
Uniclass | |
CAWS | J42/110 Warm deck roof covering J42/400 Waterproof membrane |
Product range |
Specification data - Polymeric membranes
Material | Laminated reinforced membrane of flexible P-PVC. |
Standard | To BS EN 13956. |
Third-party certification | British Board of Agrément (BBA) certificate. |
Performance characteristics | |
Watertightness | Pass. |
Tensile properties | To EN 12311-2, ≥1100 N.Manufacturer guidancePer 50 mm. |
Tear resistance | To EN 12310-2, ≥225. |
Integral backing fleece | No. |
Width (minimum) | 1050 mm.Guidance for specification option: 20 m rolls. 1600 mm.Guidance for specification option: 15 m rolls. |
Thickness (minimum) | 1.5 mm. |
Colour | Grey. |
Accessories | None.ALKORPLAN® 35X71 unreinforced detailing membrane.Guidance for specification option: 1.5 mm unreinforced membrane and junction strip for waterproofing outlets, pipes, seams and Alkormetal sections. ALKORPLAN® 81038 seam sealer.ALKORPLAN® 81080/ 81061/ 81062 corners.Guidance for specification option: Inner (81060), outer (81061) and rooflight corners (8106) formed from light grey unreinforced AlkorPlan. ALKORPLAN® 81088 outlets.Guidance for specification option: Unreinforced AlkorPlan® outlets for a reliable connection to existing outlets. Light grey PVC. Available in 70, 85 and 110 mm diameters. ALKORPLAN® 81170/ 81171 Metalsheet.Guidance for specification option: 0.6 mm thick galvanized steel sheet with 0.8 mm thick unreinforced AlkorPlan® membrane laminated to the surface. Designed for the creation of upstands, parapets and drips. ALKORPLAN® 81025 solvent welding fluid. |
Standard | Conforms to UEAtc guidelines. |
Performance characteristics | To DIN 16734. |
Weight | 1.85 kg/m². |
Elongation | ≥16%. ≥15%. |
Dimensional stability | ≤0.3%. |
Water vapour diffusion resistance | To EN 1931, 20,000 μ. |
Sustainability data
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Polyvinyl chloride (PVC) Manufacturer guidanceSingle ply membrane. |
Manufacturing plant location | |
Expected Life | 40 year |
