Low Dome Tactile Demarcation Stud

Verified by manufacturer 1 month ago

Plain Top Low Dome Brass Tactile Stud - 25 mm (202-201)

Studmarc Variant:

Tactile Demarcation stud.

Jump to:
BOS
+44(0)1686 807 450 Website

Application

These studs are suitable for use as:

  • Stair-nosing alternative.
  • Area demarcation aids.
  • Tactile guidance for the blind and visually impaired.

Description

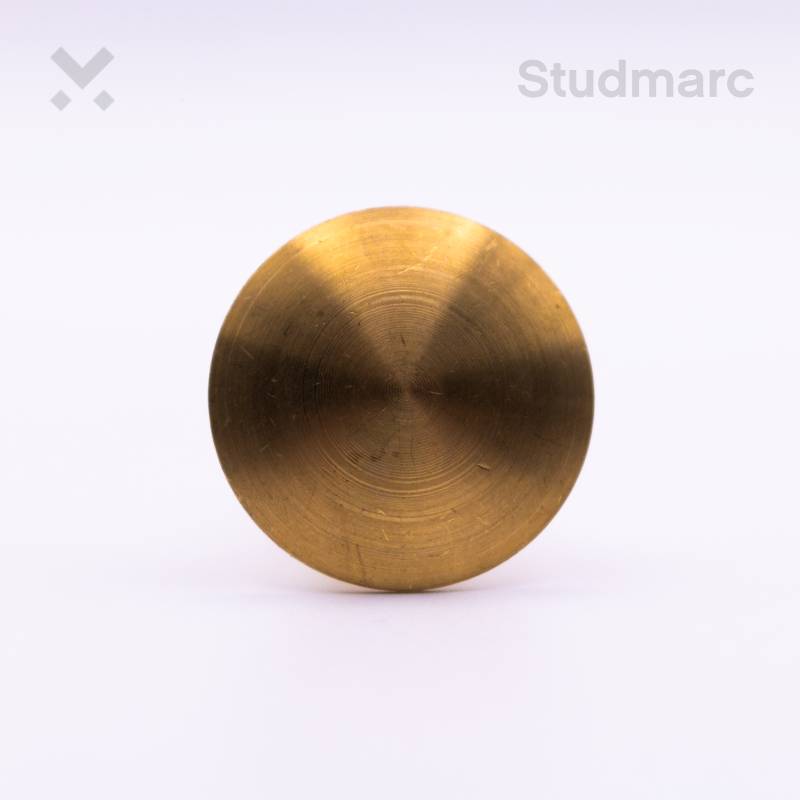

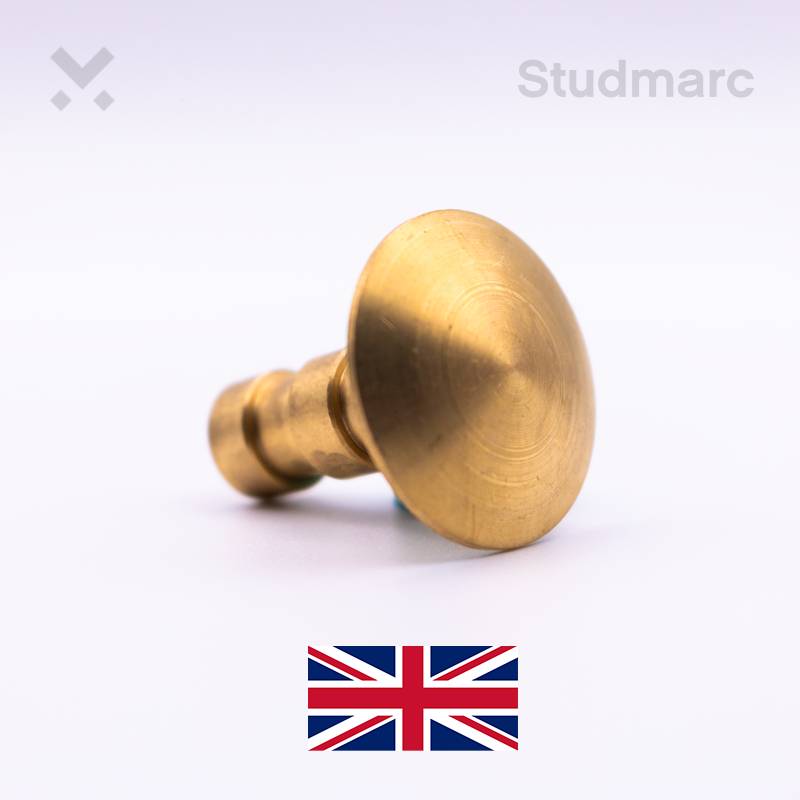

This low dome tactile stud is manufactured from various materials including high-quality brass and stainless steel, and is finished with a smooth domed surface. At 25 mm in diameter and 5 mm in height, they're ideal for providing tactile feedback for the visually impaired and are DETR compliant.


The low dome stud shape provides ample tactile feedback for pedestrians without becoming intrusive.


Alternate sizing is available with our bespoke product service.


Tactile strips with matching patterns are available.


Bespoke sizing guide:

  • Diameter: 15–100 mm.
  • Stud head height: 3–6 mm.
  • Fixing pin length: 12–80 mm.


Bespoke finishing options:

  • Bright polish.
  • Sandblasted.
  • Burnt.
  • Anti-Slip rings.
  • Plain top.


Available material options:

  • Brass.
  • 1.4404 (316L) Stainless Steel.
  •  1.4301 (304) Stainless Steel.
  • Bronze.
  • Aluminium.


Features and benefits:

  • DETR compliant.
  • Easy drill and resin installation.
  • Attractive alternative to stair nosings.
  • Weatherproof 1.4404 (316L) stainless steel.

General information

Color

Silver

Yellow

Bronze

Finish

Satin

Natural

Polished

Sandblasted

Burnt

Show more

Material

Brass

Bronze

Stainless steel

Shape

Circle

Length

25 mm

Bespoke

12 mm

Width

25 mm

Guidance for specification option:

Diameter

Bespoke

Height

5 mm

Bespoke

Warranty description

Two year

Uniclass

Pr_35_90_60_87 Tactile paving studsPrimary

CAWS

Q10/415 Demarcation units

Specification data - Tactile paving studs

Material

Brass.

Profile

Low dome.

Size

25 mm diameter.

Bespoke.

Fixing:

Machined pin.

Self adhesive.

Without pin.

Design:

Laser etching/engraving.

Printed acrylic imagery.

Printed imagery.

Finish:

Bright polish.

Burnt.

Sandblasted.

Anti-slip finish

Anti slip grooves.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

Should the need to recycle the studs arise, all material options bar Polyurethane can be melted down and reused again
