Flush Fit Demarcation Visibility Stud
Verified by manufacturer 4 months ago

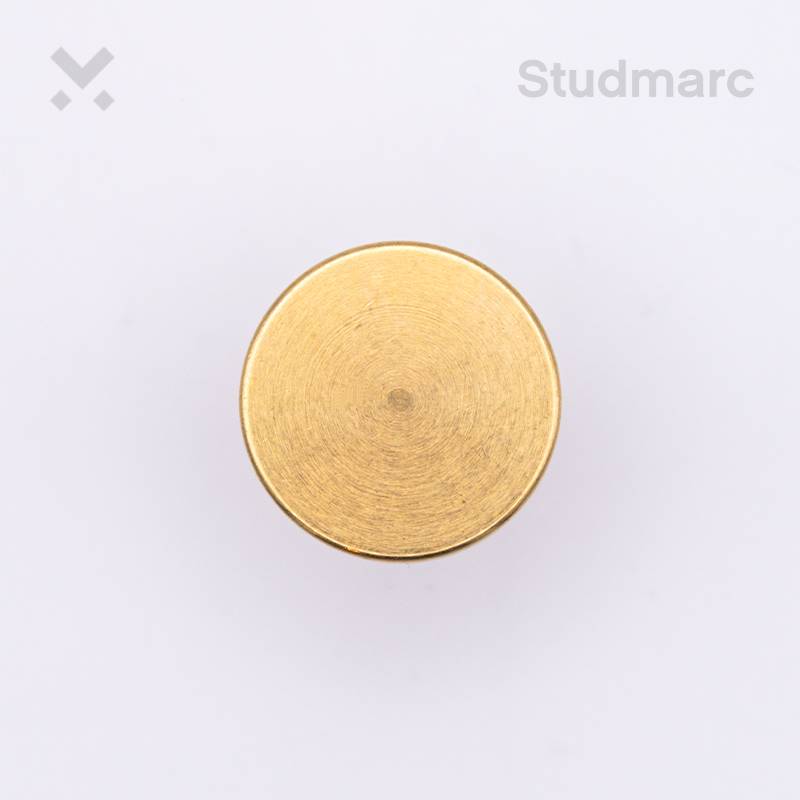

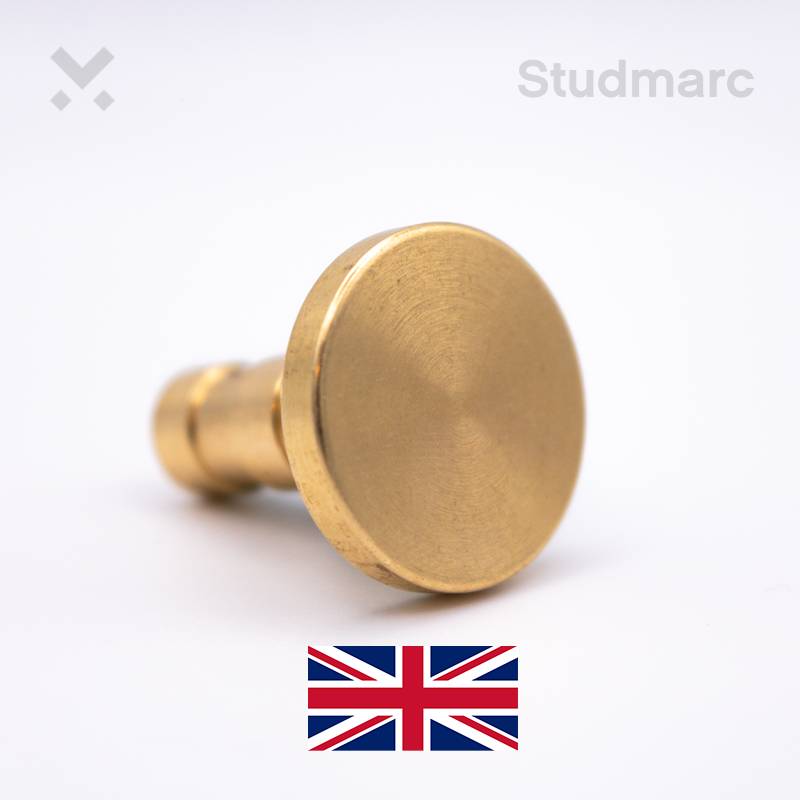

Brass Flush Fit Visibility Stud (201-101)
Brass Flush Fit Visibility Stud (201-101)
Flush Fit Demarcation stud.
Application
These studs are ideal for use as:
- Stair-nosing alternative.
- Area demarcation aids.
- Tactile guidance for the blind and visually impaired.
Description
This flush fit visibility stud is manufactured, as standard, from high-quality brass or 1.4404 (316L) stainless steel and features a smooth surface. At 25 mm in diameter and 5 mm in height, this stud is in line with DETR guidelines, meaning they are suitable for use in guiding the visually impaired in public and private settings.
Alternate sizing is available with the bespoke product service.
Tactile strips with matching patterns are available.
Bespoke sizing guide:
- Diameter: 15–100 mm.
- Stud head height: 3–6 mm.
- Fixing pin length: 12–80 mm.
Bespoke finishing options:
- Bright polish.
- Sandblasted.
- Burnt.
- Laser etching/ engraving.
- Printed imagery.
Available material options:
- Brass.
- 1.4404 (316L) / 304 Stainless steel.
- Aluminium.
- Bronze.
Features and benefits:
- DETR compliant.
- Easy drill and resin installation.
- Attractive alternative to stair nosings.
- Weatherproof 1.4404 (316L) stainless steel.
General information
Color | Silver Yellow |
Finish | Satin |
Material | Brass Stainless steel Bronze Aluminium |
Shape | Circle |
Length | 25 mm Bespoke |
Width | 25 mm Guidance for specification option: Diameter Bespoke |
Height | 5 mm Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | Q10/415 Demarcation units |
Specification data - Tactile paving studs
Material | Brass. |
Profile | Flush fit. |
Size | 25 mm diameter.Bespoke. |
Fixing: | Machined pin. Self adhesive. Without pin. |
Finish: | Bright polish. Burnt. Sandblasted. |
Design: | laser etching/engraving. Printed acrylic imagery. Printed imagery. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Should you need to recycle studs, all material options can be melted down and reused again. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Flush Fit 25mm Demarcation Stud - Datasheet
