Cross Hatch Textured Tactile Guiding Strip

The hatch-textured guiding strip is compliant for use in guiding the visually impaired in the public realm. Available in several metals and customizable with bespoke sizing.

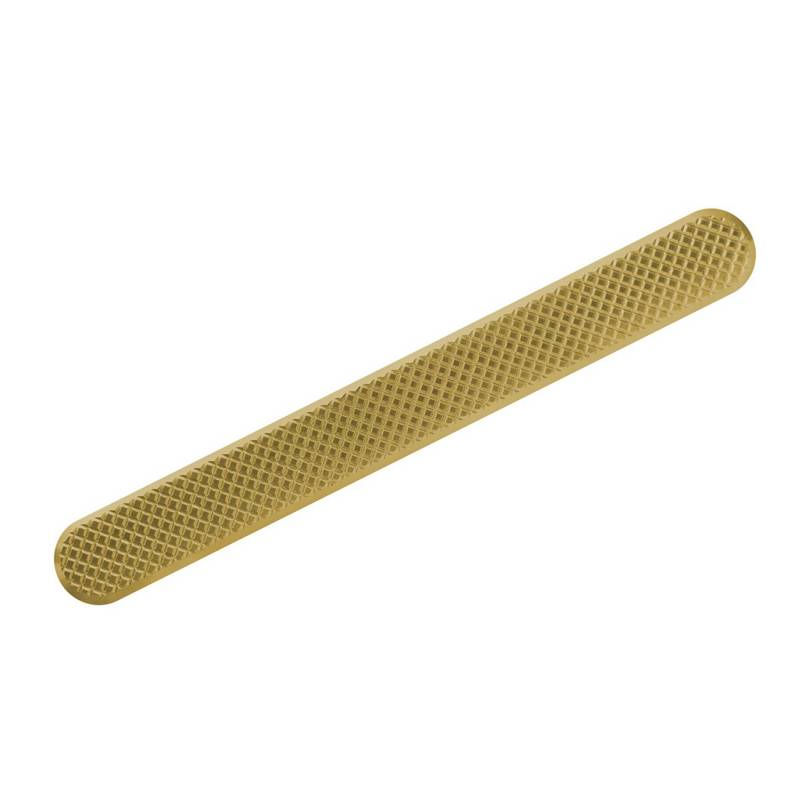

This hatch-textured tactile guiding stud is manufactured from various materials including steel, aluminium, bronze, and brass. It is finished with hatch-shaped grooves on the surface.

At 400 mm in length, 20 mm in width and 6 mm in height, this guiding strip is in line with DETR guidelines, meaning they are suitable for use in guiding the visually impaired in public and private settings.

The tactile guiding strip features bevelled edges, leading up to a unique patterned surface that optimizes grip. The shape of the strip provides ample tactile feedback while remaining unobtrusive to pedestrians.

Alternate sizing is available with the bespoke product service.

Tactile studs with matching patterns are available.

Material options:

• Aluminium.
• 1.4404 (316L) Stainless steel.
• Bronze.
• 1.4307 (304L) Stainless steel.
• Brass.

Fixing pin options:

• Pressed pin.
• Welded pin (for stainless steel strips only).
• Self-adhesive.
• Screw hole.
• No pin.

Finishing options:

• Burnt.
• Bright polish.
• Sandblasted.

Bespoke sizing guide:

• Strip lengths: 200–500 mm.
• Strip widths: 15–25 mm.
• Strip heights: 3–6 mm.
• Fixing pin lengths: 12–80 mm.

Features and benefits:

• DETR compliant.
• Multiple installation options.
