Lifeshield IPS - Integrated Plumbing System
Verified by manufacturer 23 hours ago
Lifeshield IPS - SGL
Lifeshield IPS - SGL

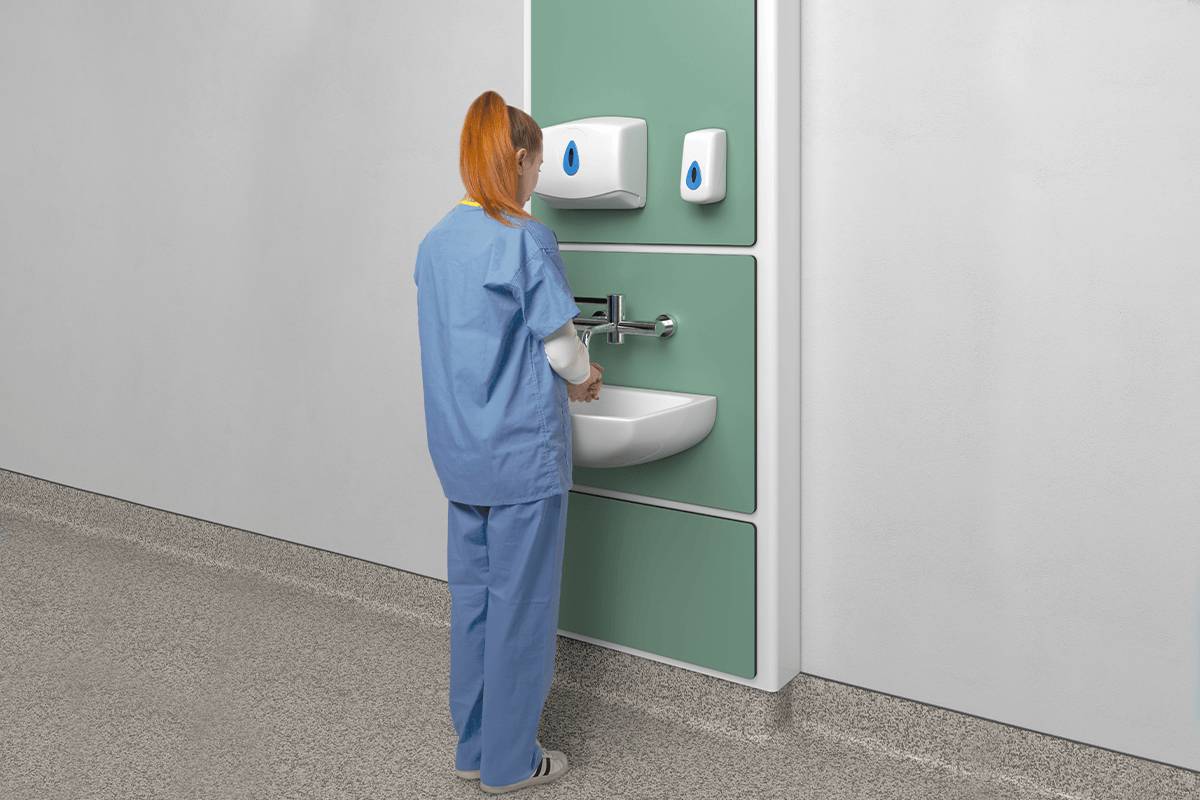

Integrated plumbing system (IPS) for healthcare.
Application
Designed for hospitals, healthcare centres and doctors surgeries.
Description
Integrated plumbing system (IPS) for healthcare, available with solid grade laminate (SGL) or high pressure laminate (HPL) access panels.
Features and benefits:
- Made to order.
- Half-height and full-height designs available - helps to create a bespoke washroom.
- Tough, durable and hygienic.
- Postformed for easy cleaning and dust control.
- Compliant with NHS Estate Guidelines and HTM 63 panel specifications.
- Compliant with DDA (Disability Discrimination Act) requirements.
General information
Color | White Blue Grey Brown Turquoise Manufacturer guidanceSee the Lifeshield brochure for swatches. |
Finish | Laminated Other |
Material | Solid grade laminate (SGL) High pressure laminate (HPL) |
Shape | Other |
Length | Bespoke |
Width | 800 mm Bespoke |
Height | 3000 mm Bespoke |
Uniclass | |
CAWS | K32/140 Duct/ wall linings – panels only K32/15 Duct/ wall lining panels |
Specification data - Duct and wall panel lining systems
Classification data | |
Panels | 700 kg/m³ moisture-resistant medium-density fibreboard (MR MDF), HPL-faced both sides, 20 mm. |
Non-integral finishes | Postformed vertical edges. Bottom edge capped/ lipped in matching laminate. |
Fasteners | Lift-on/ off panel clips. Guidance for specification option: Hidden gravity lift on/ off clips fixed to the edge of the shadow gap panels and reverse of IPS panels. |
Supporting frame | |
Duct panels | By others. |
Wall panels | By others. |
System accessories | Removable access panels - 12 mm SGL. Guidance for specification option: With 25 mm radius corners and profiled all around. |
Dimensions | Finished floor level: Up to 3000 mm. Maximum width: 800 mm. Maximum return: 150 mm. Guidance for specification option: Half-height and full-height panels are available.
Consult manufacturer for details. |
Finish | Royal white U11209. Water blue U18002. Texwood grey F73048. Slate grey U12231. Sangha wenge R50004. Light grey U12188. Lagoon U18505. Grey sonoma oak R20039. Be rooted U16058. Manufacturer guidanceSee the Lifeshield brochure for swatches. |
Shadow gaps | Manufacturer's standard. |
Joint treatment | 25 mm between each panel. Nominal 50 mm on vertical ends, 50 mm at the ceiling and 175 mm FFL. |
Design | Standard. Hinged. Guidance for specification option: Designed for opening IPS duct access panels, either vertically or laterally, while leaving no visible fixings on the face of the panels. Users can access vital plumbing services behind the concealed panels with the use of suction lifters, reducing any risk of damaging the IPS panels. This hinge system is easy to install on site and features an automatic safe catch and secondary safety pin to eliminate the risk of injury to the operator. Manufacturer guidancePanels are also available with a range of options to hold the panel closed or locked for authorised access only. Consult manufacturer for details. |
Plinth | 18 mm MR MDF. Guidance for specification option: Supplied as bare 18 mm MR MDF for vinyl flooring to affix to. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Ireland |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Solid grade laminate (SGL) High pressure laminate (HPL) |
Recyclability | HPL & SGL can only be used as bio-mass. Aluminium Ironmongery can be recycled repeatedly without losing it's quality. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
Expected Life | Ten year |
