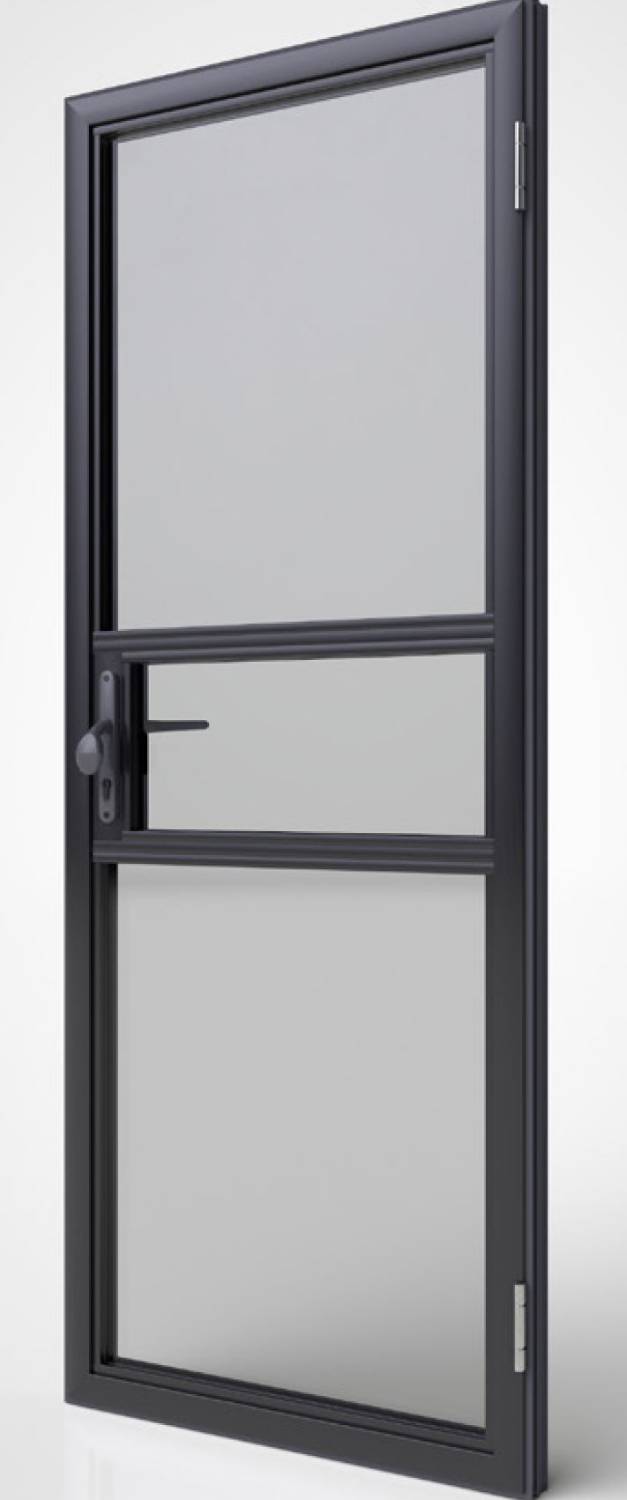

Legacy Slimline Door - Thermally efficient aluminium door
Verified by manufacturer 1 month ago
Single leaf
Single leaf
Thermally efficient polyamide insulation door system.
Application
Residential and commercial applications.
Description
Striking in design, the Slimline Entrance Door takes inspiration from the art deco period, yet feels refreshingly modern thanks to a bespoke multi panel design. The Entrance door is thermally efficient and features a secure espagnolette locking system.
Available in single or double options that open in or out, the Slimline Door adds a unique, retro-inspired element to any traditional or contemporary property.
Features and benefits:
- Ultra slim sightlines provide superior aesthetics, without compromising on performance.
- A choice of simple fabrication methods provide easier and quicker fabrication.
- Superior strength.
- Exceptional weather performance.
- Made from 70% recycled aluminium and 100% recyclable at end of life.
- Compliance with PAS24: 2022 provides additional reassurance to the homeowner in the event of an attempt at burglary.
- U-values as low as 1.6 W/m²K.
- Traditional design styling.
- Double and triple glazed options.
- Maximum leaf area 2.2 m².
- Handle height from bottom of leaf to centre of lever: 989-1039 mm.
General information
Color | Black Other White Grey |
Finish | Mill Powder-coated |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option:
25 year Guidance for specification option:
|
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Aluminium doorsets
Configuration | Single door open outwards.Single door open inwards. |
Doorset size | Guidance for specification option: Consult manufacturer and insert requirements. Size (maximum): - Single door:
|
Performance | |
Strength and durability | Operation and strength tested to BS 6375-2. |
Thermal | U-Value: 1.6 Wm²K.Guidance for specification option: U values as low as 1.6 W/m²K can be achieved using double glazing, easily achieving the current Building Regulations for both new build and refurbishment project. U-Value: 1.5 Wm²K.U-Value: 1.4 Wm²K. |
Intruder resistance | |
Minimum requirement | To PAS 24:2022. |
Frame | |
Material | Extruded aluminium profiles are of aluminium alloy 6063 T5 or T6 and comply with BS EN 12020-2:2001 and BS 755-9:2001. |
Threshold | Rebated threshold.Low threshold. |
Finish | |
Coating | Anodizing to BS EN 12373-1:2001 or BS 3987.Polyester powder coating to BS 6496. |
Installation fasteners | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Frame accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Door leaf | |
Material | Extruded aluminium profiles are of aluminium alloy 6063 T5 or T6 and comply with BS EN 12020-2:2001 and BS 755-9:2001. |
Glazing | |
Type | Double glazed.Manufacturer guidanceGlazing options: single – triple glazed options can be accommodated. Consult manufacturer for details and insert requirements. |
Beading | |
Type | Internal.External. |
Material | Extruded aluminium profiles are of aluminium alloy 6063 T5 or T6 and comply with BS EN 12020-2:2001 and BS 755-9:2001. |
Finish | |
Coating | Anodizing to BS EN 12373-1:2001 or BS 3987.Polyester powder coating to BS 6496. |
Film thickness (minimum) | 60 microns. |
Door accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Hardware | Locking box.Multipoint locking.Lever handles. |
Accessories | Astragal bars.Not required. |
Weight | Maximum leaf weight 70 kg. |
Outer frame | Depth: 54 mm. Depth: 75 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | Aluminium fully recyclable at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
Literature
Slimline Door
Legacy Slimline Door
