Comar 7Pi ECO Doors - Thermally efficient aluminium door

Verified by manufacturer 3 months ago

Single leaf

Comar Architectural Aluminium Systems Variant:
Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

Thermally efficient polyamide insulation door system.

Jump to:
+44 (0)20 8685 9685 Website

Application

Suited to light-commercial, residential or social housing projects.

Description

Thermally efficient aluminium door system.


Features and benefits:

  • Designed to provide high performance with aesthetic qualities.
  • 55 mm slim profiles.
  • Integrates with the Comar 5 Pi ECO casement window system.
  • Offering single or double doors that can open in or open out.
  • Door thresholds, letter plates, surface mounted closers and lever handles can be specified separately.

General information

Color

Black

Grey

White

Other

Guidance for specification option:

RAL colours available on request.

Finish

Anodized

Mill

Powder-coated

Painted

Material

Aluminium

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

  • Aluminium extrusions.
  • Assembly Sealants.
  • Fixing Brackets.
  • Fixing Screws.
  • Inner Gasket.
  • Outer Gasket.
  • Thermal Break.
  • Weatherseals.

30 year

Guidance for specification option:

  • Anodized finish.

25 year

Guidance for specification option:

  • Powder-coated (matt).

Other

Guidance for specification option:

  • Paint joint / seal extrusions - warranty to be agreed.

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Aluminium doorsets

Configuration

Single-leaf, single-action.

Single-leaf, double-action.

Doorset size

Guidance for specification option:

Consult manufacturer and insert requirements.


Size (maximum):

- Single door:

  • Width: 1100 mm.
  • Height: 2400 mm.

Performance

-

Thermal

2.00 W/m²K.

Frame

-

Material

Aluminium.

Finish

-

Coating

Anodized.

Mill.

Powder-coated.

Painted.

Colour

Guidance for specification option:

RAL colours available. Consult manufacturer and insert requirements.

Installation fasteners

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Frame accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Door leaf

-

Material

Aluminium.

Finish

-

Coating

Anodized.

Mill.

Powder-coated.

Painted.

External colour

Guidance for specification option:

Available in RAL colours. Consult manufacturer and insert requirements.

Internal colour

Guidance for specification option:

Available in RAL colours. Consult manufacturer and insert requirements.

Door accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Hardware

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Weight

90 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Aluminium fully recycled at end of life

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

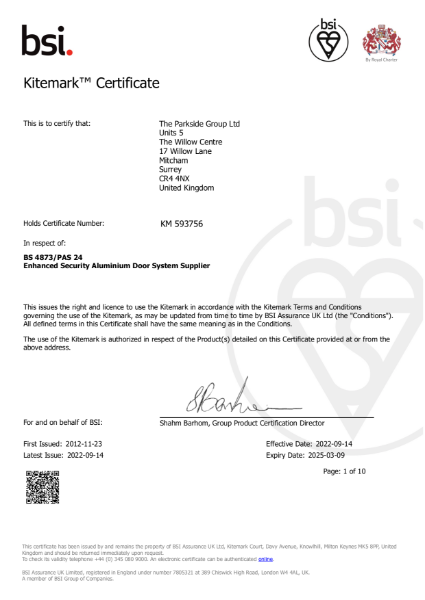

Third party certifications

BSI Kitemark

BSI Kitemark

Kitemark

BSI Kitemark

BSI Kitemark

Kitemark BS4873:2016/PAS 24:2016

Literature

Comar 7Pi Eco Door

Comar 7Pi Eco Door

Comar life expectancies and warranties to BS 7543:2015

Comar life expectancies and warranties to BS 7543:2015
