Application

Suitable for use in all applications requirring aluminium doors.

Description

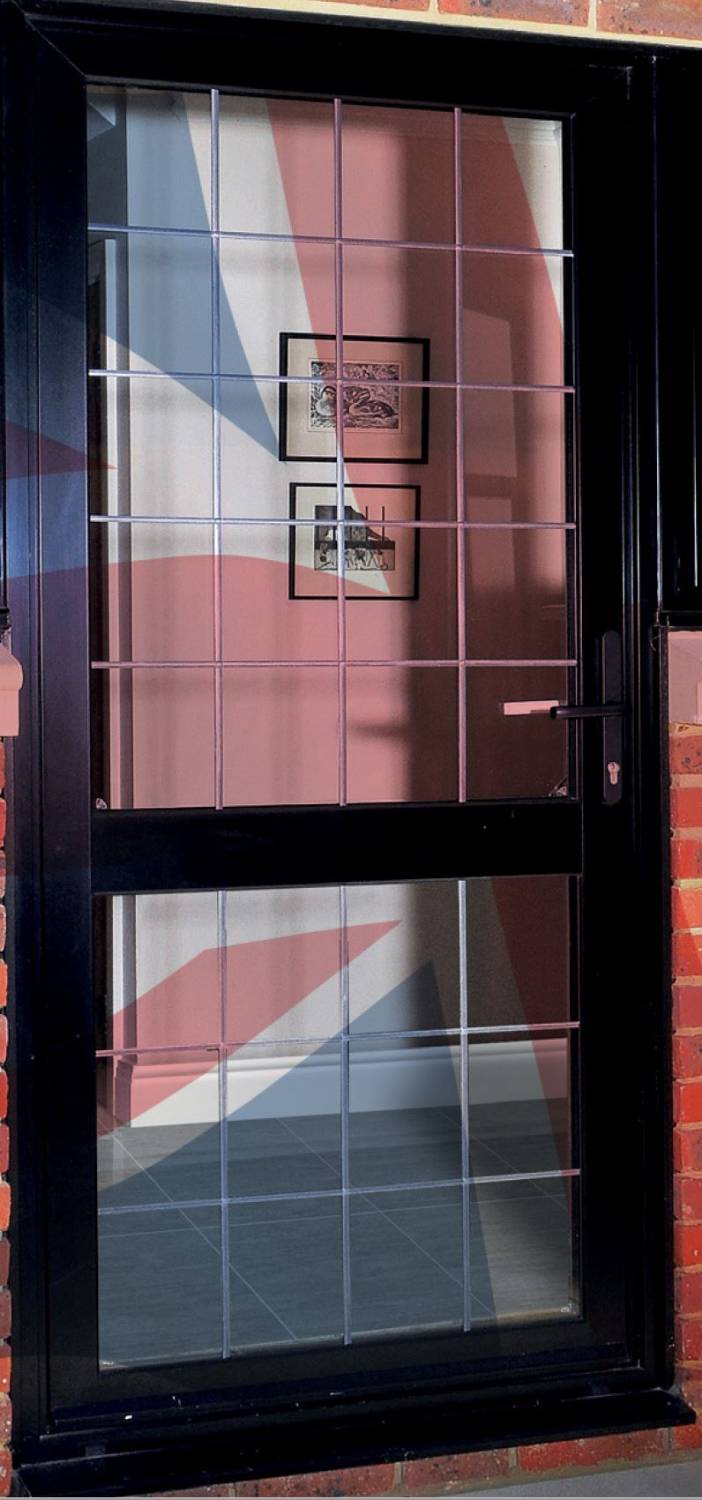

The Comar 7P.i ECO LT aluminium door system has both inward and outward opening options in single or double door combinations. There are two thresholds available; high weather performance and low-rise for seamless balcony terrace integration.

The door has been designed to provide high performance solutions for today’s specification demands. Utilizing Comar’s trademark P.i. (Polyamide Insulation) thermal break technology, it delivers superior thermal performance with an aesthetic edge.


Offering an aesthetically slim 55 mm profile, seamlessly integrating with the Comar 5P.i ECO LT casement window system. It has been tested to BS 6375 which ensures the door performs well against the rigors of the British weather, reducing draughts and providing excellent weather-proofing. Security concerns are alleviated with the door exceeding the requirements of PAS 24: 2022.


Large sizes come as standard from the same range of profiles. With low U-values, energy ratings of A++ and Document Q compliance with Secured by Design status, this is a feature rich system.


Comar ECO LT is a lightweight version of the ECO range, but the aluminium profiles wall thickness has not been sacrificed, ensuring guaranteed long-term performance. Due to Comar’s robust British design the size and weight limitations surpass the competition on a size by size basis.



General information

Color

Silver

Grey

White

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium doorsets

Configuration

Double-leaf, open in.

Double-leaf, open out.

Single-leaf, open in.

Single-leaf, open out.

Doorset size

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Performance

-

Thermal

1.4 W/m2K.

1.5 W/m2K.

1.6 W/m2K.

1.7 W/m2K.

Intruder resistance

-

Minimum requirement

To PAS 24:2022.

Frame

-

Material

Extruded aluminium profiles are of aluminium alloy 6063 T5 or T6 and comply with BS EN 12020-2:2001 and BS 755-9:2001.

Threshold

Rebated threshold.

Low threshold.

Finish

-

Coating

Anodizing to BS EN 12373-1:2001 or BS 3987.

Polyester powder coating to BS 6496.

Door leaf

-

Material

Extruded aluminium profiles are of aluminium alloy 6063 T5 or T6 and comply with BS EN 12020-2:2001 and BS 755-9:2001.

Glazing

-

Type

Double glazed.

Beading

-

Type

Internal.

External.

Material

Extruded aluminium profiles are of aluminium alloy 6063 T5 or T6 and comply with BS EN 12020-2:2001 and BS 755-9:2001.

Finish

-

Coating

Anodizing to BS EN 12373-1:2001 or BS 3987.

Polyester powder coating to BS 6496.

Film thickness (minimum)

60 microns.

Hardware

Lever/ lever handles with multipoint locking.

Fixing features

Click Fit Comar EPDM Cavity Closers.

Guidance for specification option:

Click Fit EPDM Cavity Closers which can be factory fitted.

Comar Adjustable Fix FastPacker and Screw.

Guidance for specification option:

In-direct Fix with a unique range of Comar Lug Fixing Straps which clip ‘n’ twist for fast stable installation.

Comar Lug Fixing StrapClip ‘n’ Twist.

Guidance for specification option:

Comar Adjustable Packer and Screw: This new window fixing allows for adjustment once the aluminium window is in the opening removing the need for

packers and speeds up installation as the screws are tightened with an Allen Key through the frame

Comar Range of Clip on Sills and Aluminium Sills.

Guidance for specification option:

Clip-on or Solid Aluminium sills in a variety of lengths to suit all applications.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

Aluminium 100% recylable at end of life

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Literature

5Pi/ 7Pi Eco LT Data

5Pi/ 7Pi Eco LT Data
