JUTA PD1700
Verified by manufacturer 5 months ago

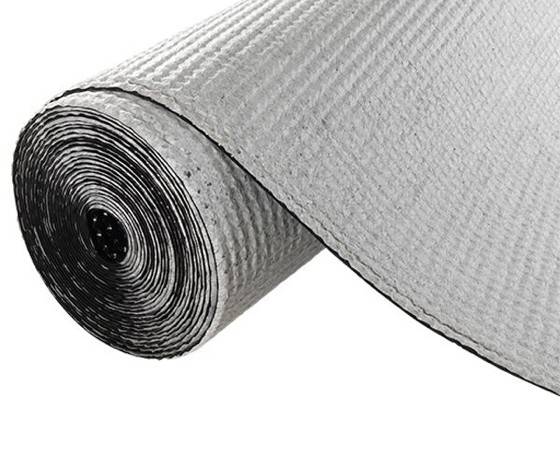

High compressive strength cuspate High Density Polyethylene (HDPE) drainage core with a geotextile filter bonded to one side.
Application
Can be used in combination with GP gas or waterproofing barriers to provide both protection and drainage for external tanking applications.
Description
Combined protection and drainage sheet with geotextile filter bonded to one side.
Designed as a high flow medium to alleviate hydrostatic pressure on below ground structures, as well as providing protection to the underlying membranes (gas/ waterproofing).
Features and benefits:
- Optimized for maximum strength and performance, providing high levels of flow.
- Complies with the latest codes of practice as published by BS, BRE and CIRIA.
- Independently tested and verified by UKAS accredited bodies.
General information
Color | Black Grey |
Material | Polyethylene |
Shape | Other |
Length | 20000 mm |
Width | 2000 mm |
Height | 8 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | J40/35 Loose-laid plastics or rubber gas-retardant membranes J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes J40/145 Loose-laid weldable polyethylene gas-retardant membranes |
Specification data - Plastics sheets
Material | High density polyethylene and geotextile fleece. |
Purpose | Protection layer.Drainage layer. |
Standard | To BS 8102. |
Performance characteristics | |
Tensile strength (minimum) | 12 kN/m. |
Elongation to break | 12%. |
Form | Drainage core with geotextile bonded to either side. |
Physical properties | |
Colour | Black and Grey. |
Weight (minimum) | 620 g/m². |
Dimensions | |
Thickness (minimum) | 8 mm. |
Width (minimum) | 2 m. |
Roll length (minimum) | 20 m. |
Recycled content | 0%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Fully Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 2 |
Literature
JUTA PD 1700
