JUTA GP®4 Radon Resistant DPM
Verified by manufacturer 5 months ago
BBA Agrément Certificate
Certificate type
EPD
Certificate type
JUTA GP®4 DPM - Multi-layer, low-density polyethylene membrane, reinforced with polypropylene.
Application
Suitable for use as a radon, air and moisture protection membrane.
Description
Multi-layer, low-density polyethylene membrane, reinforced with polypropylene.
Features and benefits:
- Manufactured to perform as a Radon, air and moisture protection system.
- Provides a low-level protection to Carbon Dioxide and Methane.
- BBA certified.
General information
Color | Beige |
Finish | Smooth |
Material | Polyethylene |
Shape | Rectangle |
Length | 33000 mm |
Width | 3000 mm |
Height | 0.6 mm |
Warranty description | 60 year Guidance for specification option: Minimum. |
Uniclass | |
CAWS | J40/145 Loose-laid weldable polyethylene gas-retardant membranes J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes D21/350 Gas-retardant membrane |
Specification data - Plastics sheets
Material | Polyethylene. |
Purpose | Gas retardance.Damp-proof membrane. |
Standard | To BS EN 13967.Guidance for specification option: Also to BRE BR211. |
Third-party certification | British Board of Agrément (BBA) certificate 20/5728; CE Mark - EN 13967.Guidance for specification option: Certificate No. 20/5728 (P5). |
Performance characteristics | |
Tensile strength (minimum) | 570 N/50mm. |
Tear resistance | 500 N. |
Elongation to break | 15%. |
Resistant to underground gases | Radon diffusion coefficient: 8.0 x 10(-12). |
Recycled content | None – virgin material. |
Form | Low density polyethylene membrane with reinforcing grid. |
Physical properties | |
Colour | Beige. |
Weight (minimum) | 400 g/m². |
Dimensions | |
Thickness (minimum) | 0.6 mm. |
Width (minimum) | 3 m. |
Roll length (minimum) | 33 m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Czechia |
Country of product manufacture | Czechia |
Material | Polyethylene |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.41 kg CO₂ eq/m² |
Recyclability | Fully Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
Third party certifications
BBA Agrément Certificate

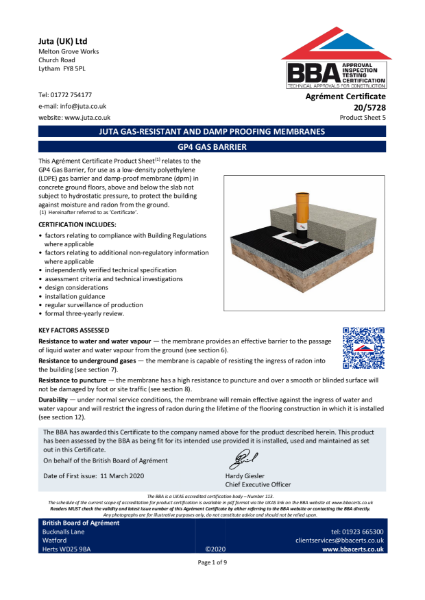

BBA Certificate JUTA GP4 Gas Barrier 20/5728 - Product Sheet 5
EPD
JUTAVAP - JUTAFOL EPD
Literature

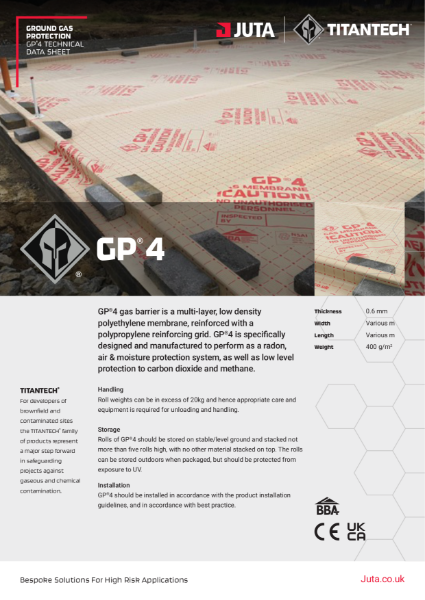

JUTA GP4 Radon Resistant DPM - Technical Datasheet

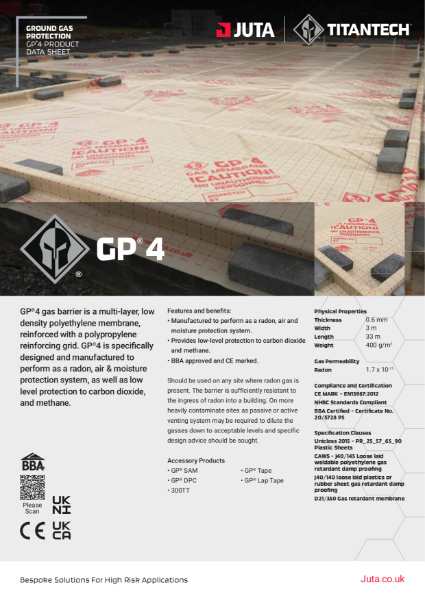

JUTA GP4 DPM - Product Datasheet
