JUTA GP® Titanbond
Verified by manufacturer 5 months ago
BBA Agrément Certificate
Certificate type
Fully bonded ground gas, VOC and waterproofing membrane.
Application
Suitable for the gas proofing, waterproofing, and tanking of underground structures where harmful ground gases are anticipated.
Description
Pre-applied fully bonded waterproofing membrane incorporating the GP® TITANFLEX membrane and a heavy-duty virgin polypropylene geotextile. The geotextile is laminated to the membrane to provide a dual function; protecting the membrane from damage and providing an integrated ‘bond’ to poured concrete, ensuring a fully bonded waterproofing barrier.
Features and benefits
- High resistance to ground gas and VOCs.
- Quick and easy installation.
- Can be a fully welded system.
- Good chemical resistance.
- Compatible with all building materials.
- Long term durability - performance is guaranteed for the lifetime of the building.
- Complies with the latest codes of practice as published by CIRIA (C748) and BSI (BS 8485 and BS 8102).
General information
Color | Black Grey Guidance for specification option: Silver. |
Finish | Smooth |
Material | Polyethylene |
Shape | Rectangle Other |
Length | 25000 mm |
Width | 1900 mm |
Height | 2 mm |
Warranty description | 120 year |
Uniclass | |
CAWS | J40/35 Loose-laid plastics or rubber gas-retardant membranes J40/30 Loose-laid plastics or rubber sheet oversite damp-proofing J40/20 Loose-laid plastics or rubber sheet damp-proofing J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes J40/145 Loose-laid weldable polyethylene gas-retardant membranes J40/130 Loose-laid plastics or rubber sheet oversite damp-proofing J40/120 Loose-laid plastics or rubber sheet damp-proofing |
Product range |
Specification data - Plastics sheets
Material | Multi layer Polyethylene. |
Purpose | Gas/ waterproofing/ tanking of underground structures. |
Standard | To BS EN 13967. |
Performance characteristics | |
Tensile strength (minimum) | >550 N/ 50 mm. |
Tear resistance | >300 N. |
Elongation to break | >550%. |
Resistant to underground gases | Methane - 0.13 ml/m²/day atm, Carbon Dioxide - 3.01 ml/m²/day/atm, Radon - 1.0 x 10(-12), Vinyl Chloride - 0.04 ml/m²/day/atm |
Water vapour resistance (minimum) | 0.11 g/m²/day. |
Fire performance | To EN 13501-1, Class E. |
Third-party certification | British Board of Agrément (BBA) Certificate.Guidance for specification option: BBA Certificate 18/5581 CE marked to EN 13967. |
Form | Twin ply. |
Physical properties | |
Colour | Black and Silver. |
Weight (minimum) | 650 g/m². |
Dimensions | |
Thickness (minimum) | 2 mm. |
Width (minimum) | 1.9 m. |
Roll length (minimum) | 25 m. |
Recycled content | 0%.Guidance for specification option: None – virgin material. |
Product Reference | JUTA GP Titanbond |
Sustainability data
Contains Red List materials | No |
Country of material origin | Czechia |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 2.00 kg CO₂ eq/kg Self declared |
Recyclability | Fully Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
Third party certifications
BBA Agrément Certificate

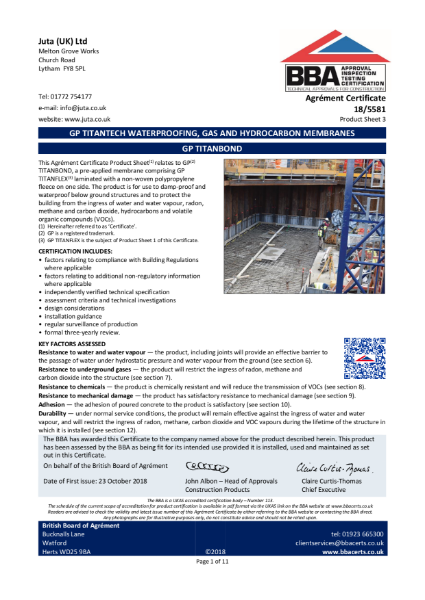

BBA Certificate JUTA GP Titanbond 18/5581 - Product Sheet 3
Literature

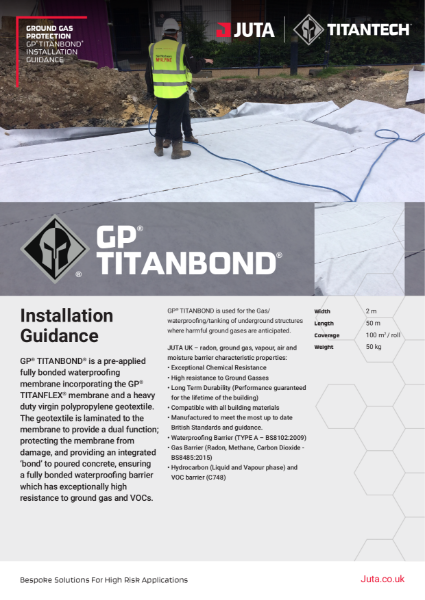

JUTA GP® Titanbond - Installation Guidance

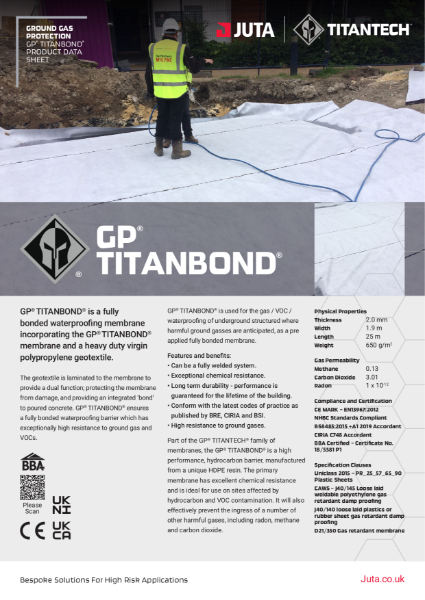

JUTA GP® Titanbond - Product Datasheet
JUTA GP® Titanbond - Technical Datasheet
Case studies
Maggie's Yorkshire - Cancer Care Centre
