IZOPERM PLUS ECO – Paper-Based Sustainable Vapour Control Layer

Verified by manufacturer 2 months ago

PARTEL Third party certifications:
  • DoP

    DoP

    Certificate type

A paper-based, sustainable airtight vapour control layer for internal applications. UKCA approved. CE approved.

Jump to:
+44 20 3740 1918 Website

Application

Partel IZOPERM PLUS ECO can be used as an inner airtight membrane and vapour control layer. Primary usage includes internal walls, ceilings, and floors. The Partel ECO membranes supports a safe, eco-responsible building design for lower environmental impact.


Suitable for:

  • Timber frame structures.
  • Blown wool insulations or solutions.
  • New builds and refurbishments.
  • Residential and commercial developments.

Description

IZOPERM PLUS ECO is an internal sustainable vapour control layer (VCL) that consists of 60% renewable FSC paper. It is a three layer membrane with FSC kraft paper on both sides, reducing the carbon footprint.


Features and benefits:

  • Designed to be used as a vapour control layer, featuring fixed Sd value.
  • Watertight – W1 class for superior moisture protection.
  • High tear-resistance and optimum strength due to fabric mesh reinforcement.
  • ECO membrane – compliant with the latest building standards to meet energy efficiency and sustainability performances for reduced carbon emissions.
  • Optimal airtightness and water vapour transmission rate in different climate conditions.
  • Ecolabel Emicode EC1 PLUS – meets the strict requirements of GEV construction.

General information

Color

Beige

Material

Paper

Guidance for specification option:

Kraft paper.

Shape

Rectangle

Length

50000 mm

Width

1500 mm

Warranty description

Ten year

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

CAWS

K20/150 Battened timber board floating floor

K20/20 Battened timber board floating floor

K21/20 Composite laminated flooring

K21/10 Wood laminate flooring

K11/25 Particleboard floating floor

K11/20 Battened particleboard floating floor

P10/60 Air and vapour control layer

K11/15 Battened plywood floating floor

K21/146 Laminate flooring

K21/145 Composite laminate flooring

K21/140 Battened wood laminate flooring

K21/130 Battened wood floating floor

K21/115 Wood laminate flooring

K21/111 Wood floating floor

K21/110 Wood flooring

K11/795 Wall lining on metal framing

K11/245 Cement bonded particleboard floating floor

K11/235 Oriented strand board floating floor

K11/225 Particleboard floating floor

K11/215 Plywood floating floor

K11/135 Battened oriented strand board floating floor

K11/125 Battened particleboard floating floor

K11/115 Battened plywood floating floor

K10/155 Wall lining system (metal studs)

P10/310 Air and vapour control layer

K11/145 Battened cement-bonded particleboard floating floor

K11/22 Plywood floating floor

K21/120 Battened wood flooring

Specification data - Vapour-permeable sheets

Standard

To EN 13984:2013.

Performance criteria

-

Fire performance

Reaction to fire: To BS EN 13501-1, Class F.

Tensile properties

To EN 12311-1, (MD) 450 N/50mm; (CD) 300 N/50mm.

Class (minimum)

W1.

Environmental performance requirements

-

Environmental rating

Energy rating A+.

Recycled content

60%.

Material

FSC kraft paper.

Form

Single-ply.

Weight (minimum)

To EN 1849-2, 140 g/m².

Elongation

To EN 12311-1, (MD) 3%; (CD) 4.5%.

Sd value

To EN 1931, 20 m.

SolarTransmittance

100 MNs/g.

Vapour Permeability

To ASTM E96, 0.17.

Tear resistance

To EN 12310-1, (MD/CD) 130 N.

Manufacturer guidance

Nail tear resistance.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Paper

Guidance for specification option:

Kraft paper.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Expected Life

Lifetime

Third party certifications

DoP

DoP

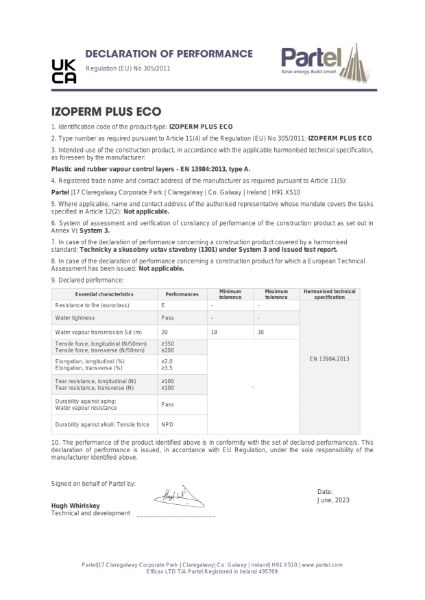

IZOPERM PLUS ECO DoP

Literature

Izoperm Eco Plus Data Sheet

Izoperm Eco Plus Data Sheet
