Intelivent Roof Units
Verified by manufacturer 4 months ago
Intelivent™ Penthouse Turret
Intelivent™ Penthouse Turret

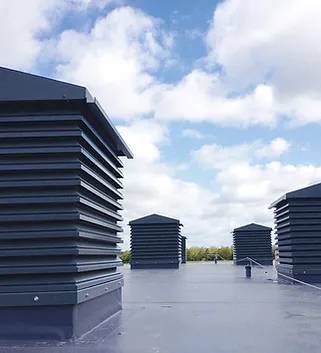

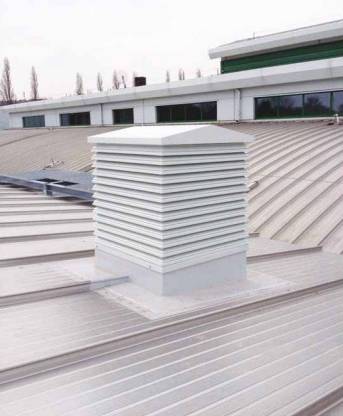

Roof mounted natural ventilation units.
Application
Natural ventilation is a popular method of ventilating offices, restaurants and educational facilities, and is particularly effective in open spaces that have a high occupancy, such as warehouses, distribution centres, gymnasiums, sports halls, assembly areas and supermarkets.
Description
Intelivent roof mounted natural ventilation units provide sustainable natural ventilation, significantly reducing energy consumption compared to traditional mechanical ventilation methods.
Penthouse turrets are designed to offer a balanced supply of fresh air whilst also having the ability to remove warm stale air. The effective supply of fresh air is due to the internal split design within the turret unit and duct extension sleeve; the supply and extract air are kept separate avoiding cross contamination.
Roof cowls provide either low or high level ventilation in buildings and roof spaces preventing and eliminating the build up of condensation and stale air. Roof cowls can be manufactured to maximise aesthetic features of roofs by mounting low profile and discreet units hidden from view.
Features and benefits:
- The units can be controlled by CO₂ emissions, temperature sensors or manual override.
- Tamper proof fixings and user friendly design to help prevent wilful damage.
- Can be made to suit any required size.
- Controlled airflow via volume control dampers.
- Prevents and eliminating the build up of condensation and stale air.
- Utilise wind power to generate costs savings.
- Roof cowls provide excellent weather protection ensuring low pressure drops.
- Controlled winter and summer ventilation.
- Manufactured in Britain.
General information
Color | Other |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/47 Roof ventilators L10/490 Roof ventilators |
Specification data - Roof ventilator unit
Arrangement | Monopitch-mounted.Flat roof mounted. |
Ventilator type | Rectangular. |
Shape | Duo-pitched.Guidance for specification option: Central apex roof as standard Hipped.Manufacturer guidanceTurret roof fabricated from 2.0 mm aluminium supplied in sections where over sized. |
Size | Guidance for specification option: Insert requirements. |
Outer facing | Aluminium. |
External finish | Polyester powder-coated. |
Colour | Guidance for specification option: Standard colours from BS 4800 or RAL range available. Insert requirements. |
Operation | |
Type | Electrically powered. |
Ceiling terminals | Eggcrate.Guidance for specification option:
|
Accessories | None.Insect mesh.Bird mesh - ½ x ½" galvanized steel.Bird mesh - ½ x ½" stainless steel.Internal splitters. |
Damper | Ultra low leakage insulated damper supplied with actuator (DL533+3M). Guidance for specification option:
|
Louvres | 70 mm pitch, 45° angle, extruded aluminium. Guidance for specification option:
|
Integral accessories | Upstand/damper connection sleeve, grille connection sleeve, galvanized drop duct from turret stand, turret skirt. |
Controls | Siemens Climatix Controllers, interface units and wall-mounted sensors and room operator units. Guidance for specification option: Consult manufacturer's literature for details and options. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | The global Recycling Efficiency Rate (RER) of aluminium is currently 76% |
Literature
Intelivent Brochure
