Intelivent Roof Units
Intelivent Roof Units

Verified 7 months ago

GDL Air Systems Ltd

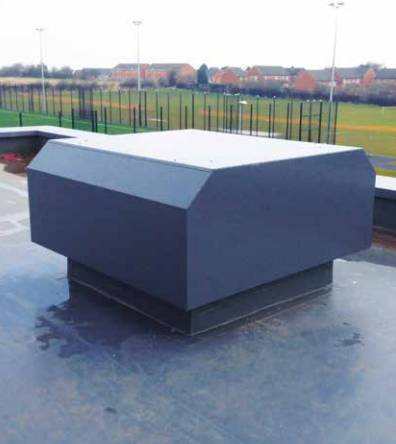

Intelivent™ Penthouse Turret

Verified 7 months ago

GDL Air Systems Ltd

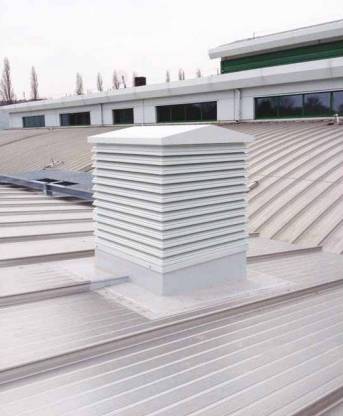

Intelivent™ Roof Cowls

Summary
Roof mounted natural ventilation units.
Roof mounted natural ventilation units.
Application

Natural ventilation is a popular method of ventilating offices, restaurants and educational facilities, and is particularly effective in open spaces that have a high occupancy, such as warehouses, distribution centres, gymnasiums, sports halls, assembly areas and supermarkets.

Natural ventilation is a popular method of ventilating offices, restaurants and educational facilities, and is particularly effective in open spaces that have a high occupancy, such as warehouses, distribution centres, gymnasiums, sports halls, assembly areas and supermarkets.

Description

Intelivent roof mounted natural ventilation units provide sustainable natural ventilation, significantly reducing energy consumption compared to traditional mechanical ventilation methods.


Penthouse turrets are designed to offer a balanced supply of fresh air whilst also having the ability to remove warm stale air. The effective supply of fresh air is due to the internal split design within the turret unit and duct extension sleeve; the supply and extract air are kept separate avoiding cross contamination.


Roof cowls provide either low or high level ventilation in buildings and roof spaces preventing and eliminating the build up of condensation and stale air. Roof cowls can be manufactured to maximise aesthetic features of roofs by mounting low profile and discreet units hidden from view.


Features and benefits:

  • The units can be controlled by CO₂ emissions, temperature sensors or manual override.
  • Tamper proof fixings and user friendly design to help prevent wilful damage.
  • Can be made to suit any required size.
  • Controlled airflow via volume control dampers.
  • Prevents and eliminating the build up of condensation and stale air.
  • Utilise wind power to generate costs savings.
  • Roof cowls provide excellent weather protection ensuring low pressure drops.
  • Controlled winter and summer ventilation.
  • Manufactured in Britain.

Intelivent roof mounted natural ventilation units provide sustainable natural ventilation, significantly reducing energy consumption compared to traditional mechanical ventilation methods.


Penthouse turrets are designed to offer a balanced supply of fresh air whilst also having the ability to remove warm stale air. The effective supply of fresh air is due to the internal split design within the turret unit and duct extension sleeve; the supply and extract air are kept separate avoiding cross contamination.


Roof cowls provide either low or high level ventilation in buildings and roof spaces preventing and eliminating the build up of condensation and stale air. Roof cowls can be manufactured to maximise aesthetic features of roofs by mounting low profile and discreet units hidden from view.


Features and benefits:

  • The units can be controlled by CO₂ emissions, temperature sensors or manual override.
  • Tamper proof fixings and user friendly design to help prevent wilful damage.
  • Can be made to suit any required size.
  • Controlled airflow via volume control dampers.
  • Prevents and eliminating the build up of condensation and stale air.
  • Utilise wind power to generate costs savings.
  • Roof cowls provide excellent weather protection ensuring low pressure drops.
  • Controlled winter and summer ventilation.
  • Manufactured in Britain.
Color
Other
Other
Finish
Powder-coated
Powder-coated
Material
Aluminium
Aluminium
Shape
Rectangle, Square
Rectangle, Square
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
Ten year
Ten year

Specification

Classification data
Arrangement
Monopitch-mounted., Flat roof mounted.
Monopitch-mounted., Flat roof mounted.
Ventilator type
Rectangular.
Rectangular.
Shape
Duo-pitched., Hipped.
Terminal.
Size
-
-
Outer facing
Aluminium.
Aluminium – insulated.
External finish
Polyester powder-coated.
Polyester powder-coated.
Colour
-
-
Operation
-
-
Type
Electrically powered.
Electrically powered.
Ceiling terminals
Eggcrate.
Internal ceiling mounted grille.
Accessories
None., Insect mesh., Bird mesh - ½ x ½" galvanized steel., Bird mesh - ½ x ½" stainless steel., Internal splitters.
None., Insect mesh., Bird mesh - ½ x ½" galvanized steel., Bird mesh - ½ x ½" stainless steel.

Additional properties

Damper
Ultra low leakage insulated damper supplied with actuator (DL533+3M).
Low leakage insulated damper.
Louvres
70 mm pitch, 45° angle, extruded aluminium.
-
Integral accessories
Upstand/damper connection sleeve, grille connection sleeve, galvanized drop duct from turret stand, turret skirt.
Upstand/damper connection sleeve, grille connection sleeve, galvanized drop duct.
Controls
Siemens Climatix Controllers, interface units and wall-mounted sensors and room operator units.
Siemens Climatix Controllers, interface units and wall-mounted sensors and room operator units.

Sustainability data

Country of product manufacture
United Kingdom
United Kingdom
Recyclability
The global Recycling Efficiency Rate (RER) of aluminium is currently 76%
The global Recycling Efficiency Rate (RER) of aluminium is currently 76%
