HSE 75 Series (Aluminium) Single Cover
Verified by manufacturer 1 month ago
Aluminium, hinged floor access covers for cars and light delivery vehicles up to 5 tonne pneumatic tyre wheel load.
Application
Suitable for interior and exterior floors.
Description
Hinged, aluminium medium duty floor access cover for up to 5000 kg pneumatic tyre wheel loads (cars and light delivery vehicles).
Features and benefits:
- Covers can be fitted quickly and unobtrusively into all types of hard floor finish: ceramic tiles, marble, terrazzo, concrete, resin, wood or parquet.
- Unique patented cover sections are tapered for easy removal, frame sections give a good key to bedding mortar.
- Covers are precision-made to avoid distortion.
- Top edge seal on aluminium covers helps prevent dirt, grout or grinding waste penetrating joint between cover and frame.
- Double seals available.
- Lifting blocks are anchored to the inner frame. Stainless steel securing bolts are stiletto heel proof.
- Easy to install ensuring minimum disruption.
- Manufactured in accordance with BS EN ISO 9001.
- Required opening force (when filled): 20 kg.
General information
Color | Silver |
Finish | Guidance for specification option: Hard floor finishes. |
Material | Aluminium |
Shape | Rectangle |
Length | 1133 mm |
Width | 1120 mm |
Height | 75 mm |
Uniclass | |
CAWS | P30/301 Access covers, manhole tops and frames P31/370 Access covers/ gratings R12/471 Access covers and frames |
Specification data - Access covers, gratings and frames
Standards | To BS EN ISO 9001. |
Configuration | Single cover. |
Finish | Galvanized steel.Powder coated carbon steel. |
Clear opening (minimum) | 550 mm.Guidance for specification option: (Min-Max sizes) 550—1000 mm. |
Integral accessories | None.Underside release latch.Sets of combined lifting/ securing keys. |
Base plate | Galvanized steel. Guidance for specification option: Standard. Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). |
Gas springs | Carbon steel, powder coated. Guidance for specification option: Standard. Stainless steel, grade 1.4401 (316). |
FireRating | None. Three hours. Guidance for specification option: To BS 476-20. |
Materials | Guidance for specification option: Show edge manufactured from aluminium with steel baseplate and reinforcement. |
Depth | 75 mm. |
Hinges | Guidance for specification option: Access covers fitted with multi-link hinges. |
Sealing | Double sealed with socket head securing bolts. |
FrameSize | Guidance for specification option: Clear opening (hinge side) plus 120 mm x clear opening (front to back) plus 133 mm. |
Sustainability data
Material | Aluminium |
Literature
HSE 75 Series Hinged Floor Access Cover

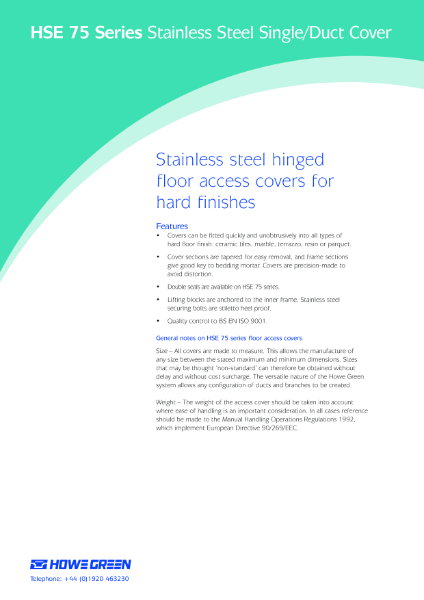

HSE 75 Series Hinged Floor Access Cover - Technical Data Sheet
