5000 Series (Aluminium) Single Cover
Verified by manufacturer 1 month ago
Aluminium light duty floor access cover for pedestrian traffic, wheeled trolleys, sack trucks, etc.
Application
Suitable for interior and exterior floors with pedestrian traffic.
Description
Aluminium, single cover, floor access covers for pedestrian traffic (including wheeled trolleys, sack trucks, etc.) on hard floor surfaces. Includes inset lifting points as standard.
Features and benefits:
- Covers can be fitted quickly and unobtrusively into all types of hard floor finish: ceramic tiles, marble, terrazzo, concrete, resin, wood or parquet.
- Unique patented cover sections are tapered for easy removal, frame sections give a good key to bedding mortar.
- Covers are precision-made to avoid distortion.
- Top edge seal on aluminium covers helps prevent dirt, grout or grinding waste penetrating joint between cover and frame.
- Double seals available.
- Lifting blocks are anchored to the inner frame. Stainless steel securing bolts are stiletto heel proof.
- Aluminium, brass or coloured high impact PVC show edge is continuously secured; there are no fasteners to rust or break.
- Provides easy access to under floor services using lifting keys.
- Quick to install ensuring minimum disruption.
- Manufactured in accordance with BS EN ISO 9001.
- Weight (when filled): 90 kg/m².
General information
Color | Black Silver Green Grey White |
Finish | Galvanized |
Material | Aluminium |
Shape | Square |
Length | 150 mm Guidance for specification option: Min. 750 mm Guidance for specification option: Max. |
Width | 150 mm Guidance for specification option: Min. 750 mm Guidance for specification option: Max. |
Height | 50 mm |
Uniclass | |
CAWS | P30/301 Access covers, manhole tops and frames P31/370 Access covers/ gratings R12/471 Access covers and frames |
Specification data - Access covers, gratings and frames
Standards | To BS EN ISO 9001. |
Configuration | Single cover. |
Finish | Aluminium. |
Clear opening (minimum) | 150 x 150 mm.Guidance for specification option: Clear opening: Single: 150 min – 750 mm max. Overall frame size: Clear opening + 120 mm. Insert requirement. |
Frame or support | Aluminium cover and frame with steel baseplate and reinforcement.Guidance for specification option: Galvanized carbon steel support beams and pockets (where necessary). |
Integral accessories | None.Recessed support beam pockets.Sets of combined lifting/ securing keys.Cover skate lifting device.Surface mounted support beam pockets. |
Base plate | Galvanized steel. Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). |
Show edge | Aluminium. Guidance for specification option: Standard, matching lifting blocks. Brass. Guidance for specification option: Matching lifting blocks. Colouredge high impact PVC, Black. Guidance for specification option: Aluminium matching lifting blocks. Colouredge high impact PVC, Forest green. Guidance for specification option: Aluminium matching lifting blocks. Colouredge high impact PVC, Sandstone. Guidance for specification option: Aluminium matching lifting blocks. |
Sealing | Double sealed with socket head securing bolts. Unsealed with blanking bolts. |
FireRating | None. One hour. Guidance for specification option: To BS 476-20. |
Depth | 50 mm. |
Sustainability data
Material | Aluminium |
Literature
5000 Series Light-Duty Floor Access Cover

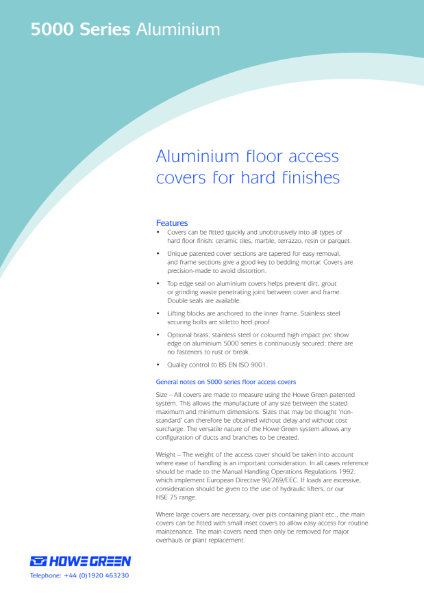

5000 Series Light-Duty Aluminium Floor Access Cover Technical Data Sheet
