5000 Series (Stainless Steel) Duct
Verified by manufacturer 1 month ago
Stainless steel light duty floor access covers for pedestrian traffic, wheeled trolleys, sack trucks, etc.
Application
Suitable for light duty floors with pedestrian traffic.
Description
Stainless steel, duct run floor access covers for pedestrian traffic (including wheeled trolleys, sack trucks, etc.) on hard floor surfaces.
Features and benefits:
- Covers can be fitted quickly and unobtrusively into all types of hard floor finish: ceramic tiles, marble, terrazzo, resin or parquet.
- Cover sections are tapered for easy removal and are precision-made to avoid distortion.
- Double seals available.
- Lifting blocks are anchored to the inner frame. Stainless steel securing bolts are stiletto heel proof.
- Manufactured in accordance with BS EN ISO 9001.
- Weight (when filled): 90 kg/m².
General information
Color | Black Silver Green Grey White |
Finish | Galvanized |
Material | Stainless steel |
Shape | Square |
Uniclass | |
CAWS | P30/301 Access covers, manhole tops and frames P31/370 Access covers/ gratings R12/471 Access covers and frames |
Specification data - Access covers, gratings and frames
Standards | To BS EN ISO 9001. |
Configuration | Duct run floor. |
Finish | Galvanized steel. |
Clear opening (minimum) | 100 mm.Guidance for specification option: Overall frame size = clear opening + 130 mm. Clear opening: Duct: 100—600 mm (min-max). |
Frame or support | Show edge manufactured from stainless steel with a steel baseplate and reinforcement.Guidance for specification option: Galvanized carbon steel support beams and pockets. |
Integral accessories | None.Recessed support beam pockets.Surface mounted support beam pockets.Lifting points.Guidance for specification option: Barrel only or Inset options available. Sets of combined lifting/ securing keys.Cover skate lifting device. |
Product Reference | 5000 Series (Stainless Steel) Duct |
Cover and frame | Stainless steel, grade 1.4301 (304). Guidance for specification option: Standard. Stainless steel, grade 1.4401 (316). |
Base plate | Galvanized steel. Guidance for specification option: Standard. Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). |
Sealing | Double sealed with socket head securing bolts. Unsealed with blanking bolts. |
Depth | 50 mm. |
Sustainability data
Material | Stainless steel |
Literature
5000 Series Light-Duty Floor Access Cover

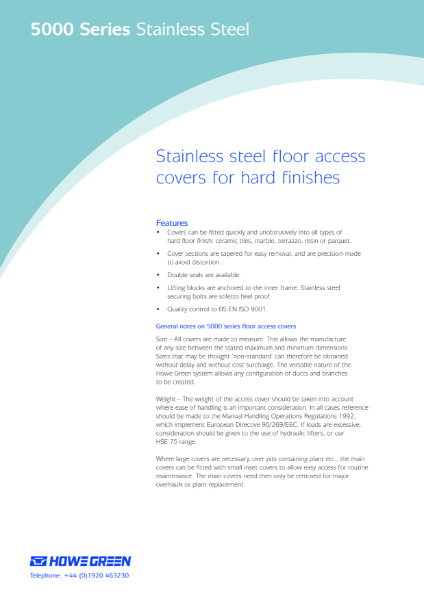

5000 Series Light-Duty Stainless Steel Floor Access Cover Technical Data Sheet
