Hinged Support Rail - 700/850mm - Grab Bar - PLAN CARE - Grab bar
Verified by manufacturer 6 days ago
34903010737
34903010737

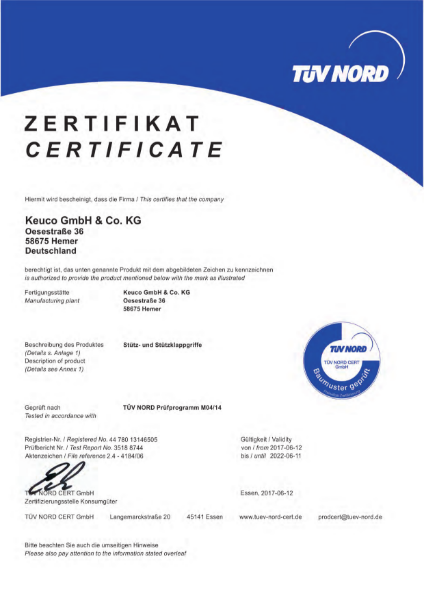

TUV - Safety and Quality Report
Certificate type
With synthetic covered support and removable toilet paper holder, movable to vertical position.
Application
For installation in bathrooms and WC areas of public or private facilities.
Description

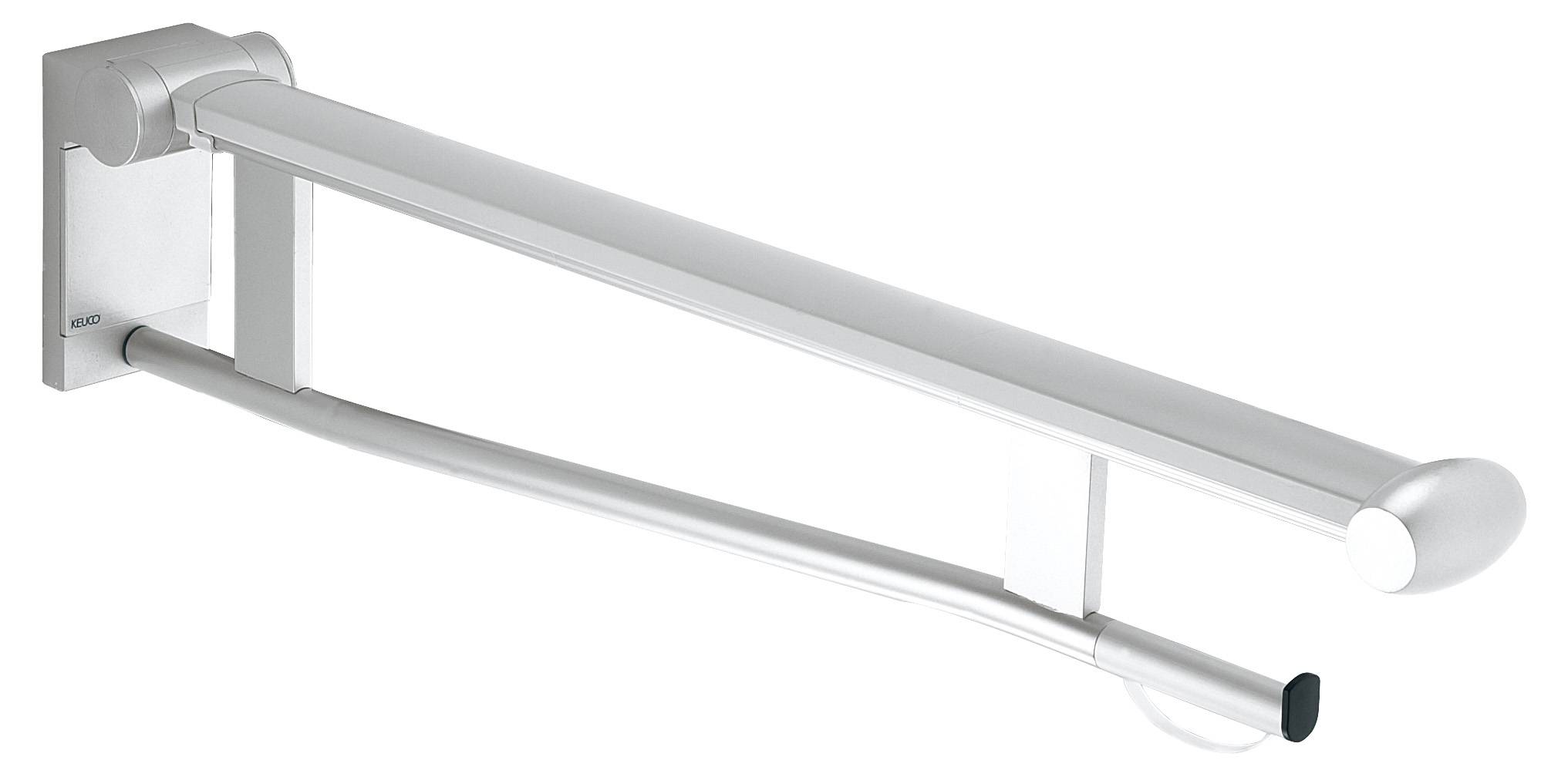

Plan Care drop down supporting rail with synthetic covered support and removable toilet paper holder (with roll brake), movable to vertical position. Keuco premium materials and workmanship make the grab bars and rails safe and lasting companions, even in demanding conditions.
Features and benefits:
- Pivoted supporting rail for WC, available in high-shine chrome-plated and aluminium silver anodized finishes.
- Anti-static and anti-slip, plastic covered support on surface area; available in light grey, dark grey or white.
- Aesthetic, practical and ergonomic design.
- Movable to a vertical, braked position.
- Elegant, tactile and optical contrasting handle.
- Underside rail is useable as a hand towel holder.
- Removable toilet paper holder (with roll brake).
- Load capacity up to 115 kg.
- The handle is Type approved.
General information
Color | Silver Guidance for specification option: Chrome, Silver anodized. |
Finish | Chrome Guidance for specification option: Chrome plated. Anodized Guidance for specification option: Aluminium silver anodized. |
Material | Brass Guidance for specification option: CW508L. |
Shape | Other |

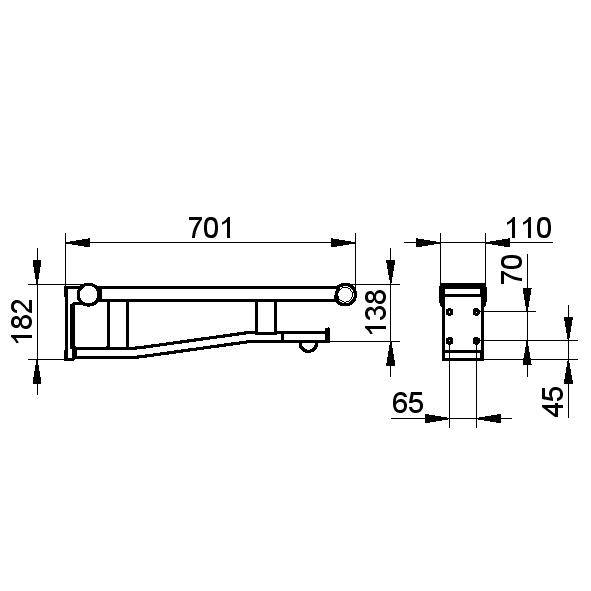

Length | 701 mm 805 mm |
Width | 110 mm |
Height | 182 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/436 Handrails and grab bars T90/470 Towel rails N13/69 Support rails and grab bars N13/466 Towel rails |
Product range |
Specification data - Support rails
Form | Hinged.Guidance for specification option: Movable to vertical position, braked version. |
Materials | |
Body | Manufacturer's standard. |
Finish and colour | Chrome-plated/ dark grey (RAL 7021). |
Integral accessories | Toilet paper holder. |
Width | 110 mm. |
Height | 182 mm. |
Depth | 701 mm. |
Load capacity | 115 kg. |
Mounting | 2 x mounting-set 2. Guidance for specification option: (item no. 34991000100.) 2 x mounting-set 5. Guidance for specification option: (item no. 34991000200.) 2 x mounting-set 8. Guidance for specification option: (item no. 34994000200.) 1 x mounting-set 10. Guidance for specification option: (item no. 34996000100.) Manufacturer guidanceIt’s essential for installation to order the correct screws/ bolts depending on type of wall. Consult with manufacturer for more details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Brass Guidance for specification option: CW508L. |
Third party certifications
Literature
KEUCO Barrier-free Bathrooms
Case studies

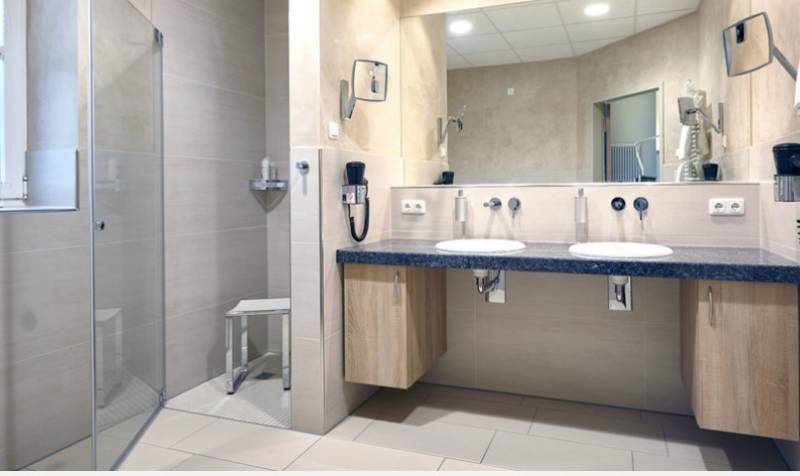

HOSPITAL AND HOTEL IN ONE
