Corner Grab Bar - Grab Rail - PLAN CARE - Grab bar
Verified by manufacturer 1 month ago
34911014400
34911014400
TUV - Safety and Quality Report
Certificate type
Left or right hand mountable shower or bath support rail.
Application
Typical application in bath and shower areas as support-safety railing for public or private facilities.
Description

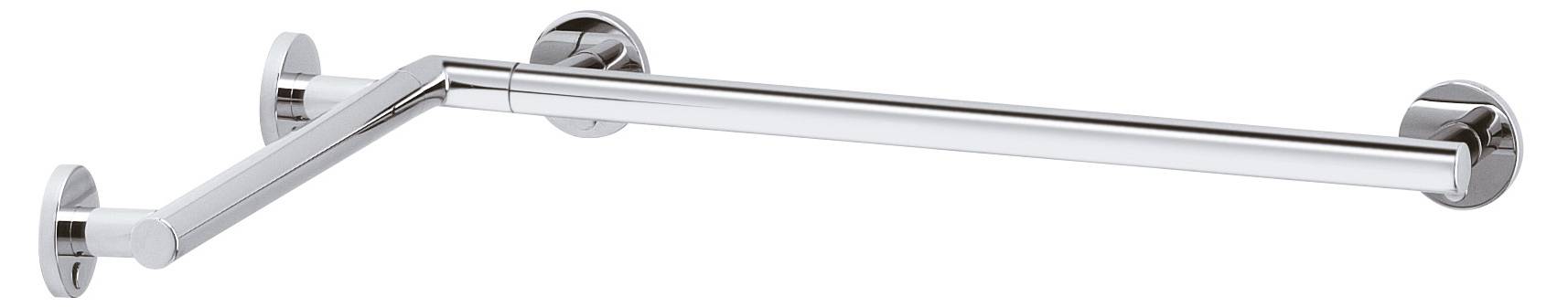

Aesthetic, practical and ergonomically designed corner support rail for shower or bath. Keuco premium materials and workmanship make the grab bars and rails safe and lasting companions, even in demanding conditions.
Features and benefits:
- Up to 115 kg load capacity.
- May be used on the left or right.
- Anti-static.
- Easy to clean.
- Wall mounting set included.
- May be combined with a tip-up seat with backrest (article no. 34981) or spray guard (article no. 34940).
- Suitable tile compensation plate (article no. 34912).
General information
Color | Silver Guidance for specification option: Chrome, Silver anodized. |
Finish | Chrome Guidance for specification option: Chrome plated. Anodized Guidance for specification option: Aluminium silver anodized. |
Material | Brass Guidance for specification option: CW508L. |
Shape | Other |
Length | 597 mm 797 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/69 Support rails and grab bars N13/436 Handrails and grab bars |
Product range |

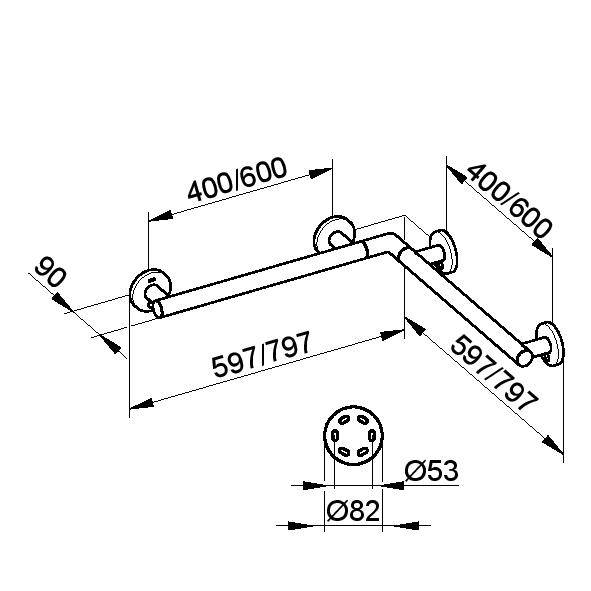

Specification data - Support rails
Form | Fixed. |
Diameter | 33 mm.Manufacturer guidancePipe diameter. |
Materials | |
Body | Manufacturer's standard. |
Finish and colour | Chrome-plated. |
Width | 597 mm. |
Height | 82 mm. |
Depth | 90 mm. |
Length | 597 mm. |
Mounting | Not required. 4 x mounting set 4. Guidance for specification option: (article no. 34990000200.) 4 x mounting set 7. Guidance for specification option: (article no. 34993000200.) Manufacturer guidance4 x mounting set 1 (article no. 34990000100) is included. Further mounting sets (depending on type of wall) available; consult manufacturer for more details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Brass Guidance for specification option: CW508L. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature
KEUCO Barrier-free Bathrooms
Case studies
HOSPITAL AND HOTEL IN ONE
KEUCO GIVES A COMFORT WARD A MODERN AMBIENCE AND HOME LIKE ATMOSPHERE
Redecorated Hotel Arcadeon in Hagen impresses with style-conscious blend of modernity and comfort
