Angled Grab Bar - Shower Slide Rail with Bracket - PLAN CARE - Grab bar
Verified by manufacturer 2 days ago
Chrome - 34906010411
Chrome - 34906010411
TUV - Safety and Quality Report
Certificate type

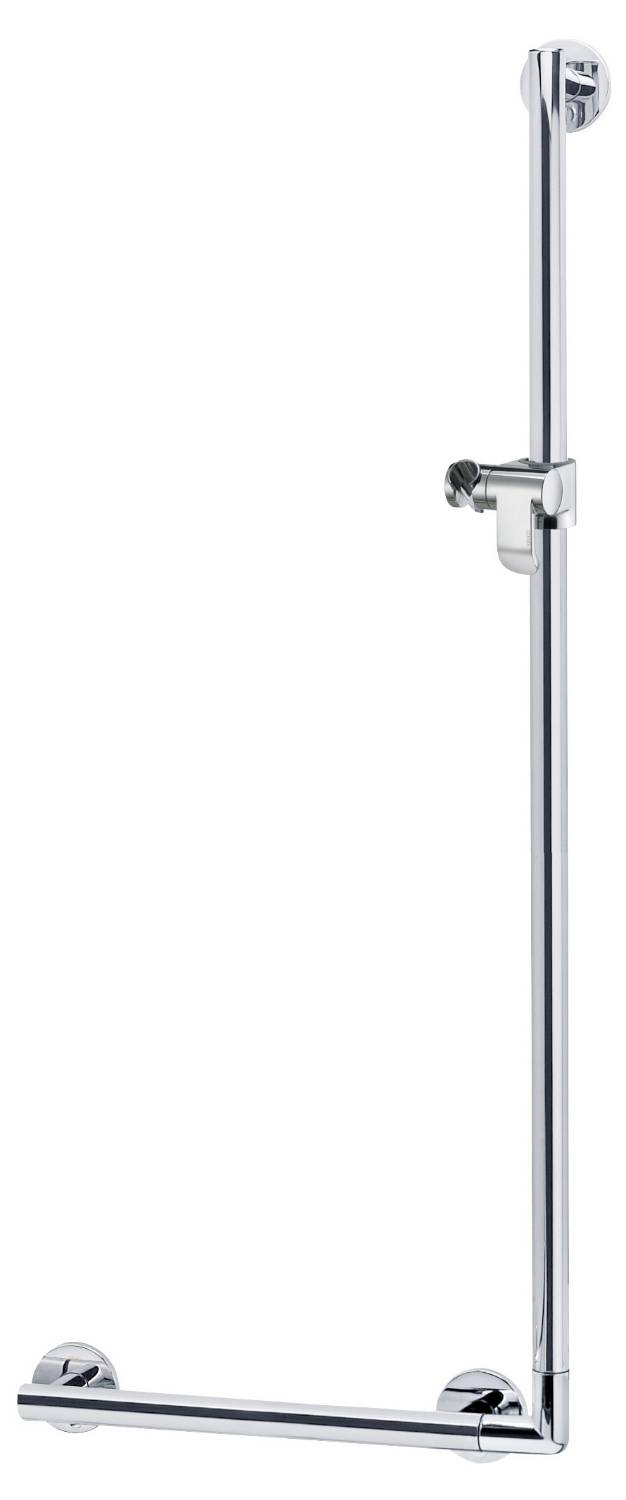

Shower rail complete with bracket for left or right application.
Application
Suitable for use in bathrooms and washrooms in a private or commercial environment.
Description
Aesthetic, practical and ergonomically designed 90° angle shower support rail. Keuco premium materials and workmanship make the grab bars and rails safe and lasting companions, even in demanding conditions.
Features and benefits:
- Up to 115 kg load capacity.
- Complete with shower bracket.
- May be used on the left or right.
- Anti-static.
- Easy to clean.
- Wall mounting set included.
- May be combined with a tip-up seat with backrest (article no. 34981) or spray guard (article no. 34940).
- Suitable tile compensation plate (article no. 34912).
General information
Color | Silver Guidance for specification option: Chrome, Silver anodized. |
Finish | Chrome Guidance for specification option: Chrome plated. Anodized Guidance for specification option: Aluminium silver anodized. |
Material | Brass Guidance for specification option: CW508L. |
Shape | Other Guidance for specification option: L-shaped. |
Length | 1265 mm |
Width | 565 mm |
Height | 90 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/69 Support rails and grab bars N13/436 Handrails and grab bars |
Product range |
Specification data - Support rails
Form | Fixed. |
Diameter | 33 mm.Guidance for specification option: Rosettes diameter: 82 mm. Manufacturer guidancePipe diameter. |
Materials | |
Body | Manufacturer's standard. |
Finish and colour | Chrome-plated. |
Integral accessories | Shower holder. |
Dimensions | Manufacturer's standard. Guidance for specification option: Horizontal base measurement: 400 mm. Vertical base measurement: 1182 mm. Wall distance: 57 m. |
Mounting | Not required. 3 x mounting set 4. Guidance for specification option: (article no. 34990000200.) 3 x mounting set 7. Guidance for specification option: (article no. 34993000200.) Manufacturer guidance3 x mounting set 1 (article no. 34990000100) is included. Further mounting sets (depending on type of wall) available; consult manufacturer for more details. |
Width | 565 mm. |
Height | 1265 mm. |
Depth | 90 mm. |
Projection | 90 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Brass Guidance for specification option: CW508L. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature
KEUCO Barrier-free Bathrooms
