Angled Grab Bar - Grab Rail - PLAN CARE - Grab bar

Name: Angled Grab Bar - Grab Rail - PLAN CARE - Grab bar
Brand: KEUCO
SKU: 89fwP4w3hNzWx5jsT7TiWC

Verified by manufacturer 1 month ago

34907010402

KEUCO

Diagonal bathroom support rails, available for left- or right-handed wall mounting.

Jump to:

BOS

+44 (0) 1442 865220 Website

Application

Typical application in bathrooms, WC and bath-place areas as support-safety railing for public or private facilities.

Description

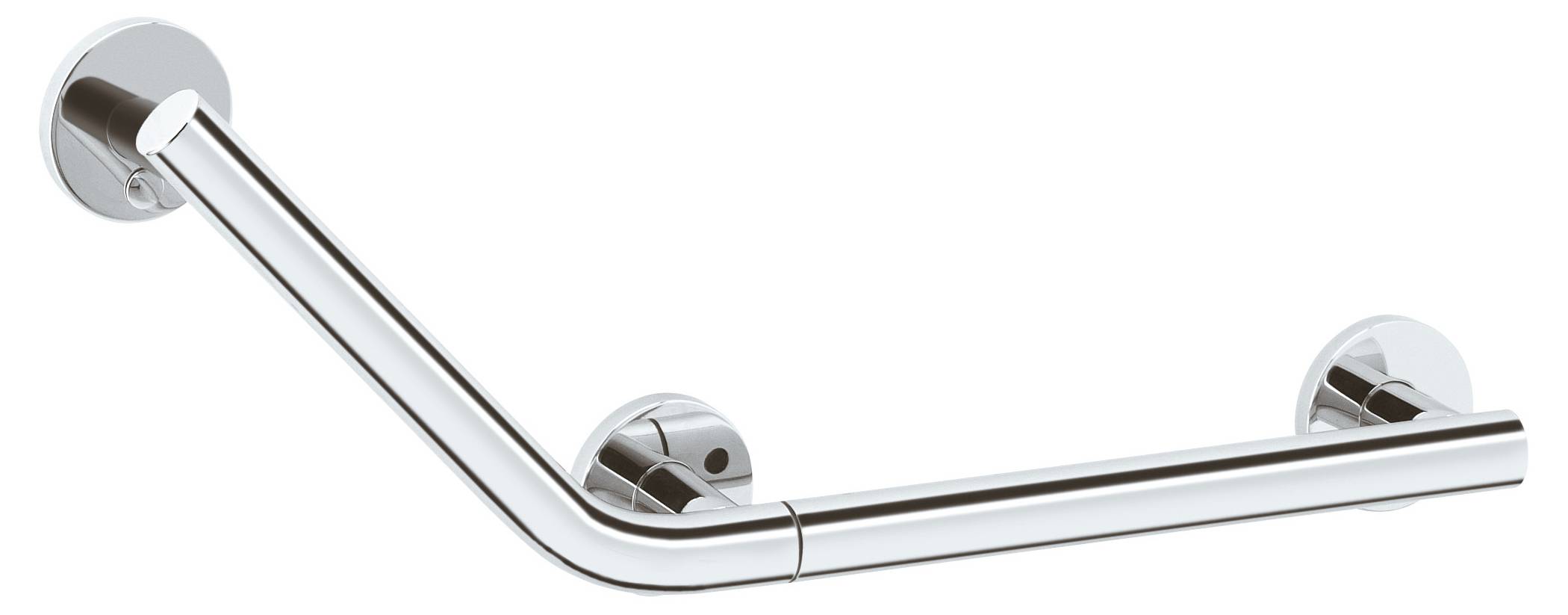

Aesthetic, practical and ergonomically designed 135° angle diagonal bath support rail. Keuco premium materials and workmanship make the grab bars and rails safe and lasting companions, even in demanding conditions.

Features and benefits:

Available for left- or right-handed application in high shine chrome-plate or aluminium silver anodized finish.
Up to 115 kg. load capacity.
Anti-static.
Easy to clean.
Wall mounting set included.
Suitable tile compensation plate (article no. 34912).
The handle is TUEV-GS tested.

General information

Color	Silver Guidance for specification option: Chrome, Silver anodized.
Finish	Chrome Guidance for specification option: Chrome plated. Anodized Guidance for specification option: Aluminium silver anodized.
Material	Brass Guidance for specification option: CW508L.
Shape	Other
Length	673 mm
Width	266 mm
Height	90 mm
Warranty description	Five year

Uniclass	Pr_40_20_76_84 Support railsPrimary
CAWS	N13/69 Support rails and grab bars N13/436 Handrails and grab bars

Product range	Accessories / PLAN Care

Specification data - Support rails

Form	Fixed.
Diameter	33 mm. Guidance for specification option: 3 Rosettes Diameter 82 mm. Manufacturer guidance Pipe diameter.
Materials	-
Body	Manufacturer's standard.
Finish and colour	Chrome-plated.

Hand	Left hand.
Dimensions	Guidance for specification option: Horizontal base measurement: 346 mm. Diagonal base measurement: 184 mm. Wall distance: 57 mm.
Load capacity	115 k.g.
Mounting	Not required. 3 x mounting set 4. Guidance for specification option: (article no. 34990000200.) 3 x mounting set 7. Guidance for specification option: (article no. 34993000200.) Manufacturer guidance 3 x mounting set 1 (article no. 34990000100) is included. Further mounting sets (depending on type of wall) available; consult manufacturer for more details.
Width	673 mm.
Depth	90 mm.
Height	266 mm.
Projection	90 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Material	Brass Guidance for specification option: CW508L.
