Gustafs Lamellow+ Walls

Name: Gustafs Lamellow+ Walls
Brand: LSA Projects Ltd
SKU: xkp6pUY3SRxWdSyyJzNRBk

Verified by manufacturer 1 month ago

Linear

LSA Projects Ltd

Third party certifications:

EPD
Certificate type
BS EN 13501-1
Certificate type

Acoustic linear panels for walls.

Jump to:

+44 (0)1376 501199 Website

Application

Suitable for commercial, education, leisure and transport environments.

Description

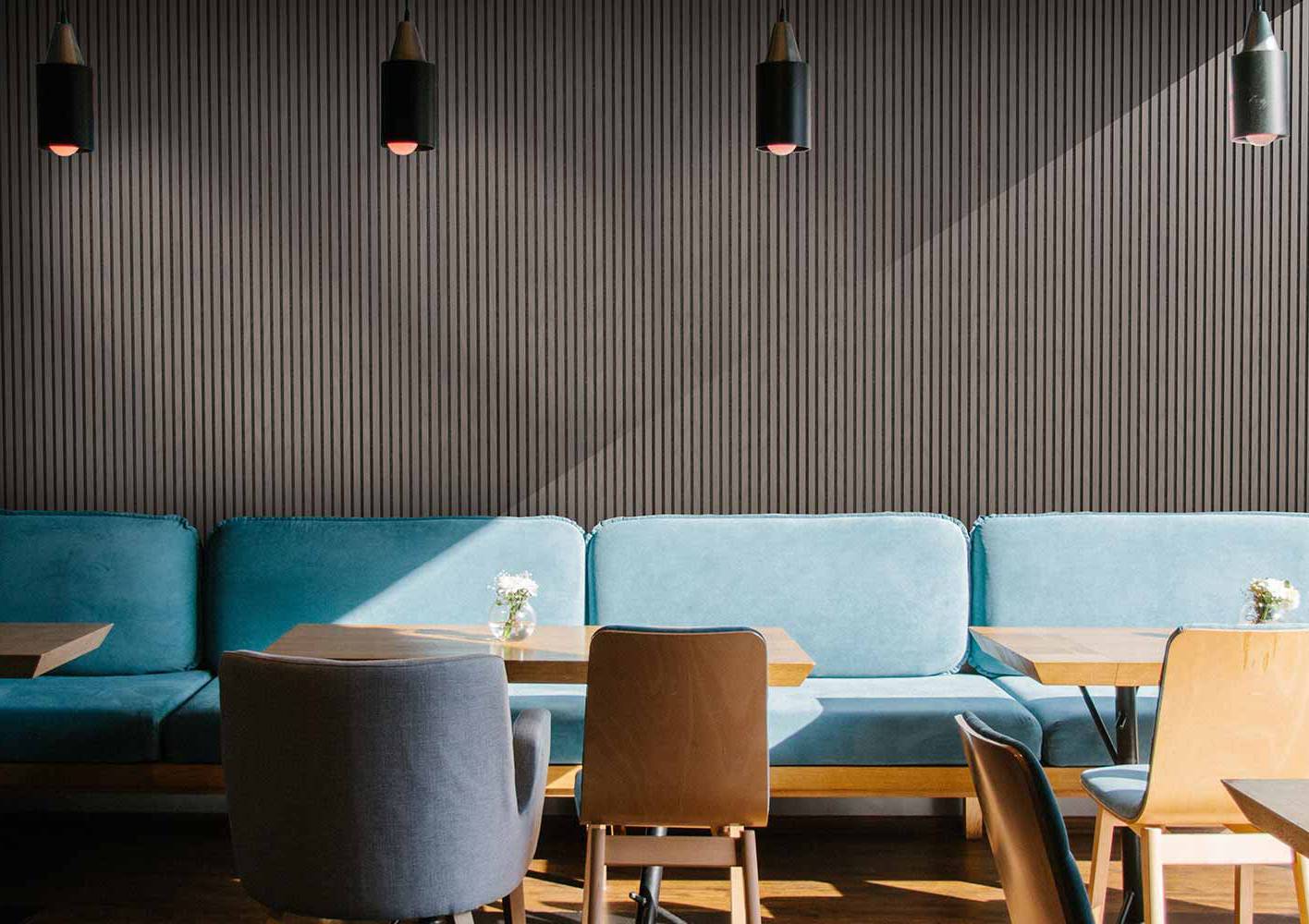

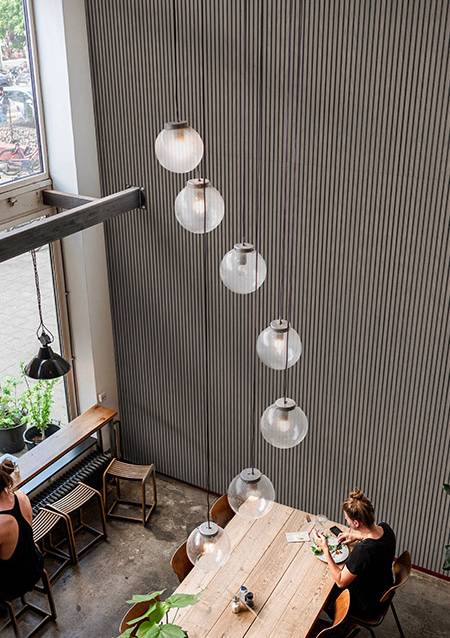

Gustafs Lamellow+ Walls is a panelized linear wall system with up to Class A acoustic control built into the panels with no need for addition acoustic lining materials.

Lamellow+ is built from a rigid acoustic fleece board in a choice of light or anthracite grey and faced with gypsum core ribs with natural veneer to the front edge. The complete panel construction and installation achieves Euroclass B-s1,d0 for resistance to fire and can be delivered with FSC certified veneer.

Lamellow+ Barcode/Linear is built in rectangular modules of 2400 x 600 mm and is designed to suit most floor to ceiling spans with options for matching veneer wrapped or felt framing profiles for exposed edges and corners.

The Puzzle panels are available in four designs and modules of 2400 x 600 mm, 1200 x 600 mm and 600 x 600 mm.

Lamellow+ panels can be installed to curved surfaces down to a radius of 1000 mm and the system eliminates the need for additional Capax installation profiles. Panels are installed using black screws disguised at regular intervals between the ribs.

BREEAM marked and VOC regulated.

General information

Color	Black Brown Beige Grey
Finish	Veneered
Material	Gypsum Wood
Shape	Rectangle
Length	600 mm 1200 mm 2400 mm
Width	600 mm
Height	22 mm
Warranty description	Two year

Uniclass	Ss_25_25_75_95 Wood veneered panel lining systemsPrimary Ss_25_25_45_47 Linear wall lining systems Ss_25_25_75_05 Acoustic panel lining systems
CAWS	K13/160 Proprietary K13/160 Proprietary K13/170 Acoustic panel lining K13/170 Acoustic panel lining K13/120 Wood-veneered panel lining K13/120 Wood-veneered panel lining

Specification data - Wood veneered panel lining systems

Panels	Veneered gypsum particleboard ribs with acoustic felt backing.
Fasteners	Screws. Guidance for specification option: 15 screws in the felt, between the ribs. Nails. Guidance for specification option: 15 nails in the felt, between the ribs. Glue. Guidance for specification option: 15 gluing points per panel. Manufacturer guidance Panels can be used for convex curved installation at minimum 1000 mm radius. The Lamellow+ panels are installed with imbricated, hidden joints.
Finish	Veneered.
System accessories	Not required. Lamellow+ framing profiles in matching veneer. Felt joining strips.

Reaction to fire	To EN 13501-1, Euroclass B-s1, d0.
Panel facing	Veneer - Wild oak smoked. Guidance for specification option: Felt - Anthracite. Veneer - Wild oak grey. Guidance for specification option: Felt - Anthracite. Veneer - Knotty oak. Guidance for specification option: Available with Anthracite felt or Wool grey felt, insert requirements. Veneer - American oak. Guidance for specification option: Available with Anthracite felt or Wool grey felt, insert requirements. Veneer - Walnut. Guidance for specification option: Felt - Anthracite. Veneer - Birch. Guidance for specification option: Felt - Wool grey. Veneer - Ash. Guidance for specification option: Felt - Wool grey. Cera - Exposed composite. Show more
Panel weight	19.4 kg per 1.44 m².
Design	Linear rectangular design.
Panel dimensions	22 x 600 x 2400 mm. Manufacturer guidance H x W x L
Panel spacing	13 mm.
Ribs	13 x 27 mm. Manufacturer guidance L x W
Sound absorption class	αw 0.30-NCR 0.55. Guidance for specification option: Wall, direct installation (Class D). αw 0.95-NCR 0.95. Guidance for specification option: Wall, plus 45 mm mineral wool (Class A).
Surface treatment	Triple UV coating system, natural woodgrain/ oil look.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Recyclability	Product is demountable and reusable within expected lifespan
Recycled content As defined in clause 7.8 of BS EN ISO 14021	94 % Guidance for specification option: Ribs.
