Gustafs Feltfon Walls - Acoustic Linear System

Verified by manufacturer 26 days ago

LSA Projects Ltd Third party certifications:
  • FSC

    FSC

    Certificate type

  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

Linear sound absorption system for wall applications.

Jump to:
+44 (0)1376 501199 Website

Application

Suitable for commercial applications with high throughput of people such as in schools and other public spaces.

Description

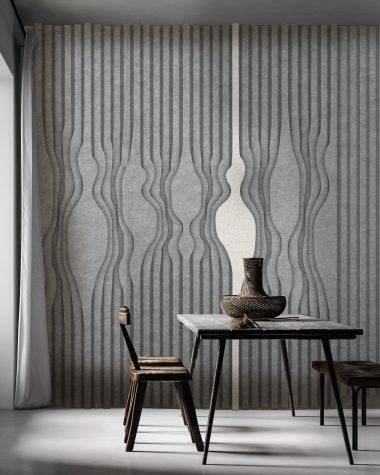

Gustafs Feltfon Linear is a customisable linear felt solution which gives a soft, warmth to walls, while providing effective sound attenuation.


Features and benefits:

  • Elegant and practical acoustic felt solution.
  • Provides effective sound dampening with an acoustic class of ‘A’.
  • Appearance is akin to wool, it has a strong textural appeal and represents a further exploration of material innovation.
  • Manufactured from recycled PET bottles and can be recycled multiple times.
  • Available in three shades of grey, the lightest wool grey, a medium grey called dark grey, and the darkest shade, anthracite.
  • Available in a wide range of standard dimensions.
  • Installation with the Capax installation system which is fully demountable.
  • Produced with 100% fossil free energy.
  • Fire rating of class B-s1,d0.

General information

Color

Grey

Beige

Cream

Green

Finish

Textured

Material

Felt

Polyester fibre (PET)

Aluminium

Shape

Rectangle

Circle

Crescent

Elliptical

Formless

Show more

Length

Bespoke

Width

40 mm

71 mm

102 mm

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Ss_25_25_45_47 Linear wall lining systemsPrimary
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Linear wall lining systems

Support

Base-WF Capax supporting profile at max 600 mm c/c.

Insulation

Gustafs Acoustex sheets to infill inside of and between Base-WF profiles. 9 mm in standard Feltfon colour range.

Fasteners

Capax aluminium profile installation system, aluminium.

Capax aluminium profile installation system, black.

System accessories

Not required.

LED lighting.

Wooden infill strips.

Guidance for specification option:

Insert requirement:

  • Available in three sizes (depth x width x length): 13 x 23 x 2400 mm, 13 x 54 x 2400 mm and 13 x 85 x 2400 mm.
  • Wood species: American Oak/ Knotty Oak/ Birch/ Ash/ Walnut/ Wild Oak Smoked and Wild Oak Grey.

Acoustex felt.

Reaction to fire

To EN 13501-1, Euroclass B-s1,d0.

Design

Linear rectangular design.

Linear vector design.

Linear layers design.

Spacing

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

Rib spacing.

Acoustic performance

Acoustic absorption coefficients up to Class A.

Colour

Anthracite.

Dark Grey.

Wool Grey.

Sand.

Wet Sand.

Show more

Manufacturer guidance

Feltfon rib colour.

Length

2400 mm.

3000 mm.

Width

40 mm.

71 mm.

102 mm.

Bespoke.

Guidance for specification option:

  • Maximum width: 598 mm.
  • Consult manufacturer for details and insert requirements.

Depth

40 mm.

60 mm.

80 mm.

100 mm.

120 mm.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Sweden

Material

Felt

Polyester fibre (PET)

Aluminium

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Manufacturer guidance

  • Certified minimum 50% post-consumer recycled PET.
  • Feltfon is produced with 100% fossil free energy.

Third party certifications

FSC

Gustafs FSC Certificate

BS EN 13501-1

BS EN 13501-1

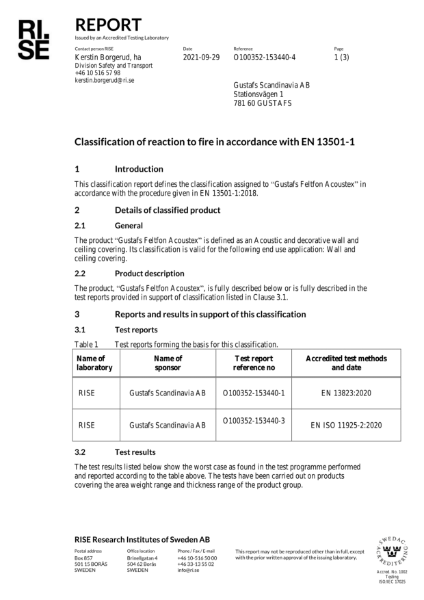

Feltfon Fire Test Report

Literature

Gustafs Linear Feltfon Walls

Gustafs Linear Feltfon Walls

Gustafs Product Sheet Feltfon 3D

Gustafs Product Sheet Feltfon 3D

Gustafs Product Sheet Feltfon Linears

Gustafs Product Sheet Feltfon Linears

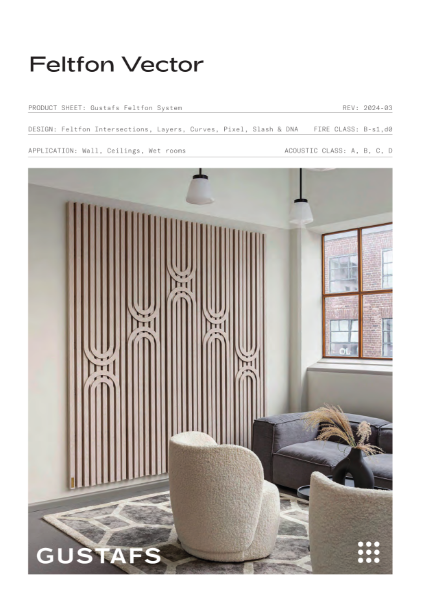

Gustafs Product Sheet Feltfon Vectors
