Gustafs Panel System Walls

Name: Gustafs Panel System Walls
Brand: LSA Projects Ltd
SKU: agqnLniTYTo5X6PD4A2ukK

Verified by manufacturer 2 months ago

LSA Projects Ltd

Third party certifications:

EPD
Certificate type

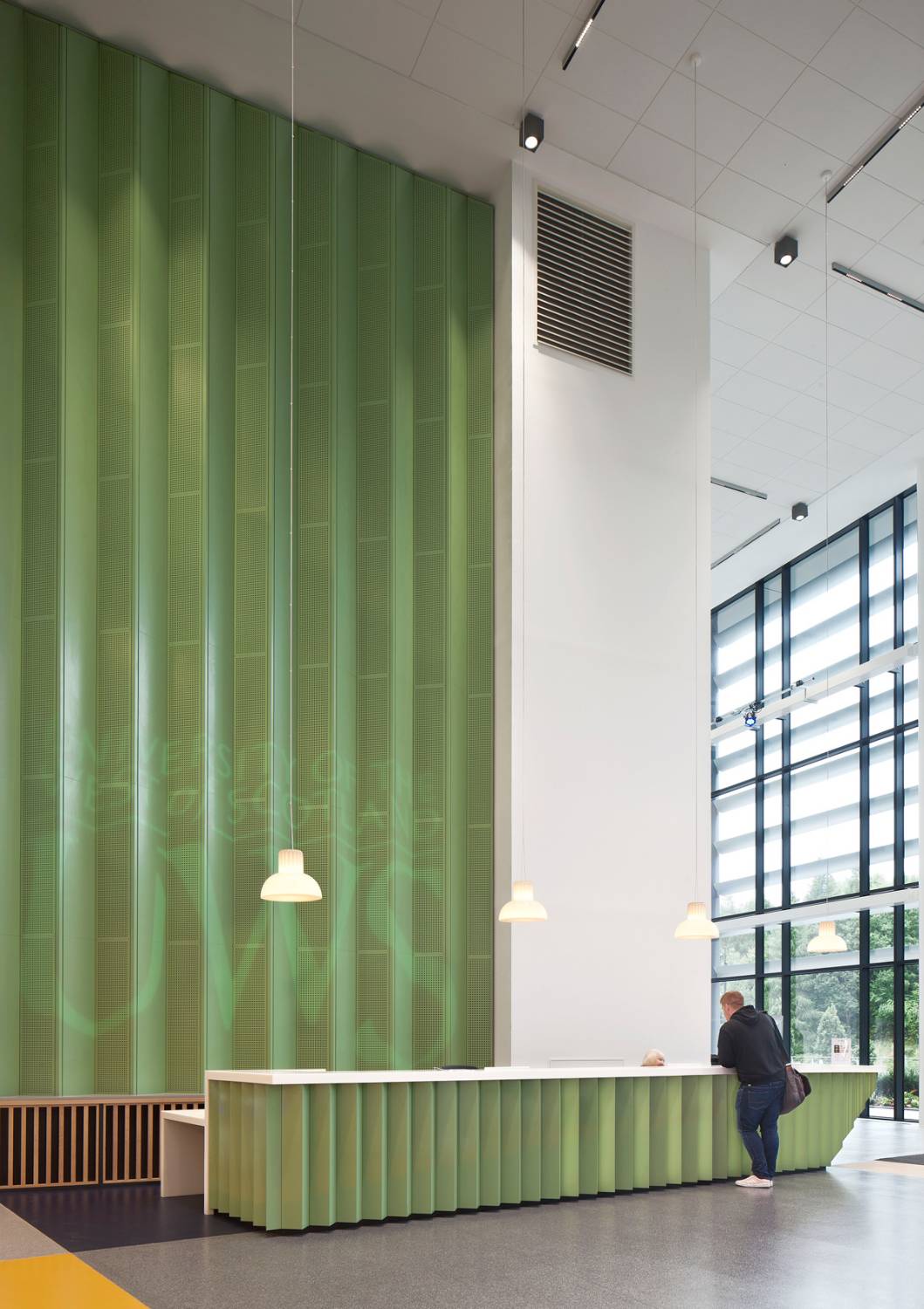

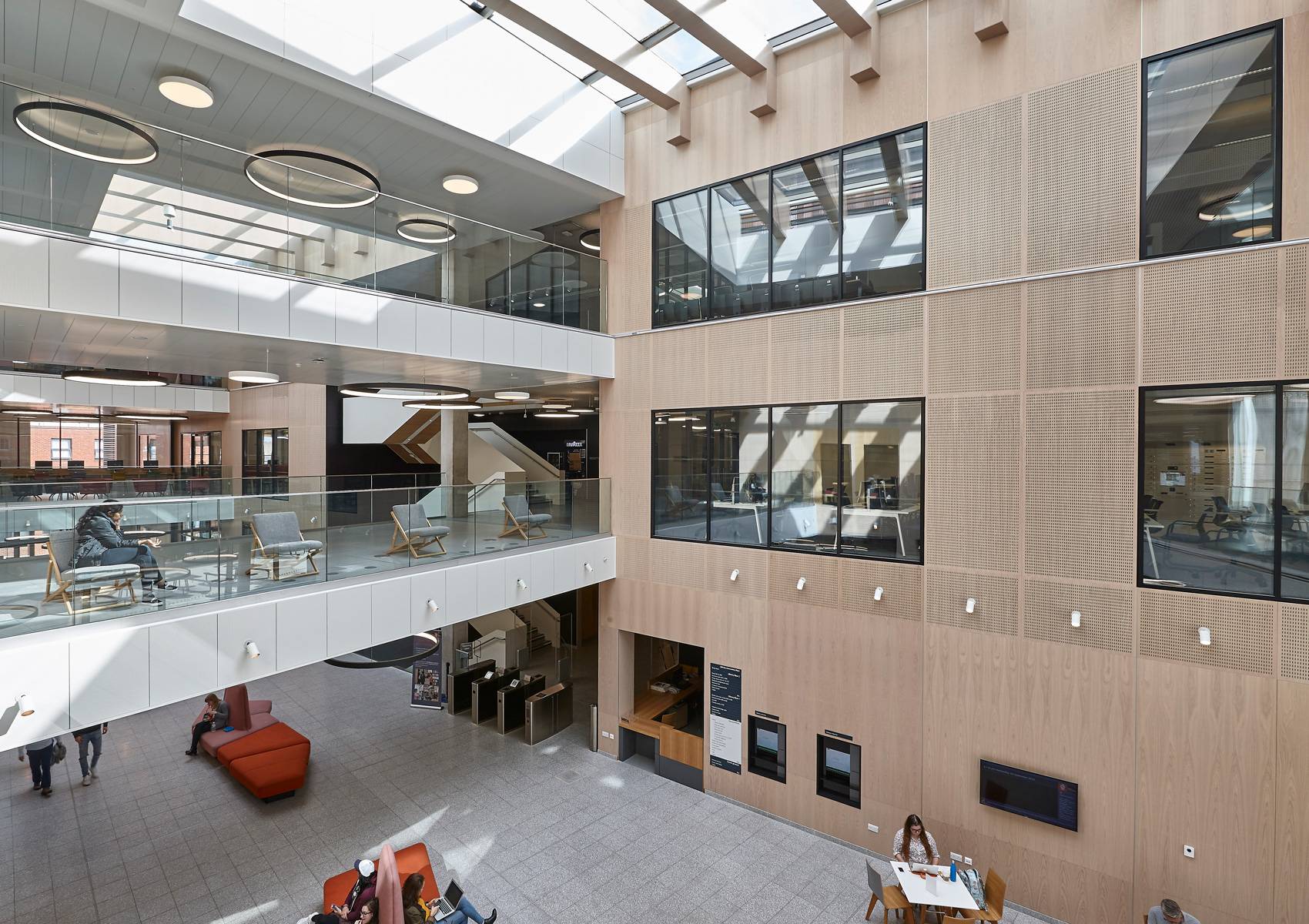

A fire rated timber veneer wall lining system.

Jump to:

+44 (0)1376 501199 Website

Application

Suitable for public buildings such as conference rooms, concert halls schools and auditoria.

Description

Gustafs Panel System is available in numerous standard and specialist veneers and finishes with or without acoustic control.

The distinctive Capax installation profiles for wall and ceiling installation allow for secure and invisible fixing across your space with styles to fit every project.

The gypsum core panel system is classed as A2-s1, d0 for resistance to fire, meaning the spread of flames, smoke production and flaming droplet production are minimal and comparable to metal or mineral cladding.

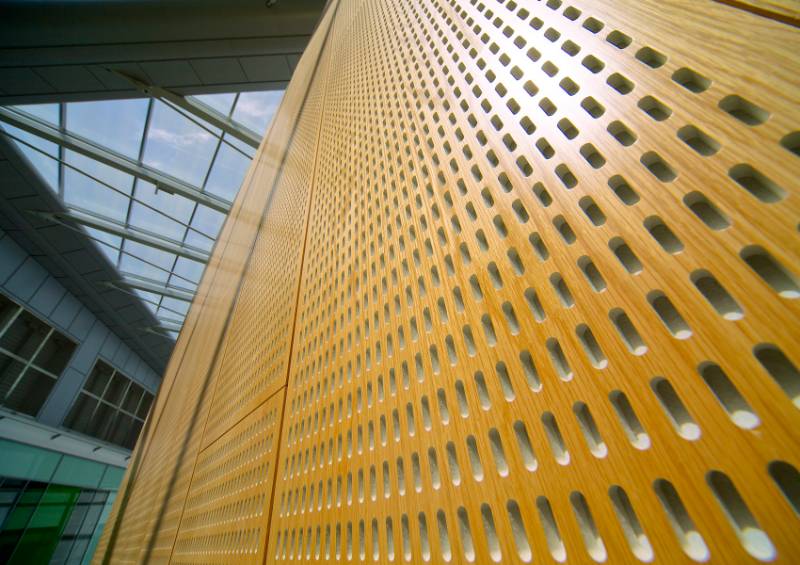

Standard and bespoke acoustic perforations are available, as well as the invisible Nano perforation, achieving up to Class B for acoustic control.

General information

Color	Brown Beige Black Blue Bronze Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Other Show more
Finish	Veneered Laminated Painted Lacquered Stained Grooved Matt Etched Gloss Woodgrain Show more
Material	Gypsum Wood
Shape	Rectangle Square Other Triangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Two year

Uniclass	Ss_25_25_75_95 Wood veneered panel lining systemsPrimary Ss_25_25_75_94 Wood panel lining systems Ss_25_25_75_05 Acoustic panel lining systems
CAWS	K13/160 Proprietary K13/170 Acoustic panel lining K13/170 Acoustic panel lining K13/160 Proprietary K13/120 Wood-veneered panel lining K13/120 Wood-veneered panel lining

Specification data - Wood veneered panel lining systems

System performance	- Manufacturer guidance Insert requirements or omit. Acoustic properties: Contact LSA Projects for a full acoustic report. LSA projects recommend seeking the advice of a professional acoustic consultant.
Battens	Capax Assembly System fixed into timber battens.
Panels	Gypsum particleboard (BF). Guidance for specification option: Panel thickness: 13.2 mm. Panel construction: Gypsum 81% Cellulose Fibres 12% Solid wood edge strips and veneer 3% Water 2% Craft Paper 1% Adhesive 1% Lacquer <0.3%
Fasteners	Proprietary Capax invisible fixing system.
Finish	Lacquered, clear. Guidance for specification option: Available in a range of gloss finishes. Oiled. Stained. Pigmented. Solid paint. Guidance for specification option: Available in a range of colours in accordance with, for example, NCS or RAL codes up to a gloss rate of up to 50. Art. Guidance for specification option: Gustafs BF-Print, Routed patterns, or Intarsia wood inlays. Lacquered, pigmented. Manufacturer guidance Consult manufacturer's literature for further information.
System accessories	Not required. Felt backing, black. Guidance for specification option: Standard. Acoustic panels only. Felt backing, white. Guidance for specification option: Acoustic panels only.

Reaction to fire	To EN 13501-1, Euroclass A2-s1, d0. Guidance for specification option: Full details available upon request.
Type	Fixed panels. Demountable panels. Manufacturer guidance Panel edges to suit fixed/demountable installation. See Gustafs Catalogue 2023 for details.
Panel facing	Nature veneer - Oak. Nature veneer - Birch. Nature veneer - Rotary cut Birch. Nature veneer - Maple. Nature veneer - Ash. Nature veneer - Beech. Nature veneer - Pear. Nature veneer - Mahogany. Nature veneer - Oregon Pine. Nature veneer - Elm. Nature veneer - Cherry. Nature veneer - Teak. Nature veneer - Walnut. Gemini veneer - Pale Maple. Gemini veneer - Sandy Maple. Gemini veneer - Wavy Maple. Gemini veneer - Birds Eye Maple. Gemini veneer - Birch. Gemini veneer - Ash. Gemini veneer - Oak. Gemini veneer - Beech. Gemini veneer - Pear. Gemini veneer - Cherry. Gemini veneer - Teak. Gemini veneer - Mahogany. Gemini veneer - Walnut. Gemini veneer - Wenge. High Pressure Laminate (HPL). Metal laminates. Guidance for specification option: A standard collection of metal laminates is available including aluminium, brushed steel and bronze, but you can also choose other laminates. Contact LSA for more information. Show more Manufacturer guidance Direction of veneer: Always on the length.
Acoustic insulation	Not required. Mineral wool (by others). Guidance for specification option: Insulation behind acoustic panels typically Rockwool (minimum density 28 kg/m3). To be supplied by installer, not LSA.
Perforation pattern	Plain. Nano. Guidance for specification option: 0.5 mm, open area 5.9%. PD8. Guidance for specification option: Domino perforation 8 mm, open area 24%. Absorption class B. PH8. Guidance for specification option: Perforation 8 mm, open area 12%. Absorption class D. PH5. Guidance for specification option: Perforation 5 mm, open area 5%. Absorption class D. PS2. Guidance for specification option: Double sided perforation 3/10 mm. Absorption class E. PH10. Guidance for specification option: Perforation 10 mm, open area 18%. Absorption class C. PG8. Guidance for specification option: Group perforation 8 mm, 8% open area. Absorption class D. PG5. Guidance for specification option: Group perforation 5 mm, 3% open area. Absorption class E/D. SX8. Guidance for specification option: Maxi slotted, 29% open area. Absorption class B. SM8. Guidance for specification option: Mini slotted 8 mm, open area 26%. Absorption class B. SM5. Guidance for specification option: Mini slotted 5 mm, open area 15%. Absorption class C. RS8-C40. Guidance for specification option: Rib slotted 8 mm, open area 13%. Absorption class C. SG5. Guidance for specification option: Group slotted, 5 mm, open area 12%. Absorption class D. QS. Guidance for specification option: Slotted 20 mm, 28% open area. Absorption class C. SH8. Guidance for specification option: Slotted, 8 mm, open area 26%. Absorption class C. SG8. Guidance for specification option: Group slotted, 8 mm, open area 20%. Absorption class C. SH5. Guidance for specification option: Slotted, 5 mm, open area 15%. Absorption class C. RP8. Guidance for specification option: Barcode perforation, 8 mm, open area 1.6%. Absorption class C. RP8-C20. Guidance for specification option: Perforation, 8 mm, open area 1.7%. Absorption class D. RP8-C10. Guidance for specification option: Perforation, 8 mm, open area 2.8%. Absorption class C. Show more
Panel dimensions	As drawing. Guidance for specification option: Panel sizes to suit architectural drawings, consult manufacturer for sizing advice and insert requirements.
Panel weight	15.7 kg/m².
Edges	G. GP. GF. GS. HP. HPX. RV. AV. Show more Manufacturer guidance See Gustafs Catalogue 2023, p40, for details.
Aluminium profiles	Capax joint profile 3201. Guidance for specification option: Closed joints. Capax joint profile 3217. Guidance for specification option: Closed joints. Capax joint profile 3208. Guidance for specification option: Closed joints. Capax joint profile 3202 Guidance for specification option: Open joints, 10, 13 and 15 mm. Capax joint profile 3212 Guidance for specification option: Open joints, 10, 13 and 15 mm. Capax joint profile 3211 Guidance for specification option: Open joints, 10, 13 and 15 mm. Capax joint profile 3206 with LED line, diffuser lens and power supply. Capax wall start/ end 3200. Capax wall start/ end 3203 Capax wall start/ end 3204 Capax wall start/ end 3207 Capax wall start/ end 3205 Capax wall start/ end 3251/3231 (HPL). Capax wall start/ end 3220. Capax wall corners 3209/3239 (HPL). Capax wall corners 3219/3229 (HPL). Capax wall corners 3218. Capax wall corners 3201. Capax wall corners 3215. Show more

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	Gypsum Wood
Recyclability	Product is demountable and reusable within its expected lifespan.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	94 % Manufacturer guidance All products based on fibre gypsum boards have a recycled content of at least 94%. 17% of the final panel is post consumer recycled.
