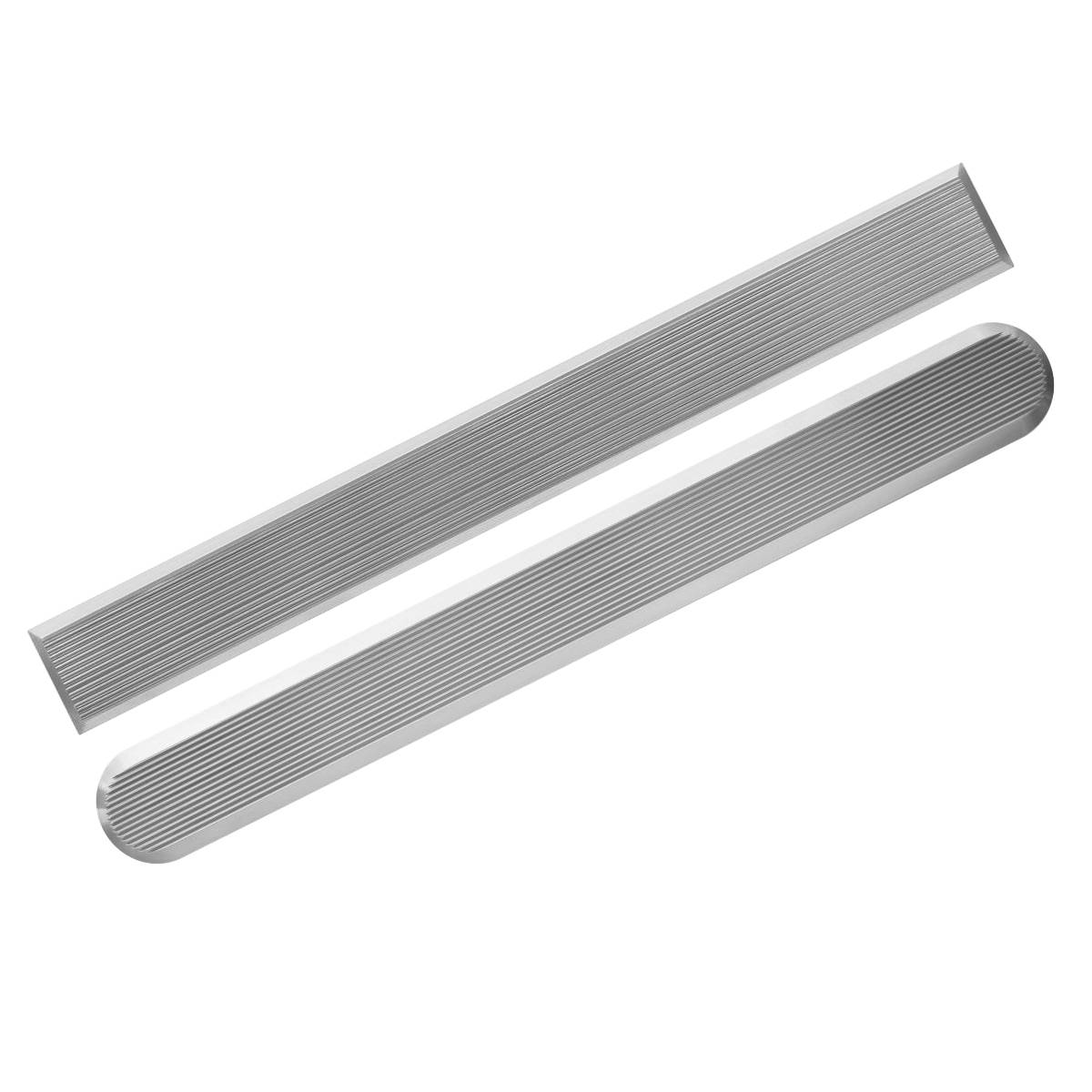

Groove Textured Tactile Guiding Strip

Verified by manufacturer 1 month ago

Aluminium

Studmarc Variant:

The groove-textured guiding strip is compliant for use in guiding the visually impaired in the public realm. Available in several metals and customizable with bespoke sizing.

Jump to:
BOS
+44(0)1686 807 450 Website

Application

Suitable for use in public or private applications on finished surfaces. The size of the strip is 1:1 with the corduroy bars on corduroy paving and can be used as an alternative.

Description

This grooved textured tactile guiding stud is manufactured from various materials including steel, aluminium, bronze, and brass, and is finished with groove-shaped protrusions on the surface.


At 400 mm in length, 20 mm in width and 6 mm in height, this guiding strip is in line with DETR guidelines, meaning they are suitable for use in guiding the visually impaired in public and private settings.


The tactile guiding strip features bevelled edges, leading up to a unique patterned surface that optimizes grip. The shape of the strip provides ample tactile feedback while remaining unobtrusive to pedestrians.


Alternate sizing is available with the bespoke product service.


Tactile studs with matching patterns are available.


Material options:

  • Aluminium.
  • 1.4404 (316L) Stainless steel.
  • Bronze.
  • 1.4307 (304L) Stainless steel.
  • Brass.


Fixing pin options:

  • Pressed pin.
  • Welded pin (for stainless steel strips only).
  • Self-adhesive.
  • Screw hole.
  • No pin.


Finishing options:

  • Burnt.
  • Bright polish.
  • Sandblasted.


Bespoke sizing guide:

  • Strip lengths: 200–500 mm.
  • Strip widths: 15–25 mm.
  • Strip heights: 3–6 mm.
  • Fixing pin lengths: 12–80 mm.


Features and benefits:

  • DETR compliant.
  • Multiple installation options.

General information

Color

Silver

Bronze

Gold

Finish

Anti-skid

Anti-slip

Grooved

Natural

Satin

Material

Stainless steel

Brass

Bronze

Aluminium

Shape

Oval

Length

400 mm

Guidance for specification option:

400mm

Bespoke

Width

20 mm

Guidance for specification option:

20mm

Bespoke

Height

6 mm

Bespoke

Warranty description

Two year

Uniclass

Pr_35_90_60_87 Tactile paving studsPrimary

CAWS

Q25/320 Tactile flags and slabs

Q10/415 Demarcation units

Specification data - Tactile paving studs

Material

Aluminium.

Profile

Grooved.

Size

400 x 20 x 6 mm.

Guidance for specification option:

As standard.

Bespoke.

Guidance for specification option:

Available sizes:

  • Length: 200–500 mm.
  • Width: 15–25 mm.
  • Height: 3–6 mm.
  • Fixing pin lengths: 12–80 mm.


Fixing

Pressed pin.

Self adhesive.

Guidance for specification option:

Recommended installation:

  • Prep area where stud is to be situated by using a grease and dirt remover, e.g. white spirits. Then let dry thoroughly.
  • Once area is dried, peel backing to stud off and press down firmly.

Highly recommended that the self-adhesive studs are only used on tiled floors.

Screw hole.

No pin.

Colour/ Finish

Bright polish.

Guidance for specification option:

As standard.

Burnt.

Sandblasted.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

Should the need to recycle the studs arise, all material options can be melted down and reused again

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Groove Textured Tactile Guiding Strip - Datasheet

Groove Textured Tactile Guiding Strip - Datasheet
