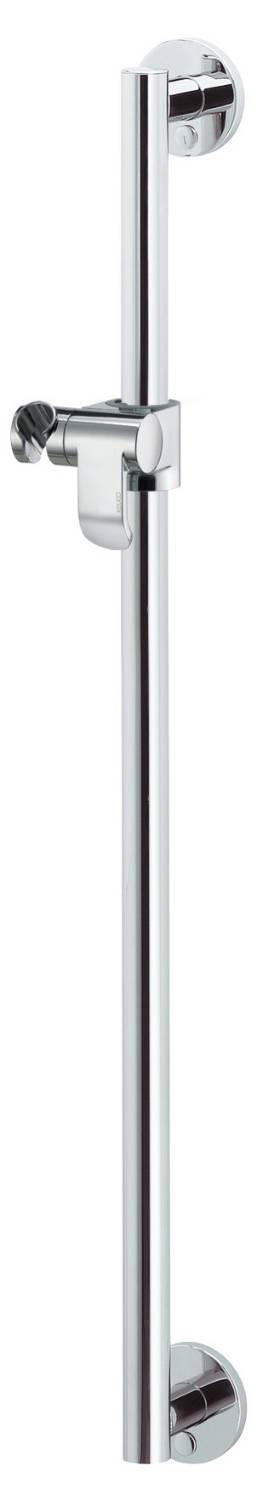

Grab Bar - Shower Slide Rail with bracket - PLAN CARE - Grab bar
Verified by manufacturer 6 days ago
34912010800
34912010800
Complete with hand-shower bracket, mountable on the right or left side.
Application
Suitable for:
- Use in bathrooms and washrooms in private and commercial settings.
- Bathroom accessory.
Description
Aesthetic, functional and ergonomically designed hand shower sliding rail. Keuco premium materials and workmanship make the hand shower rails safe and lasting companions, even in demanding conditions.
Features and benefits:
- Complete with shower bracket.
- Up to 115 kg load capacity.
- Anti-static.
- Easy to clean.
- Wall mounting set included.
General information
Color | Silver Guidance for specification option: Chrome, Silver anodized. |
Finish | Chrome Guidance for specification option: Chrome plated. Anodized Guidance for specification option: Aluminium silver anodized. |
Material | Brass Guidance for specification option: CW508L. |
Shape | Other |

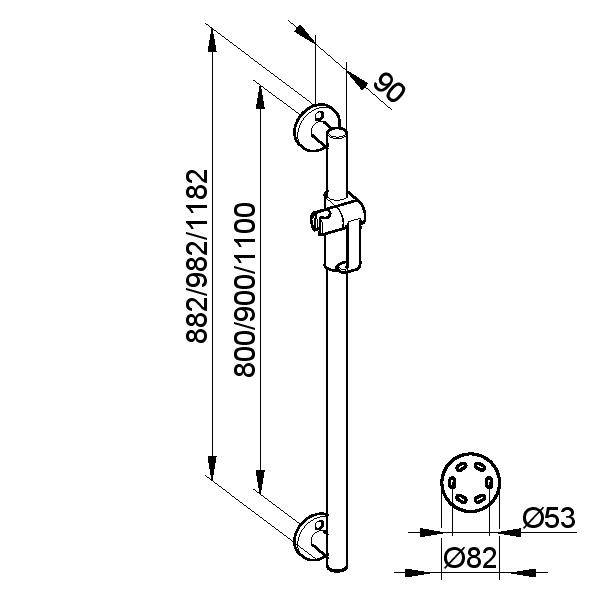

Length | 90 mm |
Width | 82 mm |
Height | 882 mm 982 mm 1182 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/69 Support rails and grab bars N13/436 Handrails and grab bars |
Product range |
Specification data - Support rails
Form | Fixed. |
Diameter | 33 mm.Guidance for specification option: Rosette diameter: 82 mm. Manufacturer guidancePipe diameter. |
Materials | |
Body | Manufacturer's standard. |
Finish and colour | Chrome-plated. |
Integral accessories | Shower holder.Hand shower bracket. |
Width | 82 mm. |
Height | 882 mm. |
Depth | 90 mm. |
Mounting | Not required. 2 x mounting set 4. Guidance for specification option: (Article no. 34990000200.) 2 x mounting set 7. Guidance for specification option: (Article no. 34990000200.) Manufacturer guidance2 x mounting set 1 (article no. 34990000100) included. Further mounting sets available (depending on type of wall). Consult manufacturer for more details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Brass Guidance for specification option: CW508L. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
KEUCO Barrier-free Bathrooms
