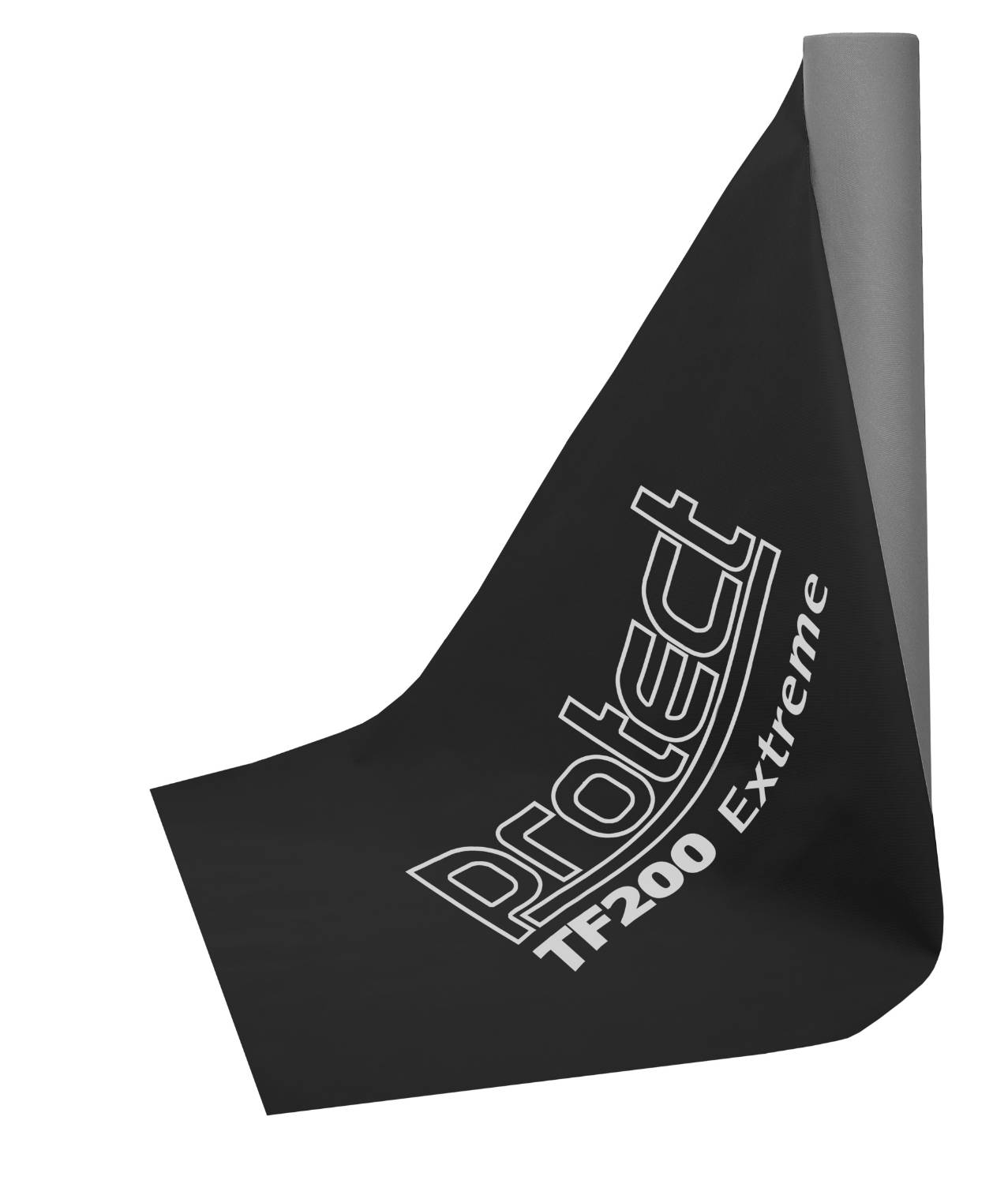

Glidevale Protect TF200 Extreme Breather Membrane - Wall Breather Membrane

Verified by manufacturer 2 months ago

BPD Building Product Design Ltd Third party certifications:
  • BM Trada

    BM Trada

    Certificate type

A high performance, waterproof, breather membrane with Class W1 water penetration resistance , for use externally on buildings sited in very severe, exposed locations aligned to STA Advice Note 18.

Jump to:
+44 (0)161 905 5700 Website

Application

Wall breather membrane for use on the cold side of insulation on external timber frame walls, Structural Insulated Panels (SIPs), Cross Laminated Timber (CLT) panels and steel frame construction. Designed for use externally on buildings which are sited in harsh environments where it is recommended that membranes with Class W1 water penetration are used.


Description

Protect TF200 Extreme is a high performance, waterproof, breather membrane designed for use externally on timber frame walls, Structural Insulated Panels (SIPs), Cross Laminated Timber (CLT) panels and steel frame construction.


Designed for use externally on buildings situated in areas which are typically high altitude, exposed and open to high winds, within westerly coastal sites in England, Ireland, Wales and Scotland, particularly cliff and sea front locations. Suitable for use where Class W1 water penetration resistance is specifically recommended.


Protect TF200 Extreme has been developed from the tried and tested TF200 range and additionally utilises microporous film technology.


Produced in the UK of triple ply construction, Protect TF200 Extreme is installed on the cold side of the insulated panel to minimise the risk of interstitial condensation and allow water vapour to escape into the vented cavity, providing a secondary line of defense against rainwater penetration during the life of the building after the external masonry is built.


Features and benefits:

  • Aligned with STA Advice Note 18 achieving Class W1 water resistance to BS EN 1928.
  • Resists the passage of water, wind blown snow and dust into the interior of the building.
  • UV and heat resistant.
  • Easy to cut and handle with good nail tear resistance.
  • Exceeds the permeability requirements recommended by TRADA and NHBC.
  • CE marked and independently BM TRADA certified.

General information

Color

Black

Guidance for specification option:

Anthracite with white product branding

Finish

Embossed

Material

Polypropylene

Shape

Rectangle

Length

100000 mm

Width

3000 mm

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

CAWS

H51/110 Cladding

H51/110 Cladding

H42/115 Precast composite

H42/115 Precast composite

H42/110 Precast homogeneous

H42/110 Precast homogeneous

H41/110 GRP single-skin cladding

H40/110 GRC cladding

H20/155 Sheet cladding (attached to timber battens)

H20/10 Sheet cladding

H21/130 Breather membrane

H22/130 Breather membrane

H30/350 Breather membrane

H31/280 Breather membrane

H92/785 Breather membrane

H21/20 Breather membrane

H22/20 Breather membrane

H30/50 Breather membrane

H31/55 Breather membrane

P10/65 Breather membrane

P10/320 Breather membrane

Product range

Wall Breather Membranes

Specification data - Vapour-permeable sheets

Standard

To BS EN 13859-2, BS EN 13111, BS EN ISO 12572; BS EN 13859-1.

Third-party certification

BM TRADA Certified.

Class (minimum)

W1.

Guidance for specification option:

Aligned with STA Advice Note 18 achieving Class W1 water penetration resistance to BS EN 13111.

Material

Polypropylene.

Form

Non-woven, spunbond.

Weight (minimum)

101 g/m².

Guidance for specification option:

Roll weight: 32 kg.

Thickness (minimum)

0.38 mm.

Reflective face

No.

TensileStrength

MD: 210 N/50mm; CD: 190 N/50mm.

Guidance for specification option:

To BS EN 12311-1 with mods.

Manufacturer guidance

Aged

Tear strength

MD: 104 N; CD: 140 N.

Guidance for specification option:

To BS EN 12310-1 with mods.

Manufacturer guidance

Aged

Water vapour resistance

0.10 MNs/g / 0.019 Sd(m).

Guidance for specification option:

To BS EN ISO 12572

Roll width

3000 mm.

Roll length

100 m.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polypropylene

Third party certifications

BM Trada

BM Trada

Protect TF200 Extreme & Thermo Extreme BM TRADA Schedule No CPS-023 & 024

BM Trada

BM Trada

Protect TF200 Extreme BM TRADA Certificate No CPS-023

Literature

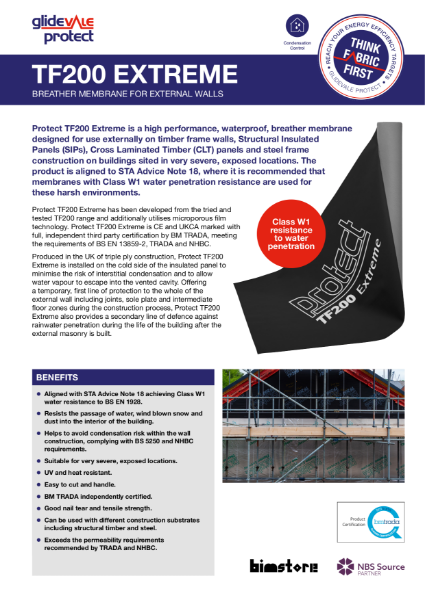

Glidevale Protect TF200 Extreme
