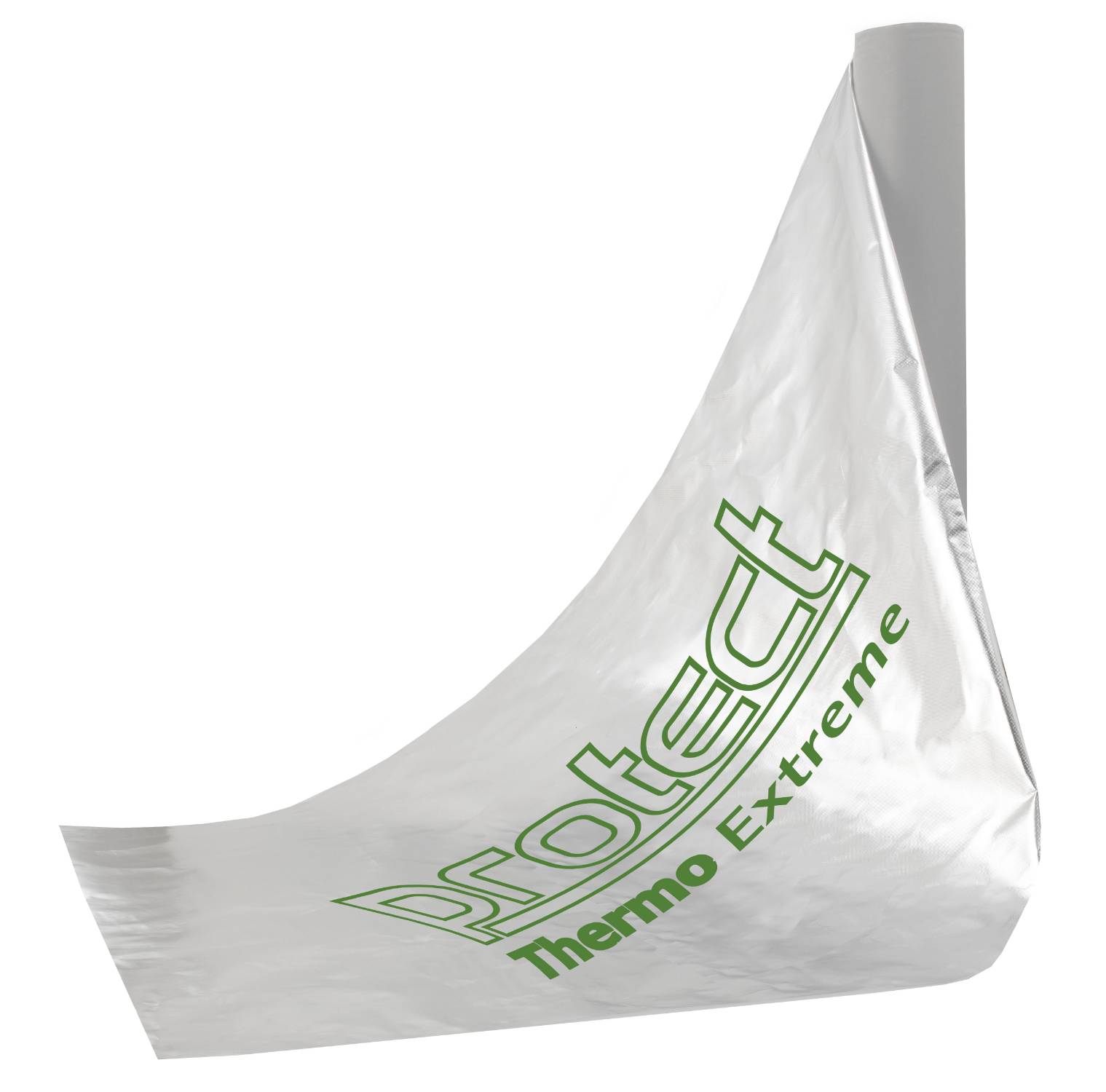

Glidevale Protect Thermo Extreme Breather Membrane - Wall Breather Membrane

Protect Thermo Extreme is a waterproof, low emissivity, highly reflective insulating breather membrane which enhances the thermal performance of timber frame walls, Structural Insulated Panels (SIPs), Cross Laminated Timber (CLT) panels and steel frame construction.

Designed for use externally on buildings in locations which are typically high altitude, open to high winds and on westerly coastal sites in England, Ireland, Wales and Scotland, where a Class W1 water penetration resistance is recommended. Used on the cold side of the insulation.

Protect Thermo Extreme has been developed from the tried and tested Protect TF200 Thermo range and additionally utilises microporous film and microperforation technology.

Produced in the UK of five ply construction, Protect Thermo Extreme’s innovative design provides a highly reflective yet vapour permeable surface which protects the outer sheathing from moisture and ensures the water vapour passes into the external wall cavity. When installed with the foil facing into an unventilated airspace, this provides enhanced thermal performance by effectively blocking infra-red radiation, helping to deliver a low overall U-value of the wall.

Features and benefits:

• Protect Thermo Extreme is CE marked and independently BM TRADA certified, meeting the requirements of BS EN 13859-2, TRADA and NHBC.
• Aligned with STA Advice Note 18, with aged thermal resistance of 0.77 m²K/W, incorporating printing and using typical 600 mm stud centres.
• Achieves Class W1 water resistance to BS EN 1928.
• Class 1 surface spread of flame to BS 476-7.
• Low emissivity reflective surface enhances the thermal performance of the wall.
• Used within an unventilated cavity helps to create a radiant barrier to prevent heat loss and deliver a energy efficiency benefit on the wall's overall thermal performance.
• Resists the passage of water, wind blown snow and dust into the interior of the building.
• Easy to cut and handle with high nail tear resistance. Helps to meet overall U-value requirements set down in Building Regulations Part L1A & Notional Dwelling Specifications.
• UV and heat stabilised.
• Meets the permeability requirements recommended by TRADA and NHBC.
• Corrosion and damage resistant reflective surface.
• High burst strength, tough and durable.
