Glidevale Protect TF200® Breather Membrane - Wall Breather Membrane
Verified by manufacturer 5 months ago
BM Trada
Certificate type
EPD
Certificate type
Breather membranes for external walls.
Application
For use as an external breather membrane in timber framed panels, structural insulated panels (SIPs), cross laminated timber (CLT) panels and steel frame construction.
Description
Protect TF200® is a high-performance, water-resistant membrane with high wet strength and water vapour permeability. TF200 is CE marked and BM TRADA certified and is used as an external breather membrane in timber framed panels, Structural Insulated Panels (SIPs), Cross Laminated Timber (CLT) panels and steel frame construction.
The product provides a primary line of protection to the whole of the external wall during the construction process and a second line of protection against rainwater penetration during the life of the building after the external masonry is built.
Designed for use on the external wall, on the cold side of the insulation.
Features and benefits:
- Resists the passage of water, wind blown snow and dust into the interior of the building.
- UV and heat resistant.
- BM TRADA independently certified.
- Helps to avoid condensation risk within the wall construction complying with BS 5250 and NHBC requirements.
- Easy to cut and handle.
- Much more permeable than recommended by TRADA and STA for wall membranes.
- Good nail tear and tensile strength.
General information
Color | Blue Red Green Grey Guidance for specification option: Anthracite. Manufacturer guidanceBespoke colours also available. |
Finish | Embossed |
Material | Polypropylene |
Shape | Rectangle |
Length | 100000 mm |
Width | 540 mm 1350 mm 2700 mm 3000 mm |
Uniclass | |
CAWS | H51/110 Cladding H51/110 Cladding P10/320 Breather membrane P10/65 Breather membrane H20/155 Sheet cladding (attached to timber battens) H21/130 Breather membrane H22/130 Breather membrane H30/350 Breather membrane H31/280 Breather membrane H40/110 GRC cladding H41/110 GRP single-skin cladding H42/110 Precast homogeneous H42/115 Precast composite H92/785 Breather membrane H20/10 Sheet cladding H21/20 Breather membrane H22/20 Breather membrane H30/50 Breather membrane H31/55 Breather membrane H42/115 Precast composite H42/110 Precast homogeneous |
Product range |
Specification data - Vapour-permeable sheets
Standard | To BS EN ISO 12572, BS EN 13111; BS EN 13859-2. |
Third-party certification | BM TRADA Certified. |
Performance criteria | |
Water vapour properties | Resistance to water penetration to BS EN 13111 - Pass Class W2, No leakage (aged). |
Class (minimum) | W2.Guidance for specification option: To BS EN 13111 - No leakage (aged). |
Material | Polypropylene. |
Form | Spun-bonded. |
Weight (minimum) | 100 g/m².Guidance for specification option: See Roll width for individual roll weights. |
Thickness (minimum) | 0.45 mm. |
Reflective face | No. |
Roll colour | Anthracite. Blue. Red. Green. |
Roll width | 540 mm. Guidance for specification option: Weight (per roll): 5.4 kg. 54 m² per roll. 1350 mm. Guidance for specification option: Weight (per roll): 14 kg. 135 m² per roll. 2700 mm. Guidance for specification option: Weight (per roll): 28 kg. 270 m² per roll. 3000 mm. Guidance for specification option: Weight (per roll): 31 kg. 300 m² per roll. |
Roll length | 100 m. |
Tear strength | Manufacturer's standard. Guidance for specification option: Nail tear strength to EN 12310-1 with mods.
|
TensileStrength | Manufacturer's standard. Guidance for specification option: Tensile strength to EN 12311-1 with mods. Machine direction (MD; along roll):
Cross direction (CD; across roll):
|
Flexibility at low temperature | -40˚C. |
Water vapour resistance | 0.03 MNs/g / 0.005 Sd. Guidance for specification option: To BS EN ISO 12572. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polypropylene |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.33 kg CO₂ eq/kg |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
BM Trada

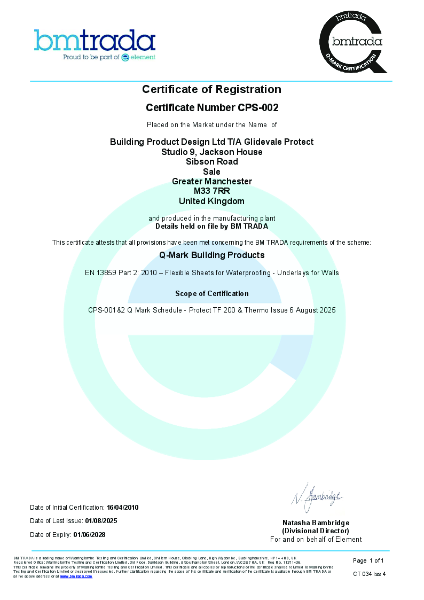

Protect TF200 BM TRADA Certificate No CPS-002
BM Trada
Protect TF200 BM TRADA Schedule No CPS-002
EPD
Protect TF200 EPD Certificate
