Glidevale Protect FCM750 Floor Cassette Membrane - Floor cassette breather membrane
Verified by manufacturer 4 months ago
Floor cassette membrane.
Application
Specifically developed to provide a simple and practical solution for maintaining the integrity of the airtightness system at difficult intermediate floor junctions.
Description
Glidevale Protect FCM750 has been specifically developed to provide a simple and practical solution for maintaining the integrity of the airtightness system at difficult intermediate floor junctions.
Features and benefits:
- Highly vapour-permeable in excess of the minimum value required for wall membranes.
- Completely water and airtight.
- Lightweight and easy to install.
- Can be used as temporary weather protection.
- Available in practical 50 m rolls, in two widths, 0.75 m for standard floors, or 1.0 m-wide for deeper or acoustic floors.
- Triple-ply construction with waterproof and vapour permeable core protected between two layers of nonwoven spunbond.
General information
Color | Grey Guidance for specification option: Grey upper surface with red printed logo. |
Finish | Embossed |
Material | Polypropylene |
Shape | Rectangle Guidance for specification option: Supplied as a roll. |
Length | 50000 mm |
Width | 750 mm 1000 mm |
Uniclass | |
CAWS | P10/320 Breather membrane P10/65 Breather membrane |
SKU Code | GVPROTECTFCM750 |
Specification data - Vapour-permeable sheets
Standard | To BS EN 13859-1 / BS 5250. |
Performance characteristics | Manufacturer's standard. Manufacturer guidanceSee individual properties below or manufacturer's literature for further details. |
Class (minimum) | W1. Guidance for specification option: >2.0m hydrostatic head of water resistance to EN ISO 20811 |
Material | Polypropylene. Guidance for specification option: Triple ply construction with waterproof and vapour permeable core protected between two layers of nonwoven spunbond |
Form | Non-woven. |
Weight (minimum) | 125 g/m². Manufacturer guidanceSee Roll width for roll weight. |
Thickness (minimum) | 0.60 mm. |
Reflective face | No. |
Execution | Manufacturer guidanceFloor cassette membrane to be wrapped round the floor cassette and lapped and taped onto the air tightness barrier of the timber frame wall to maintain the integrity of the air tightness system at difficult intermediate floor junctions. |
Tear strength | Manufacturer's standard. Guidance for specification option: Nail tear strength to EN 12310-1 with mods.
|
TensileStrength | Manufacturer's standard. Guidance for specification option: Tensile strength to EN 12311-1 with mods. Machine direction (MD; along roll):
Cross direction (CD; across roll):
|
Flexibility at low temperature | -40°C. |
Water vapour resistance | 0.17 MNs/g / 0.034 Sd. Guidance for specification option: To BS EN ISO 12572. |
Roll width | 750 mm. Guidance for specification option: Total area (50 m length): 37.5 m². Roll weight: 4.91 kg. 1000 mm. Guidance for specification option: Total area (50 m length): 50 m². Roll weight: 6.55 kg. |
Roll length | 50 m. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polypropylene |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Literature type
Glidevale Protect FCM750
Building Healthy Solutions for Offsite
Case studies

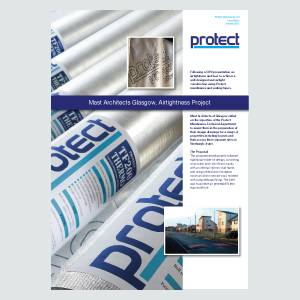

Mast Architects, Glasgow - Airtightness Project
