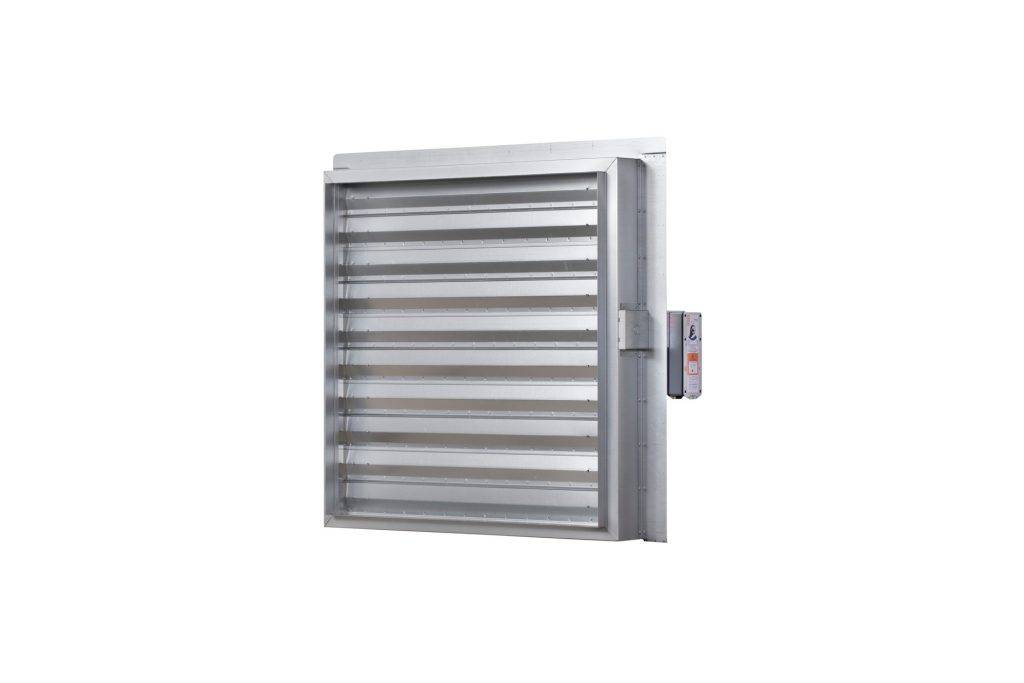

FSD-TD Series Motorised Fire Damper

FSD-TD series multiblade ES rated motorised fire damper is designed to stop the spread of fire and smoke through ducts which pass through fire rated walls, floors, ceilings and cavity barriers.

It is available in galvanised or stainless steel construction in rectangular, circular or flat oval spigot configurations. Both horizontal and vertical application is possible, featuring five frame variations to suit varying applications.

Features and benefits:

• CE marked complying with the requirements of BS EN 15650.
• Tested installation methods in differing supporting constructions (BS EN 1366-2).
• ES classified fire dampers with reduced smoke leakage characteristics to BS EN 1366-2 (test standard) and BS EN 13501-3 (classification document).
• Fully compatible with BSB Electro-mechanical and BSB Addressable damper systems for networked installations.
• Case leakage - Class C EN 1751.
• Blade leakage - Class 2 EN 1751.
• Aerodynamically Air Control tested to BS EN 1751.
• Commissioning friendly: test switch for periodic damper testing, blade position indicator, green “healthy” LED indication - supply voltage present and temperature fuse operational.
• Actuators available in 24V or 230V.
• IP54 degree of protection.
• Replaceable thermal fuse element from outside of the duct.
• Easy FixTM (AF) Angle Frame.
• CE approved “Batt” installation method.
• Multiple section assembly (vertical and horizontal).
• New CE approved “FSD-TD-FC” Installation method.
