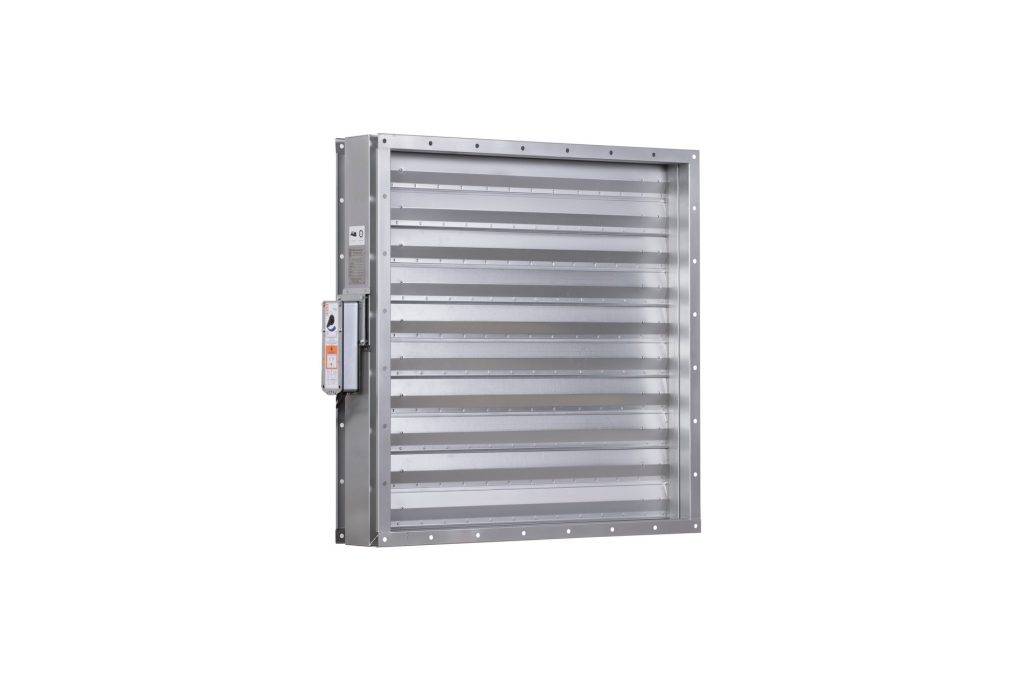

A60 Series Marine Fire Damper

The BSB A60 multi-blade Marine Fire Damper is designed for use on marine vessels to protect the integrity of fire rated bulkheads and decks. Each A60 damper is controlled by an electrical failsafe spring return actuator combined with a thermoelectric tripping device (thermal fuse) and volt free contacts for remote status indication.

Features and benefits:

• For both vertical and horizontal applications, with airflow in either direction.
• MED and Merchant Shipping (Marine Equipment) Regulations certified for A60 fire performance – SI 2016.
• USCG Approved, SOLAS Compliant and Lloyds Register Certified to IMO Fire Test Procedures.
• Leakage to EN1751 with case leakage conforming to classes A, B, and C, and blade leakage to class B.
• Corrosion Tested to BSEN 60068-2-52.
• Vibration Tested to BS EN 60068-2-6.
• EC Type Examination (Module B).
• EC (Module D).
• Certificate of Fire Approval.
• BRE Global Compliant to ISO 9001.
• Casing and blade available in galvanised or stainless steel.
