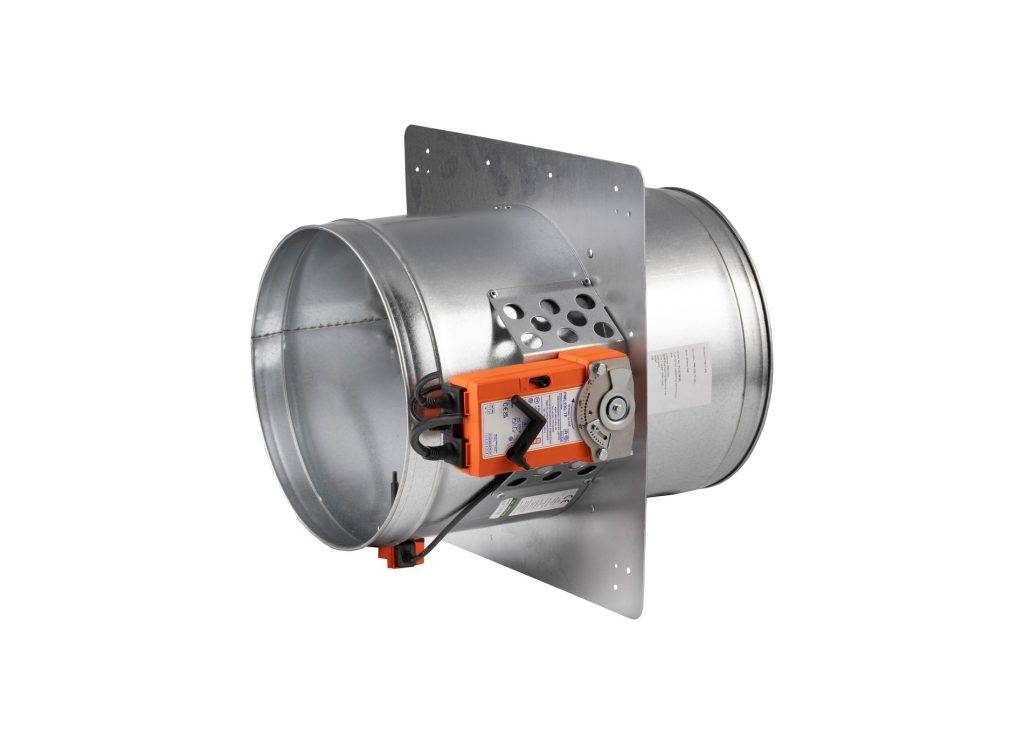

FSD-C Series Motorised Circular Fire Damper
Verified by manufacturer 22 days ago
Motorised circular fire damper for stopping the spread of fire and smoke through circular ducts.
Application
For internal use in buildings:
- Designed to be installed in ducted HVAC systems at fire boundaries.
- Suitable for use in areas of sleeping risk and protected escape routes.
- Available for drywall partitions, masonry walls/ floors, cavity barriers, masonry floors with Batt Infill and flexible fire curtain installations.
Description
The FSD-C Series Motorised Circular Fire Damper has been designed specifically for installations where space is limited. The installation plate, with its engineered installation perforations, acts as a template to allow the marking of the fixing positions on the surface structure to which the plate will be affixed, allowing for a quick and efficient install.
Features and benefits:
- All BSB tested installation methods give at least a E60 classification.
- Unique patented blade design.
- Halogen free LSF cable.
- Exceeds the requirements of EN1366-2.
- Reduced commissioning time.
- Thermal fuse replaceable external to the duct.
- Test switch integral to the thermal fuse allowing the damper to be tested locally and individually.
- LED indication that power is available to the actuator and the thermal fuse is intact.
- Installation plate with template location holes to allow easy installation.
- Fire resistance tested to BS EN 1366-2.
- ES classified to BS EN13501-3.
- CE marked to BS EN 15650.
- Closed blade leakage Class 3 to BS EN 1751.
- Damper casing leakage Class C to BS EN 1751, normal operating conditions – to a maximum of 1000 Pa.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel Stainless steel |
Shape | Circle |
Width | 100 mm 125 mm 150 mm 160 mm 200 mm Manufacturer guidanceDiameter. |
Uniclass | |
CAWS | U90/443 Dampers, fire/ smoke U9/340 Fire dampers |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Stainless steel |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
