FR120MBH Fire-rated Mailboxes

Verified by manufacturer 18 days ago

DAD - DECAYEUX

FR120MBH is a front delivery, front retrieval letterbox, designed and manufactured to BS EN 1363-1:2012, achieved full Fire Rating (Two hours integrity).

Jump to:
BOS
+44 (0)1233 630406 Website

Application

Suitable for:

  • Internal use.
  • Horizontally storing A4 mail for front entry and retrieval.
  • Internal surface mounted, recessed or freestanding applications.

Description

Horizontal letterbox, fire-rated to 120 minutes. Developed to restrict the spread of fire for up to two hours only, and if recessed into a fire-rated wall, will maintain the integrity of the fire-rated wall for up to two hours. Internal use only.


Features and benefits:

  • Robust metal fabrication.
  • Fire-rated mailboxes include a number of specifically developed features to meet Fire Rating standards BS 476-22:1987 Clause 8 which outlines fire testing on building structures.
  • The lock included in fire-rated products uses a fire cover to limit the access for fire to the mailbox lock.
  • The letterbox flap uses an inward sprung hinge to stop the flap from falling out of the box and the mailbox aperture uses an intumescent seal which expands when exposed to a large increase in temperature, closing the gap and restricting the flow of oxygen into the mailbox.
  • This mailbox will also comply to Secured by Design requirements where applicable (contact manufacturer for more details).
  • Aperture restrictor for mail theft protection.
  • Two numbered keys per box. Security lock with 500 variations.
  • Stainless steel hinge.

General information

Color

Bronze

Other

Clear

Beige

Black

Show more

Finish

Powder-coated

Matt

Gloss

Manufacturer guidance

As per manufacturer and includes:

  • Powder-coated enamel, RAL.
  • Silver anodized aluminium.
  • Gold anodized aluminium.
  • Bronze anodized aluminium.
  • Stainless steel.
  • Custom print.
  • Rimex.

Material

Steel

Manufacturer guidance

As per manufacturer and includes electro-galvanized steel.

Shape

Rectangle

Length

360 mm

Width

280 mm

Height

125 mm

Warranty description

Ten year

Uniclass

Pr_40_30_50_46 Letter boxesPrimary

Specification data - Letter boxes

Standard

To BS EN 13724; Compliant to BS 476 Part 22 and conforming to BS 476 Part 6 & 7.

Classification grades (minimum)

-

Type of aperture

2.

Guidance for specification option:

Sprung flap with intumescent lining.

Aperture size

2.

Guidance for specification option:

210 x 25 mm.


Corrosion resistance

3.

Guidance for specification option:

12 years against perforation by rust.

Security

2.

Fire resistance (minimum)

120 minutes.

Size

280 x 125 x 360 mm.

Guidance for specification option:

Volume: 13 L.

Materials

Electro-galvanized steel.

Colour and finish

Powder-coated enamel, RAL.

Guidance for specification option:

All RAL colours available; insert requirements.

Silver anodized aluminium.

Gold anodized aluminium.

Bronze anodized aluminium.

Stainless steel.

Custom printed.

Guidance for specification option:

Insert requirements.

Rimex.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Integral accessories

None.

Engraving.

Guidance for specification option:

Insert requirements..

Surround.

Guidance for specification option:

Insert colour requirements, options as mailbox.

Stands.

Guidance for specification option:

Insert colour requirements, options as mailbox.

Master key.

Soft close flap.

Anti-arson.

Access control.

Manufacturer guidance

For custom print feature, see Colour and Finish options.

Third party accreditation

Secured by Design Homes 2019 guide compliant; Royal Mail compliant.

Sustainability data

Country of material origin

France

Country of product manufacture

France

Material

Steel

Manufacturer guidance

As per manufacturer and includes electro-galvanized steel.

Recyclability

99%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

MULTIPLE MAILBOXES - FR 120 FIRE RATED

MULTIPLE MAILBOXES - FR 120 FIRE RATED

DAD UK - Standard RAL Colour Chart

DAD UK - Standard RAL Colour Chart

DAD UK - DDA guidelines for mailboxes

DAD UK - DDA guidelines for mailboxes

Case studies

Victoria Street Project

Victoria Street Project

Phoenix Court

Phoenix Court

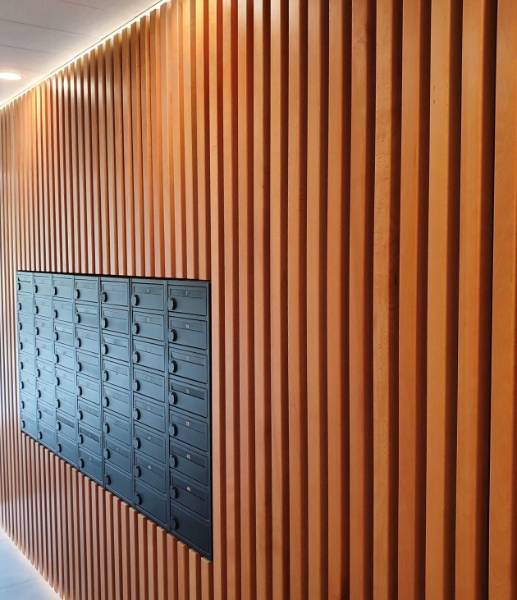

Depford Landings

Depford Landings

Fire-rated mailboxes and MySmartBox

Fire-rated mailboxes and MySmartBox

Fire Rated MySmartBox and Mailboxes

Fire Rated MySmartBox and Mailboxes

Fire-rated MySmartBox and mailboxes unit - Bronze finish

Fire-rated MySmartBox and mailboxes unit - Bronze finish

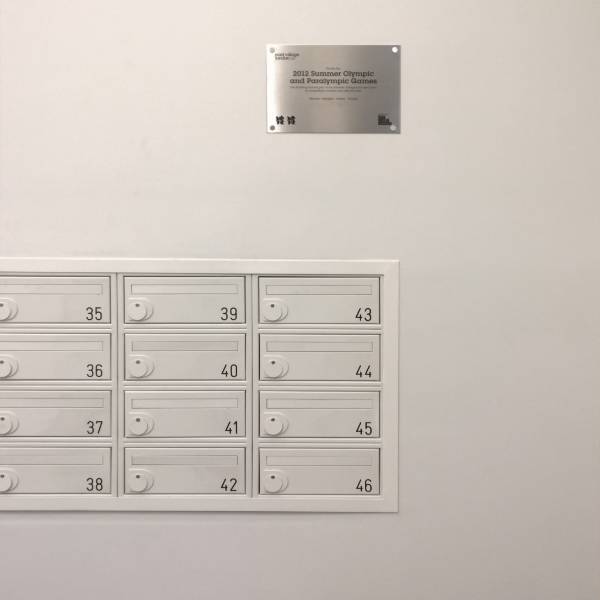

London East Village - Olympic Games 2012
