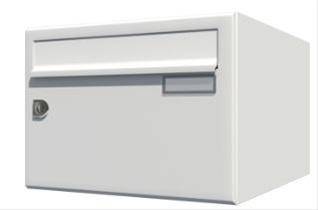

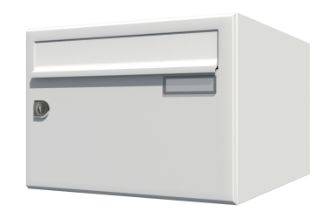

2030-2 - SBD Compliant, Standard Series Mailbox

Verified by manufacturer 7 months ago

DAD - DECAYEUX

Large size standard mailbox suitable for blocks of flats.

Jump to:
BOS
+44 (0)1233 630406 Website

Application

  • Suitable for use in blocks of flats or apartments or offices developments which require a large number of letter boxes with better security features than the small standard mailboxes.
  • Suitable to be fitted internally or externally, on the wall, recessed into a wall or cladding, or free standing.

Description

Large size standard mailbox.


Features and benefits:

  • Conforms to British Standard EN 13724 (accepts A4 post without having to fold or bend the mail, and has an anti-theft baffle).
  • Royal Mail approved.
  • Aperture restrictor for mail theft protection.
  • Robust metal fabrication.
  • Complies to Secured by Design and New Homes Guide 2019 requirements where applicable (contact manufacturer for details).
  • Because of its size and features, it is well suited to apartments or offices developments which require a large number of letter boxes with better security features than the small standard mailboxes.
  • The wide choice of surrounds and frames allow the units to be integrated with either the interior or exterior décor of the building, on the wall, recessed into a wall or cladding, or free standing.
  • The letterboxes and other components can be powder-coated in any RAL colour or in stainless steel.
  • A device is fitted as standard behind the flap to reduce the risk of mail theft.
  • The boxes in this range have good waterproof features.
  • All boxes have a door with a high security DAD lock (30 000 variations) complete with two numbered keys. Extra keys available.
  • Stainless steel hinge.

General information

Color

Bronze

Gold

Silver

Other

Finish

Powder-coated

Anodized

Manufacturer guidance

As per manufacturer and includes:

  • Powder-coated enamel, RAL.
  • Silver anodized aluminium.
  • Gold anodized aluminium.
  • Bronze anodized aluminium.
  • Stainless steel.
  • Custom print.
  • Rimex.

Material

Steel

Manufacturer guidance

As per manufacturer and includes electro-galvanized steel.

Shape

Rectangle

Length

380 mm

Width

300 mm

Height

220 mm

Warranty description

Ten year

Uniclass

Pr_40_30_50_46 Letter boxesPrimary

Specification data - Letter boxes

Standard

To BS EN 13724.

Classification grades (minimum)

-

Type of aperture

1.

Guidance for specification option:

Gravity flap with noise reduction joint.

2.

Aperture size

2.

Guidance for specification option:

260 x 35 mm.

Corrosion resistance

3.

Guidance for specification option:

12 years against perforation by rust.

Security

2.

Size

300 x 220 x 385 mm.

Guidance for specification option:

Volume: 25 L.

Materials

Electro-galvanized steel.

Colour and finish

Powder-coated enamel, RAL.

Guidance for specification option:

All RAL colours available; insert requirements.

Silver anodized aluminium.

Gold anodized aluminium.

Bronze anodized aluminium.

Stainless steel.

Custom printed.

Guidance for specification option:

Insert requirements.

Rimex.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Integral accessories

None.

Engraving.

Guidance for specification option:

Insert requirements.

Surround.

Guidance for specification option:

Insert colour requirements, options as mailbox.

Stands.

Guidance for specification option:

Insert colour requirements, options as mailbox.

Soft close flap.

Master key.

Extra keys.

Access control.

Anti-arson.

Locking

Standard.

Electronic.

High security patented TARA16c.

Third party accreditation

Secured by Design Homes 2019 guide compliant; Royal Mail compliant.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

France

Recyclability

99%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %
