2040 - SBD Compliant, Standard Series Mailbox

Verified by manufacturer 8 months ago

DAD - DECAYEUX

Standard vertical mailbox suitable for blocks of flats.

Jump to:
BOS
+44 (0)1233 630406 Website

Application

Suitable for use in a block of flats and for wall-mounted, freestanding or recessed applications.

Description

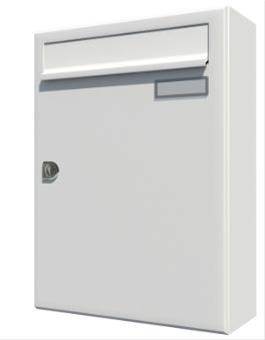

Standard vertical mailbox.


Features and benefits:

  • Space-saving postal box conforming to British Standard EN 13724 (accepts A4 post without having to fold or bend the mail, and has an anti-theft baffle).
  • Royal Mail approved.
  • Robust metal fabrication.
  • SBD compliant: Can be approved by Secured by Design if fitted internally in a lobby, but unlikely to comply if installed outside (contact manufacturer for more details).
  • Because of its narrow size the model 2040 is well suited to projects which require a large number of letter boxes in an internal lobby area. These can be installed internally or externally.
  • Aperture restrictor for mail theft protection.
  • The wide choice of surrounds and frames allow the units to be integrated with either the interior or exterior décor of the building, on the wall, recessed into a wall or cladding, or free standing.
  • The mailboxes and other components can be powder coated in any RAL colour or in stainless steel.
  • A device is fitted as standard behind the flap to reduce the risk of mail theft.
  • The boxes in this range have good waterproof features.
  • All boxes have a door with a security DAD lock complete with two numbered keys. Extra keys available.
  • Two numbered keys per box.
  • Security lock with 500 variations.
  • Stainless steel hinge.

General information

Shape

Rectangle

Color

Bronze

Gold

Silver

Other

Finish

Anodized

Powder coated

Guidance for specification option:

All RAL colours available; insert requirements.

Manufacturer guidance

As per manufacturer and includes:

  • Powder-coated enamel, RAL.
  • Silver anodized aluminium.
  • Gold anodized aluminium.
  • Bronze anodized aluminium.
  • Stainless steel.
  • Custom print.
  • Rimex.

Material

Stainless steel

Steel

Manufacturer guidance

As per manufacturer and includes electro-galvanized steel.

Warranty description

Ten year

Size

270 x 370 x 110 mm

Uniclass

Pr_40_30_50_46 Letter boxesPrimary

Specification data - Letter boxes

Standard

To BS EN 13724.

Classification grades (minimum)

-

Type of aperture

1.

Guidance for specification option:

Gravity flap with noise reduction joint.

2.

Aperture size

2.

Guidance for specification option:

230 x 35 mm.

Corrosion resistance

3.

Guidance for specification option:

12 years against perforation by rust.

Security

2.

Size

270 x 370 x 110 mm.

Guidance for specification option:

Volume: 11 L.

Materials

Electro-galvanized steel.

Colour and finish

Powder-coated enamel, RAL.

Guidance for specification option:

All RAL colours available; insert requirements.

Silver anodized aluminium.

Gold anodized aluminium.

Bronze anodized aluminium.

Stainless steel.

Custom printed.

Guidance for specification option:

Insert requirements.

Rimex.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Integral accessories

None.

Engraving.

Guidance for specification option:

Insert requirements.

Surround.

Guidance for specification option:

Insert colour requirements, options as mailbox.

Stands.

Guidance for specification option:

Insert colour requirements, options as mailbox.

Soft close flap.

Master key.

Extra keys.

Access control.

Anti-arson.

Manufacturer guidance

For custom print option, see Colour and Finish.

Locking

Standard.

Electronic.

High security patented TARA16c.

Third party accreditation

Secured by Design Homes 2019 guide compliant; Royal Mail compliant.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

France

Recyclability

99%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
-

1

Literature

MULTIPLE MAILBOXES - STANDARD SERIES

MULTIPLE MAILBOXES - STANDARD SERIES
