DAD009 Certified Secured by Design Mailboxes
Verified by manufacturer 7 months ago
Secured By Design
Certificate type
Certified Secured By Design mailbox/ letterbox.
Application
Suitable for:
- Internal and external use and can be surface mounted, recessed or freestanding.
- Use in homes or apartments blocks.
Description
Certified Secured By Design mailbox/ letterbox/ TS009:2019.
Features and benefits:
- The patented locking mechanism is activated using a DAD six-pin security rim lock conforming to EN 1303:2005 Grade 4.
- Supplied with an official Secured by Design certificate proving it has been successfully tested to provide maximum security against mail theft attempts.
- Three patented numbered keys per box. Lock with 30 000 variations, conforms to EN 1303 Grade 4.
- Stainless steel hinge with security hinge covers.
General information
Color | Silver Other Manufacturer guidanceAs per manufacturer and includes:
|
Finish | Powder-coated |
Material | Steel Manufacturer guidanceAs per manufacturer and includes electro-galvanized steel. |
Shape | Rectangle |
Length | 330 mm |
Width | 325 mm |
Height | 380 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N10/96 Mailboxes N10/400 Mailboxes |
Specification data - Letter boxes
Standard | To BS EN 13724; Lock: To EN 1303:2005 Grade 4. |
Classification grades (minimum) | |
Type of aperture | 1.2.Manufacturer guidanceGravity flap. |
Aperture size | 2.Guidance for specification option: 230 x 35 mm. |
Corrosion resistance | 3.Guidance for specification option: 12 years against perforation by rust. |
Size | 325 x 380 x 330 mm.Guidance for specification option: Volume: 41 L. |
Materials | Electro-galvanized steel. |
Colour and finish | Powder-coated enamel, RAL.Guidance for specification option: All RAL colours available; insert requirements. Custom print. |
Integral accessories | None.Engraving.Guidance for specification option: Insert requirements. Specify whether door and/ or flap, and required text (alphanumerical). Permanent engraving with ink fill. Soft close flap.Master key.Access control.Anti-arson.Stands.Surround. |
Third party accreditation | Secured by Design TS009:2019 tested and certified; Royal Mail compliant. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 99 Self declared |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
Third party certifications
Secured By Design
Secured by Design certificate
Literature
MULTIPLE MAILBOXES - HIGH SECURITY
MULTIPLE MAILBOXES - SECURED BY DESIGN
Case studies
DAD 009 - RAM QUARTER

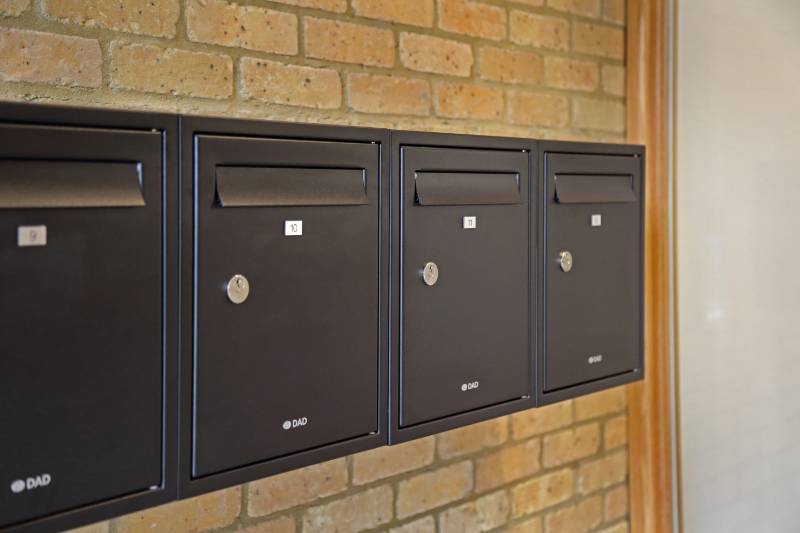

Bethany House
