Fire Protection FIRETEX® FX6002 - Ultra Fast-Drying Intumescent Coating
Verified by manufacturer 3 days ago
EPD
Certificate type
A three component, ultra fast-drying and durable intumescent coating designed to give the shortest possible time from application to handling for fire resistance periods up to two hours.
Application
To be applied off site.
Description
A three component, ultra fast-drying and durable intumescent coating designed to give the shortest possible time from application to handling for fire resistance periods up to two hours.
Can be handled in as little as one hour while providing a highly durable and aesthetically pleasing finish.
The cured paint film is durable, damage resistant and can be exposed to the weather after four hours at minimum 15°C.
Features and benefits:
- Excellent passive fire protection.
- Rapid drying.
- Durable.
- Impact resistance.
- Easy application.
- High film build.
General information
Color | Grey |
Finish | Coated |
Material | Methyl methacrylate |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M61/160 Off-site coating to primed steel M61/150 Off-site coating to unprimed steel M61/170 Off-site coating to galvanized steel G10/640 Shop painting G10/660 Shop plus site painting |
SKU Code | FX6002 |
Specification data - Intumescent protective coatings
Classification data | |
Composition | Solvent-based. Guidance for specification option: Cleaner: No. 9 or E+B. FX6002 must not be thinned. |
Colour | Light grey. |
Standards | Independently fire tested and approved to major European and national standards including: Tested to BS476-20/21 (UL Certificate BS-RC-0022); EN 13381-8 (ref: ETA 20/1261); EN 13381-9; CE Mark Number: 2812-CPR-GA5038. Guidance for specification option: Further standards include;
Tested and assessed in accordance with the ASFP ‘Yellow Book’ 5th edition for Cellular beam fire protection. |
Primer | Not required. Required. Guidance for specification option: Several primers have been approved for use under this product. Consult manufacturer for details and insert requirements. Must not be applied directly to galvanized steel and zinc rich primers. |
Top coat | Required. Guidance for specification option:
Not required. |
Application method | Specialised Plural Component Airless Spray. Brush or roller for small repair areas or stripe coat. |
Coverage | Theoretical (airless spray): 0.34 m²/kg (0.5 m²/L). |
Drying time | At +10°C: to touch: 2 hours; to handle: 3 hours; to recoat: 2½ hours. At +15°C: to touch: 1 hour; to handle: 2 hours; to recoat: 1½ hours. At +23°C: to touch: 45 minutes; to handle: 1 hour; to recoat: 1 hour. |
Flash point | Base: 10°C; hardener (additive): 10°C. |
Volume solids | To ASTM-D2697-03, 92% ±3%. |
VOC content | 24 g/L calculated from solids by volume determination. |
Density | 1.47 kg/L. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Methyl methacrylate |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 3.34 (kg CO₂ eq/kg) Declared unit : 3.34 | |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Product certifications
Product certifications

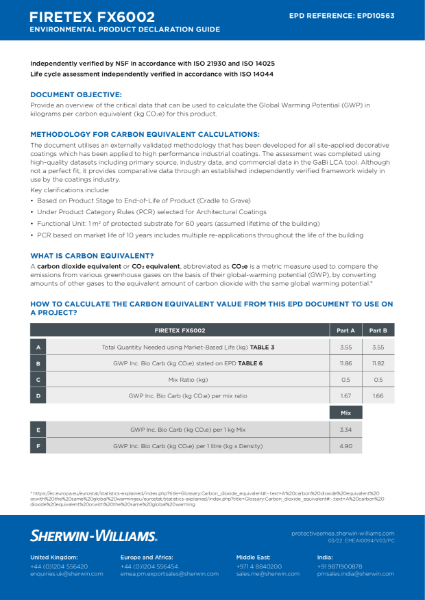

EPD
FX6002 EPD Certificate
Literature
Steel Protection FIRETEX® FX6002 Product Data Sheet
