Fire Protection FIRETEX® FX2007 - Fire Protection
Verified by manufacturer 3 days ago
A single-pack thin-film intumescent coating designed for in-shop application by airless spray, to provide fire resistance for up to 60 minutes on structural steel.
Application
Civil infrastructure.
Designed for in-shop application by airless spray, to provide fire resistance for up to 60 minutes on structural steel.
After appropriate drying, FIRETEX FX2007 specifications can be exposed to the weather for up to six months provided that the specific use or storage does not lead to ponding water due to rainfall, condensation or other site/ transportation/ storage circumstances.
Description
A single-pack thin-film intumescent coating designed for in-shop application by airless spray, to provide fire resistance for up to 60 minutes on structural steel.
Features and benefits:
- Excellent passive fire protection.
- Fast drying.
- Easy application.
- High film build.
General information
Color | White |
Material | Solvent-based |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M61/170 Off-site coating to galvanized steel M61/160 Off-site coating to primed steel M61/150 Off-site coating to unprimed steel G10/660 Shop plus site painting G10/640 Shop painting |
SKU Code | FX2007 |
Specification data - Intumescent protective coatings
Classification data | |
Composition | Solvent-based. Guidance for specification option: Recommended thinner: No 2. |
Colour | White. Guidance for specification option: White base with blue additive. |
Standards | Tested and assessed to EN 13381-8 and BS EN 13381-9. |
Third-party certification | CE Mark Number: 2812-CPR-GA5055. European Technical Assessment: ETA-22/0352. Certifire Approved Certificate CF6088. |
Primer | Required. Guidance for specification option:
Not required. |
Top coat | Not required. Guidance for specification option: For certain dry, internal situations where the final colour / appearance is not critical, then FIRETEX FX2007 may remain un-top coated. Required. Guidance for specification option: Insert requirements:
In all instances for subsequent re-decoration, use FIRETEX M71V2, Acrolon C137V2, Acrolon C237, Acrolon A7300 or Sher-Cryl M770 as appropriate. |
Application method | Airless spray. |
Drying time | At +15°C: to touch: 30 minutes; to recoat: 4 hours. At +23°C: to touch: 20 minutes; to recoat: 4 hours. Manufacturer guidance'To handle' time will depend on the total thickness of FIRETEX FX2007 to be applied. |
Flash point | 2°C. |
Volume solids | To ASTM-D2697-03, 75% ±4%. |
VOC content | 272 g/L determined practically in accordance with UK Regulations PG6/23. 351 g/L calculated from formulation to satisfy EC Solvent Emissions Directive. 266 g/kg content by weight from formulation, to satisfy EC Solvent Emissions Directive. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Solvent-based |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 2.66 (kg CO₂ eq/kg) Declared unit : 2.66 Lower emissions | |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

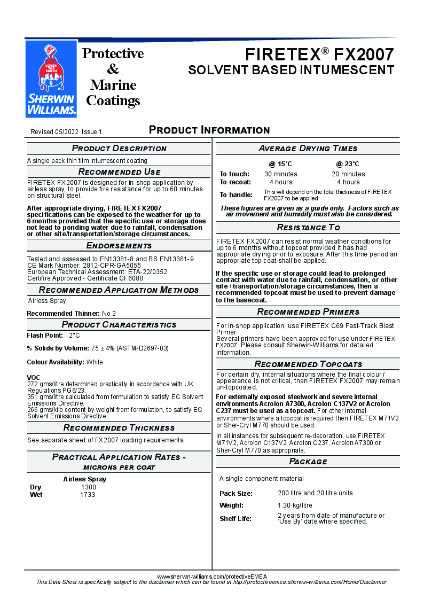

Fire Protection FIRETEX® FX2007 Product Data Sheet
