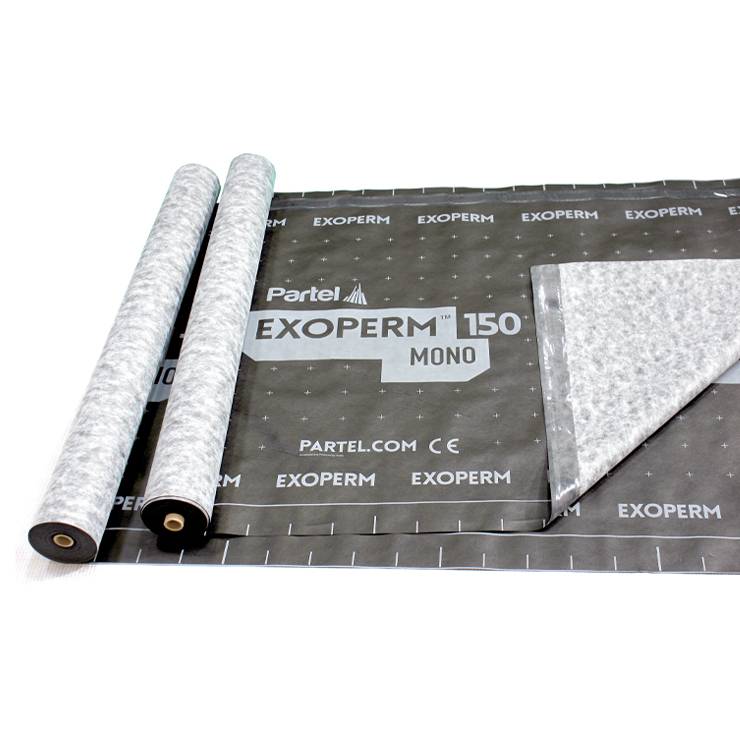

EXOPERM MONO 150 Connex - Breather Membrane - Monolithic Breather Membrane

Verified by manufacturer 2 months ago

PARTEL Third party certifications:
  • DoP

    DoP

    Certificate type

Breathable monolithic membrane, with integrated adhesive tapes, suitable for external wall and roof applications. Watertight, airtight and vapour permeable. UKCA approved. CE approved.

Jump to:
+44 20 3740 1918 Website

Application

EXOPERM MONO 150 Connex is an external breather membrane designed for use on the cold side of insulation on facade wall and roof applications.


              Suitable for:

  • Facades with closed joints
  • Timber and steel framed constructions
  • Warm, cold and hybrid roof applications
  • Pitched or flat roofs
  • Sarking boards
  • All insulation types

Description

EXOPERM MONO 150 Connex is a superior performance breather membrane, with integraged adhesive tapes, that is UV stabilised, boasts market-leading tensile and tear strengths, and is incredibly vapour open with an Sd value of 0.07m. The monolithic layer ensures protection against driving rain, expels moisture and creates a wind tight barrier.


Features and benefits:

  • Integrated tapes that facilitate easier, permanent connections.
  • Developed based on Monolithic Technology.
  • Highly breathable membrane with a low Sd value 0.07 m.
  • Class W1 resistance to water penetration.
  • Optimal UV and temperature resistance.
  • Resistant to driving rain and wind.
  • Windtight, but diffusion open.
  • Airtight System, featuring an air permeance value of <0.001m3/(m2h).
  • Excellent aging resistance due to the Monolithic Technology.

General information

Color

Black

Finish

Textured

Material

Polypropylene

Shape

Other

Length

50000 mm

Width

1500 mm

Warranty description

Ten year

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

CAWS

H67/290 Vapour-permeable underlay

H67/24 Vapour-permeable underlay

H65/235 Vapour-permeable underlay

H65/22 Vapour permeable underlay

H64/307 Vapour-permeable underlay

H64/22 Vapour-permeable underlay

H62/3 Roof slating

H62/235 Vapour-permeable underlay

H61/235 Vapour-permeable underlay

H61/22 Vapour-permeable underlay

H60/235 Vapour-permeable underlay

H60/22 Vapour-permeable underlay

H51/110 Cladding

H51/110 Cladding

H20/155 Sheet cladding (attached to timber battens)

H22/130 Breather membrane

H21/130 Breather membrane

H30/350 Breather membrane

H31/280 Breather membrane

H40/110 GRC cladding

H42/115 Precast composite

H42/110 Precast homogeneous

H92/785 Breather membrane

P10/320 Breather membrane

H30/50 Breather membrane

P10/65 Breather membrane

H42/115 Precast composite

H42/110 Precast homogeneous

H20/10 Sheet cladding

H21/20 Breather membrane

H22/20 Breather membrane

H31/55 Breather membrane

H41/110 GRP single-skin cladding

Product range

Breather Membranes

Specification data - Vapour-permeable sheets

Standard

To EN 13859-1 and EN 13859-2.

Class (minimum)

W1.

Material

Non-woven polypropylene fabric.

Form

Non-woven.

Weight (minimum)

150 g/m².

Sd value

To EN ISO 12572, 0.07 m.

Reaction to fire

To EN 13501-1, Class E.

Air permeability

To EN 12114, 0.001 m³/m².h. 100 Pa.

Tear resistance

MD/ CD to EN 12310-1, 130 N/ 160 N.

TensileStrength

MD/CD to EN 12311-1, 255 N/ 145 N/ 50 mm.

UV resistance

6 months (wall); 3 months (roof).

Vapour resistance

0.35 MNs/g.

Manufacturer guidance

g-value

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Polypropylene

Expected Life

Lifetime

Third party certifications

DoP

DoP

EXOPERM MONO 150 CONNEX DoP

Literature

EXOPERM MONO 150 CONNEX Technical Data Sheet

EXOPERM MONO 150 CONNEX Technical Data Sheet

EXOPERM MONO 150 Product Brochure

EXOPERM MONO 150 Product Brochure
