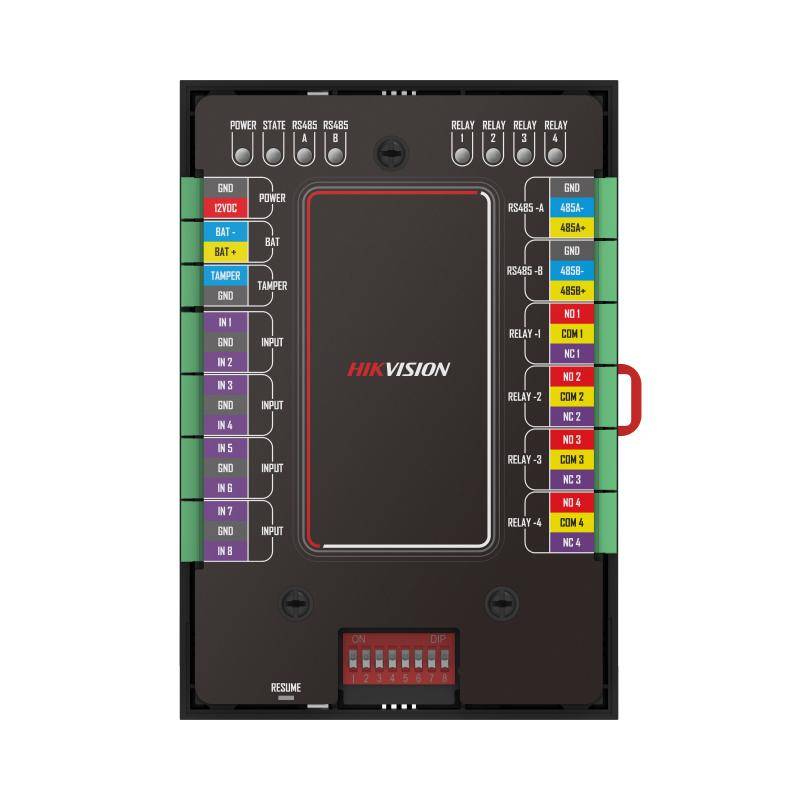

DS-K2M0012X Electronic Access Control - Door Controller - I/O Expansion Module
Verified by manufacturer 2 days ago
I/O expansion module supporting communication with access controller via RS-485 with eight inputs and four outputs.
Application
Used as an expansion module to support additional input and output connections for access control systems, enabling communication with the main access controller via RS-485 interface.
Description
The DS-K2M0012X is an I/O expansion module that supports communication with an access controller via RS-485.
Features and benefits:
- Supports eight inputs and four outputs.
- Supports communication with access controller via RS-485 protocol.
- Supports battery charging and discharging.
- Supports indicators for power status, communication status, running status, and door status.
- Compatible with 270X and 262X series access controllers.
General information
Color | Black |
Material | Other |
Shape | Rectangle |
Length | 30.8 mm Guidance for specification option: Overall depth. |
Width | 89.5 mm |
Height | 124 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/363 Access control units |
SKU Code | DS-K2M0012X |
Specification data - Access control units
Classification data | |
Type of operation | Networked. |
Communication interface | Eight x alarm input; four x alarm output; one x TAMPER; two x RS-485 (for access controller). |
Visual indication | One for indicating power status; one for running status; two for communication status; four for alarm output. |
Rated operational voltage (Ue) | 12 V d.c. Guidance for specification option: ±15%. |
Rated operational current (In) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Battery backup | |
Battery location | Guidance for specification option: Supports backup battery access, charging and discharging are available. Insert requirements or omit. |
Random access memory (RAM) capacity (minimum) | 64 KB. |
Storage memory capacity | 512 KB. |
Enclosure | |
Material and finish | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Colour | Black with coloured labels. |
Properties | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Operating system | MCU (M5S processor). |
Power consumption | ≤5 W. |
Working temperature | -10 to +55°C. |
Humidity | 0–90% (non-condensing). |
Installation | Guide rail. |
Sustainability data
Material | Other |
Literature

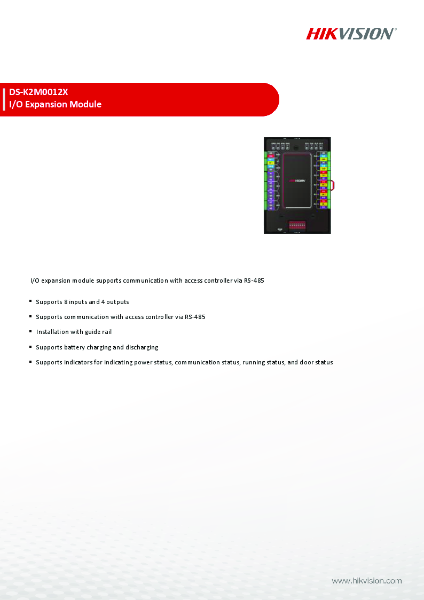

DS-K2M0012X - Product Data Sheet
