DT.BSMT.CH
WRAS
Certificate type

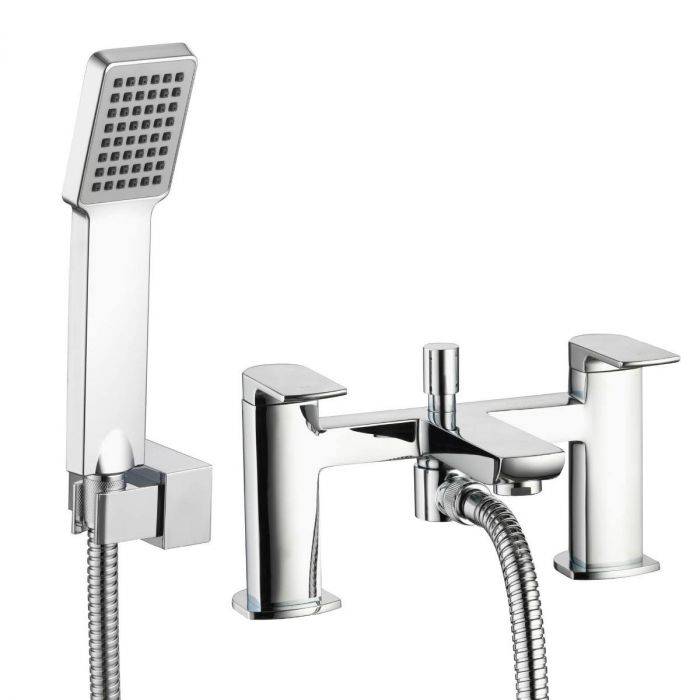

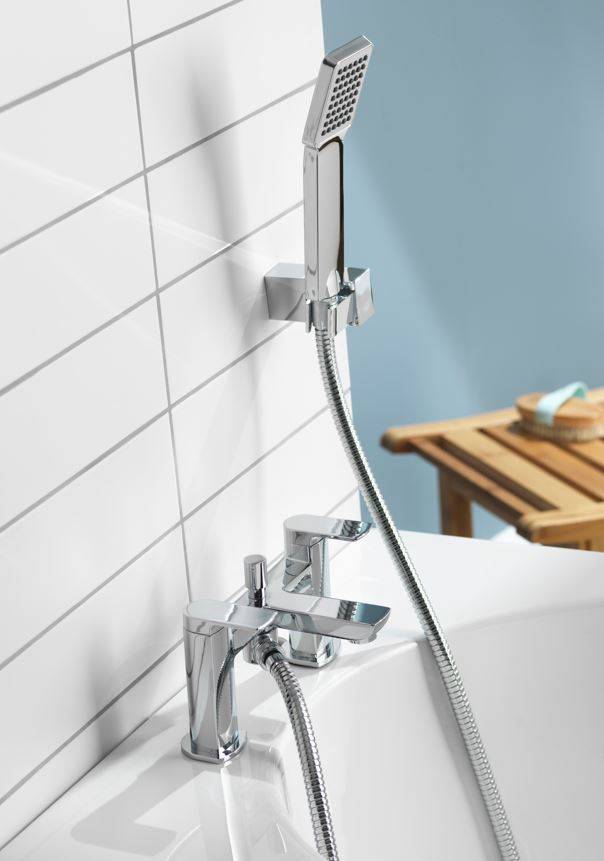

Aqualisa Downtown chrome and matt black bath shower mixer tap.
Bath shower mixer tap.
The Downtown Bath Shower Mixer Tap offers a high-performance bath mounted tap option, offering the flexibility and convenience of a bath filler and handheld shower attachment. Dual lever operation allows you to find your perfect temperature easily, and the simple to use diverter allows you to seamlessly switch between tap flow and shower head. Supplied with a 65 mm shower head and accompanying holder, Central Bath Shower Mixer Tap comes complete with a 1.25 mm stainless steel shower hose. Maintain your shower head with ease, thanks to the soft rub shower nozzles which helps to prevent limescale build-up. Available for low- and high-pressure water systems, Aqualisa Downtown taps feature a solid brass body with durable zinc handles offering a contemporary look within the bathroom.
Features and benefits:
Water system compatibility:
Color | Silver Black |
Finish | Chrome Gloss Matt |
Material | Brass Zinc Stainless steel Plastic |
Shape | Square |
Length | 140 mm |
Width | 230 mm |
Height | 121 mm |
Warranty description | Five year Guidance for specification option: Valve guarantee. Two year Guidance for specification option: Kit guarantee. |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Product range |

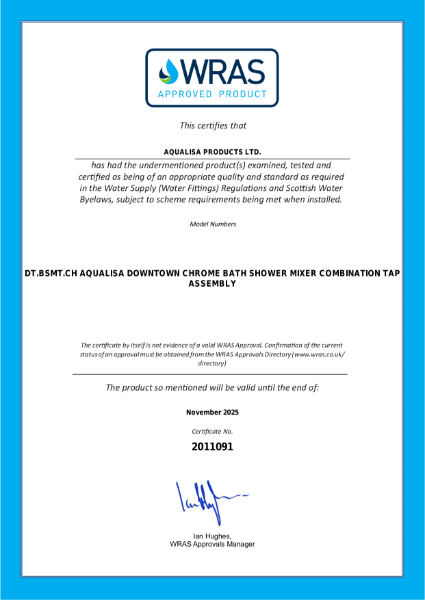

Approvals | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Bath mixer tap with shower hose and handspray. |
Materials | |
Body | Brass, zinc, chrome plated, plastic. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | At 5 bar: 57.3 L/m (full hot), 54.9 L/m (full cold), 70.5 L/m (mixed), 31 L/ min (shower). |
Water supply temperature (maximum) | 5–65°C. |
Pressure | 0.2–5 bar (static). |
InletConnectionSize | 2 x 3/4” BSP male. |
OutletConnectionSize | 1/2" BSP. |
HoseConnectionSize | 1/2" BSP. |
Handle type | Dual levers for hot and cold. |
Tap holes | Two holes. |
MountingType | Deck mounted with wall mounted handset holder. |
InletPatternType | Hot (left), cold (right). Guidance for specification option: as viewed from the front. |

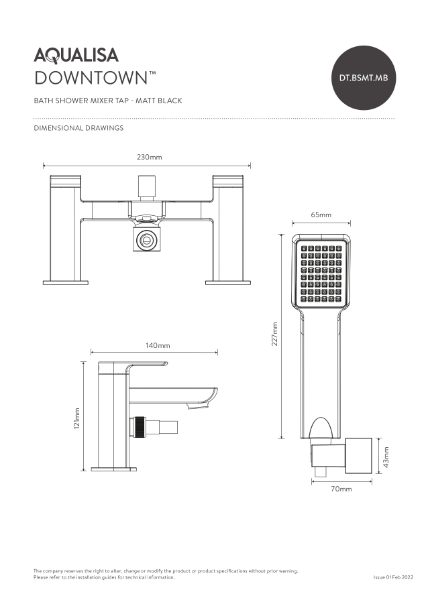

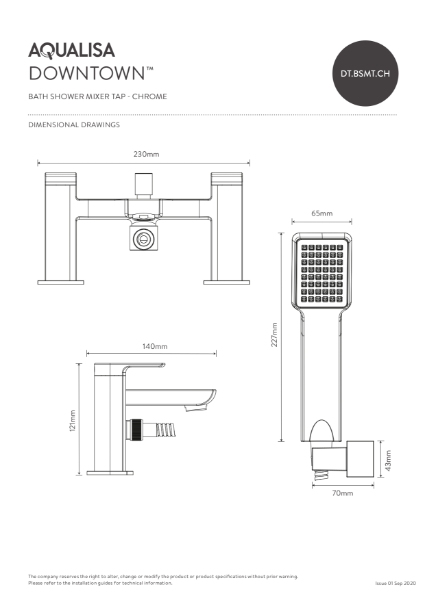

Dimensions | 230 x 140 x 121 mm. |
Weight | 2.290 kg. Guidance for specification option:
|
Hose | 1.25 m Chrome plated stainless steel steel hose. |
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | % Guidance for specification option: Packaging recycled content:
|
