Central Bath Shower Mixer Tap
Verified by manufacturer 6 months ago
WRAS
Certificate type

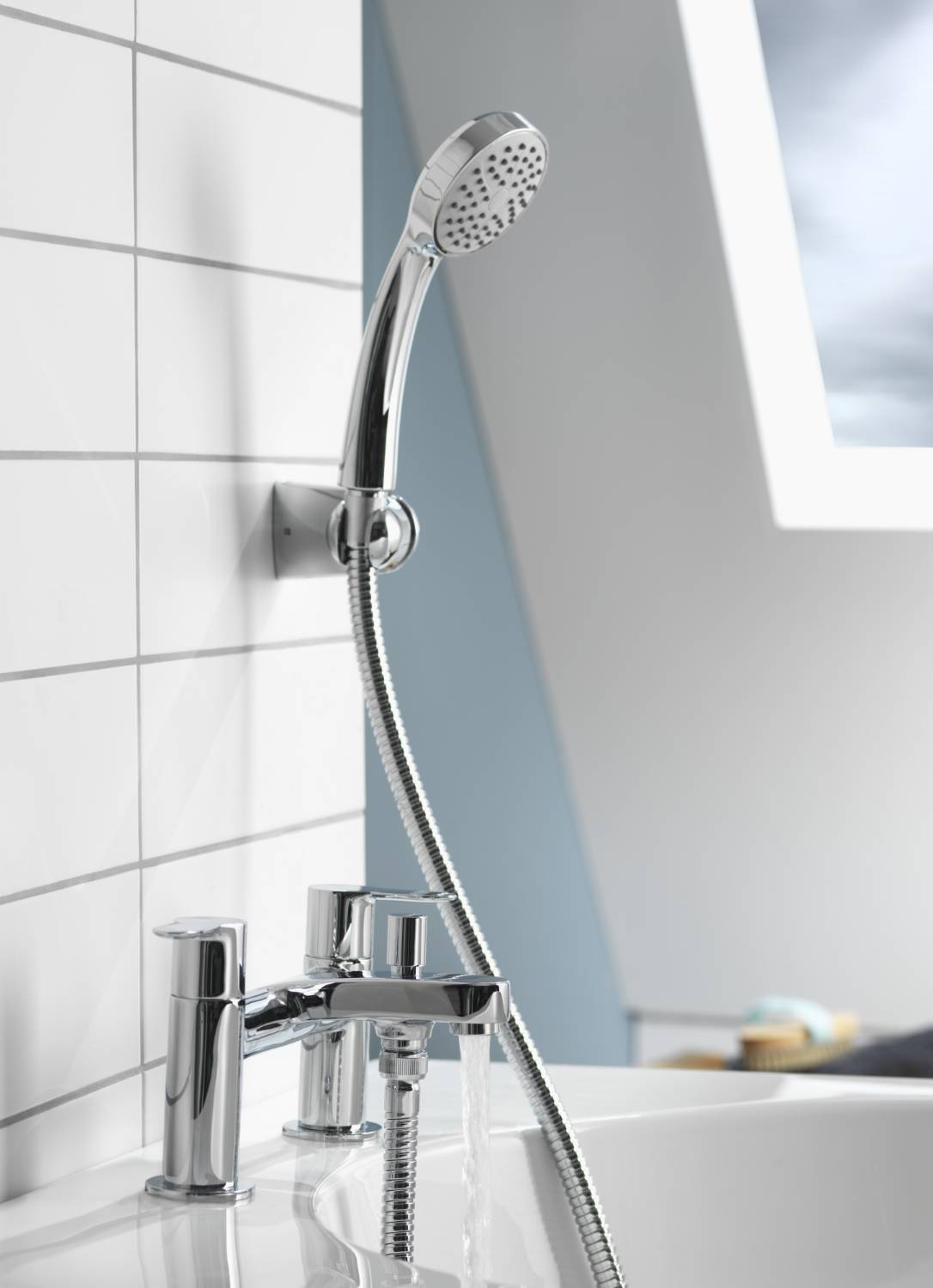

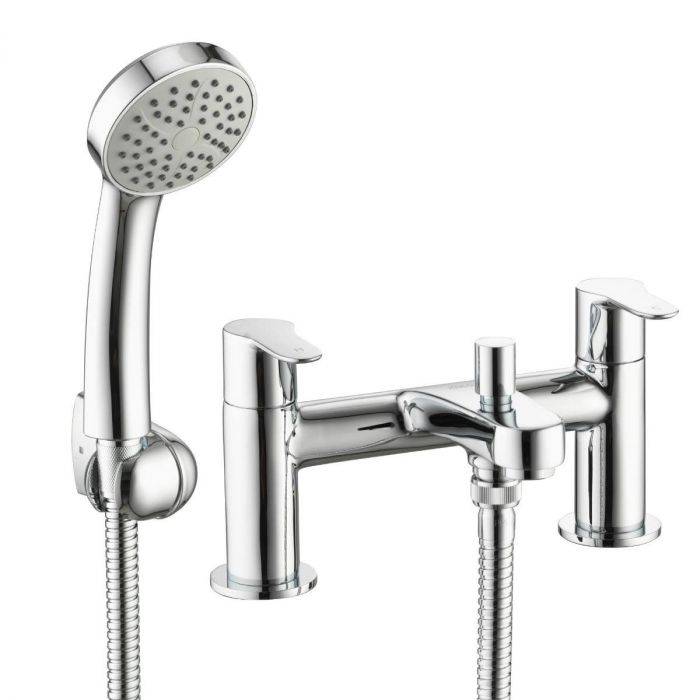

Aqualisa Central chrome bath shower mixer tap.
Application
Mixer tap bathroom applications.
Description
The Central Bath Shower Mixer Tap offers a high-performance bath mounted tap option, offering the flexibility and convenience of a bath filler and handheld shower attachment. Dual lever operation allows you to find your perfect temperature easily, and the simple to use diverter allows you to seamlessly switch between tap flow and shower head. Supplied with an 80 mm shower head and accompanying holder, Central Bath Shower Mixer Tap comes complete with a 1.25 m stainless steel shower hose. Maintain your shower head with ease, thanks to the soft rub shower nozzles which helps to prevent limescale build-up. Available for low- and high-pressure water systems, Aqualisa Central taps feature a solid brass body with durable zinc handles offering a contemporary look within the bathroom.
Features and benefits:
- Soft rub shower head nozzles for easy cleaning.
- Supplied with 80 mm one function round shower handset.
- Rounded design.
- 1.25 m Chrome plated stainless steel steel hose.
Water system compatibility:
- Gravity.
- Boosted gravity.
- Combi.
- Balanced high pressure water systems.
General information
Color | Silver |
Finish | Chrome Gloss |
Material | Brass Zinc Plastic Stainless steel |
Shape | Oval |
Length | 142.5 mm |
Width | 230 mm |
Height | 123 mm |
Warranty description | Five year Guidance for specification option: Valve. Registration required. Two year Guidance for specification option: Kit guarantee. |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Product range |
Specification data - Bath mixer taps with shower hose and hand sprays
Approvals | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Bath mixer tap with shower hose and handspray. |
Materials | |
Body | Brass, zinc, chrome plated, plastic. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | At 5 bar: 55.74 L/m (full hot), 55.92 L/m (full cold), 78.85 L/m (mixed), 27.40 L/min (shower). |
Water supply temperature (maximum) | 5–65°C. |
Shower head | 202 x 80 x 57 mm. |
Handle type | Dual levers for hot and cold. |
Pressure | 0.2–5 bar (static). |
HoseConnectionSize | 1/2" BSP. |
InletConnectionSize | 2 x 3/4" BSP male. |
OutletConnectionSize | 1/2" BSP. |
InletPatternType | Hot (left), cold (right). Guidance for specification option: as viewed from the front. |
Tap holes | Two holes. |
MountingType | Deck mounted with wall mounted handset holder. |
Weight | 2.0955 kg. Guidance for specification option:
|

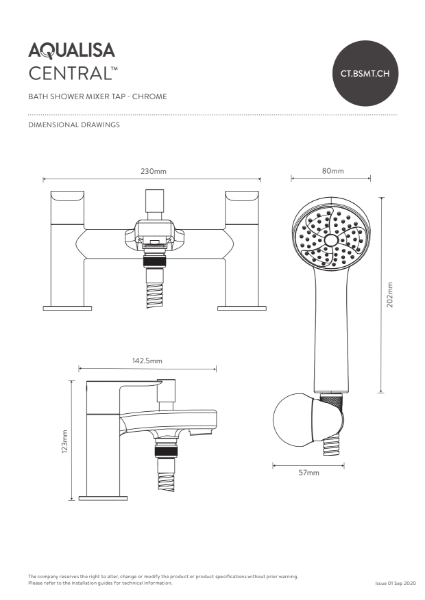

Mixer tap | 230 x 142.5 x 123 mm. |
Hose | 1.25 m chrome plated stainless steel hose. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | % Guidance for specification option: Packaging recycled content:
|
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
WRAS
CT.BSMT.CH_certificate_1802140
Literature
Aqualisa Taps Brochure
CT.BSMT.CH _Spec Sheet
Aqualisa Taps Installation and User Guide
