Central Deck Mounted Bath Filler Tap
Verified by manufacturer 6 months ago
WRAS
Certificate type

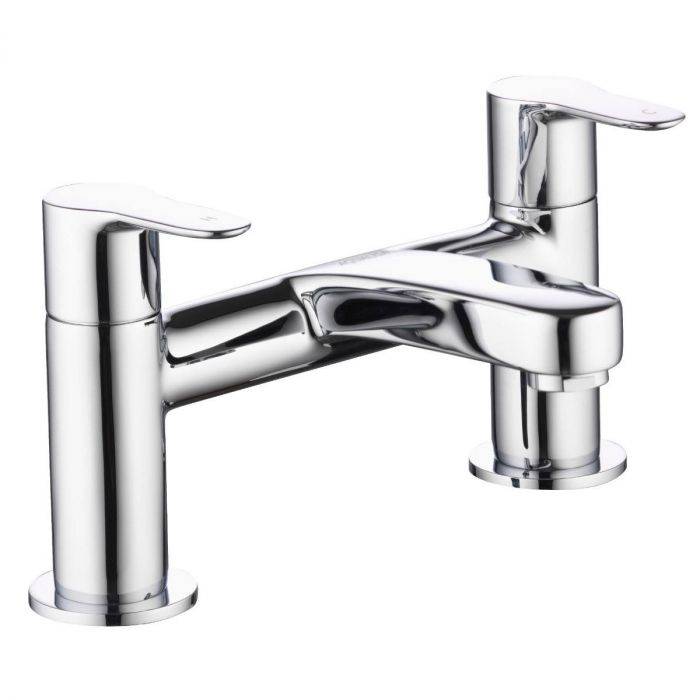

Aqualisa Central chrome bath deck filler.
Application
Bath filler tap
Description
The Central Bath Mixer Tap offers a high-performance bath mounted tap option, offering the flexibility and convenience of a bath filler in a stylish and compact design. Dual lever operation allows you to find your perfect temperature with ease, offering you complete control of your bath. Available for low- and high-pressure water systems, Aqualisa Central taps feature a solid brass body with durable zinc handles offering a contemporary look within the bathroom.
Features and benefits:
- Suitable for both low and high pressure systems.
- Rounded design.
- Brass body with zinc handles.
Water system compatibility:
- Gravity.
- Boosted gravity.
- Combi.
- Balanced high pressure water systems.
General information
Color | Silver |
Finish | Chrome Gloss |
Material | Brass Zinc Plastic |
Shape | Oval |
Length | 142 mm |
Width | 230 mm |
Height | 123 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Product range |
Specification data - Bath mixer taps
Approvals | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Filler taps. |
Materials | |
Body | Brass, zinc, chrome plated, plastic. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | At 5 bar: 62.40 L/m (full hot), 59.041 L/m (full cold), 93.63 L/m (mixed). |
Water supply temperature (maximum) | 5–65°C. |
Pressure | 0.2–5 bar (static). |
InletConnectionSize | 2 x 3/4" BSP male. |
Tap holes | Two holes. |
Handle type | Dual levers for hot and cold. |
MountingType | Deck mounted. |
InletPatternType | Hot (left), cold (right). Guidance for specification option: as viewed from the front |

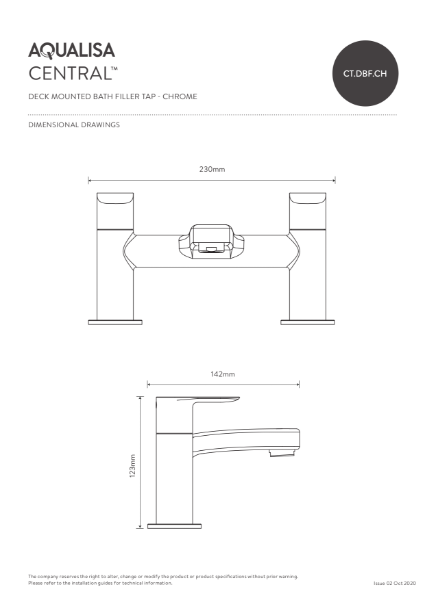

Dimensions | 123 x 142 x 230 mm. |
ValvePattern | Pull, push. |
Weight | 1.323 kg. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | % Guidance for specification option: Packaging recycled content:
|
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
WRAS
CT.DBF.CH_certificate_1802139
Literature
Aqualisa Taps Brochure
CT.DBF.CH_Spec Sheet
Aqualisa Taps Installation and User Guide
