Mian Bath Shower Mixer
Verified by manufacturer 5 months ago
Mian bath shower mixer.
Application
Compatible with gravity, boosted gravity, combi and balanced high pressure water systems.
Description

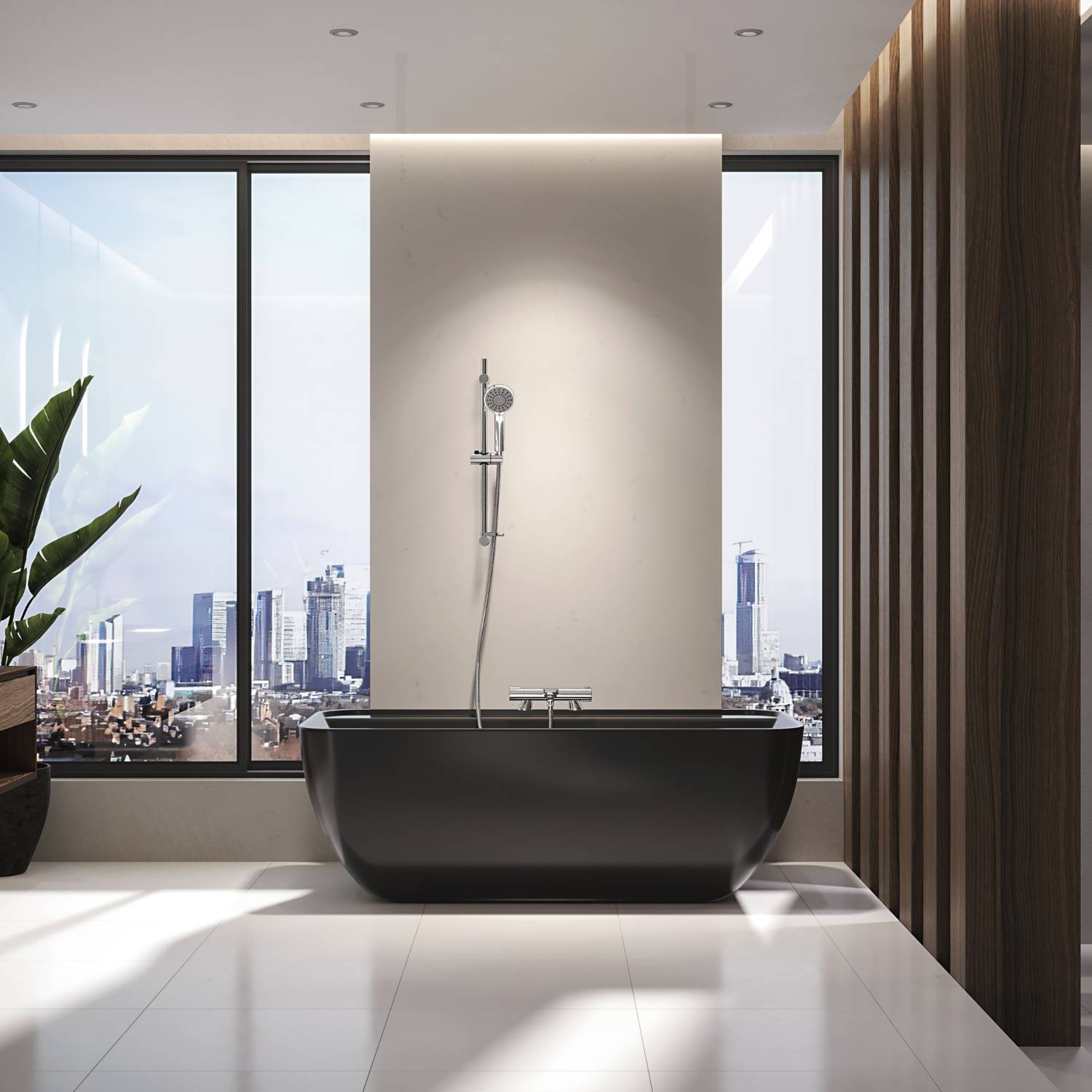

A truly versatile bar mixer valve incorporating a stylish, safe to touch, bath mixer tap with an adjustable handset shower. High flow performance with all UK water systems.
Featured and benefits:
- 106 mm three spray handset with rub clean nozzles.
- Push button handset holder.
- Temperature override button.
- Suits all UK water systems.
- Five year guarantee.
General information
Color | Silver |
Finish | Chrome |
Material | Brass Metal Plastic |
Shape | Other |
Length | 1750 mm Manufacturer guidanceHose length. |
Width | 106 mm Manufacturer guidanceHandset width. |
Height | 660 mm Manufacturer guidanceRail height. |
Warranty description | Five year Guidance for specification option: Valve guarantee. Two year Guidance for specification option: Kit guarantee. |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Bath mixer taps with shower hose and hand sprays
Form | Bath mixer tap with shower hose and handspray. |
Materials | |
Body | Brass. |
Finish and colour | Gloss chrome-plated. |
Flow rate (maximum) | 14.7 L/min at 5 bar (handset); 27.7 L/min at 5 bar (bath).Guidance for specification option: Minimum 6.4 L/min at 1 bar (handset); 12 L/min at 1 bar (bath). |
Water supply temperature (maximum) | 65°C.Guidance for specification option: Minimum - 10°C. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements. |
System | Gravity. Boosted gravity. Combi. Balanced high pressure. |
HoseLength | 1750 mm. |
Hose | Stainless steel. |
Length | 660 mm. Manufacturer guidanceRail length. |
Rail width | 22 mm. |
Shower head | 106 mm. Manufacturer guidanceHandset width. |
Spray Patterns | Three. |
Controller | 287 x 213 x 85 mm. Manufacturer guidanceController / Valve Unit (W x D x H). |
Control | Bar valve. |
Weight | 3.57 kg. |
Pressure | 0.2—5 bar. |
Centres | 180 mm inlet centres. Guidance for specification option: Deck mounted adaptors. |
InletConnectionSize | 3/4" threaded. |
OutletConnectionSize | 1/2" thread. |
Position | Rear. Manufacturer guidanceWater entry point. |
Divert | Yes. |
Power Levels | One. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Literature
300BSM Data Sheet
