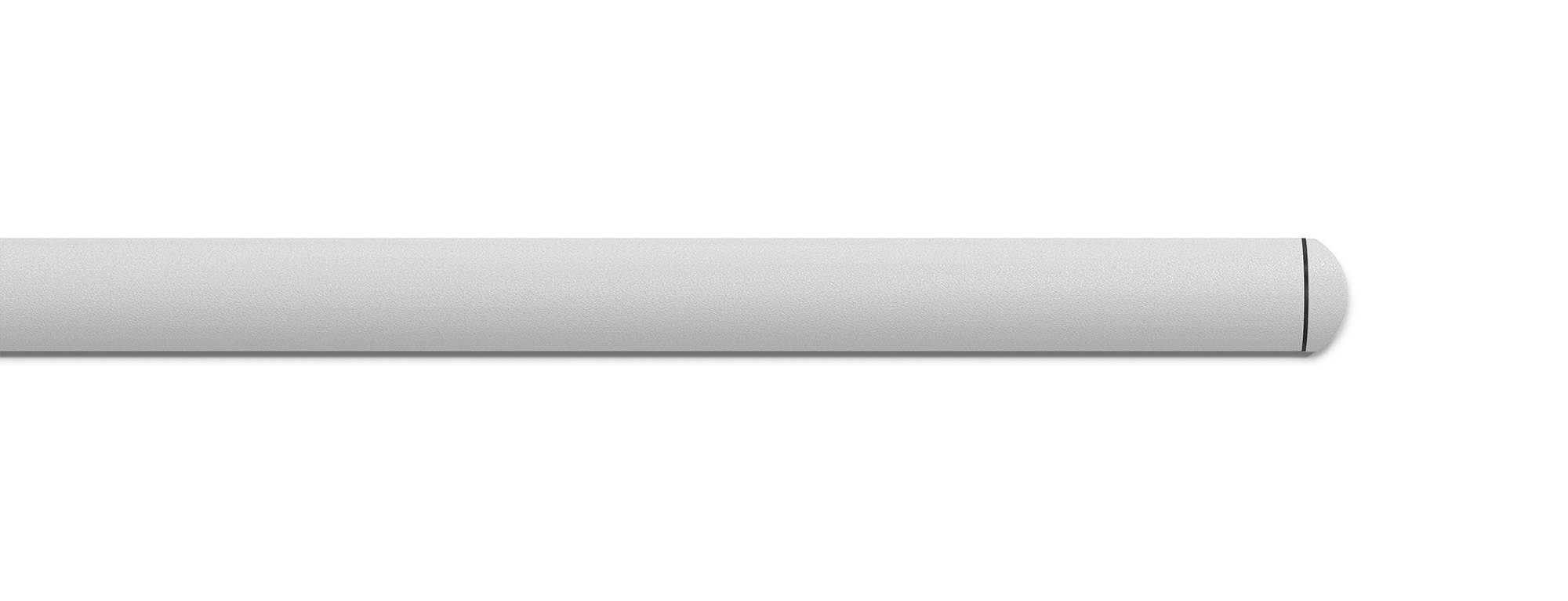

CS Acrovyn® FR-225 Rub Rails
Verified by manufacturer 2 days ago
Unobtrusive crescent-shaped rub rails offering light-duty protection for walls and doors.
Application
Light-duty protection for walls and doors.
Description

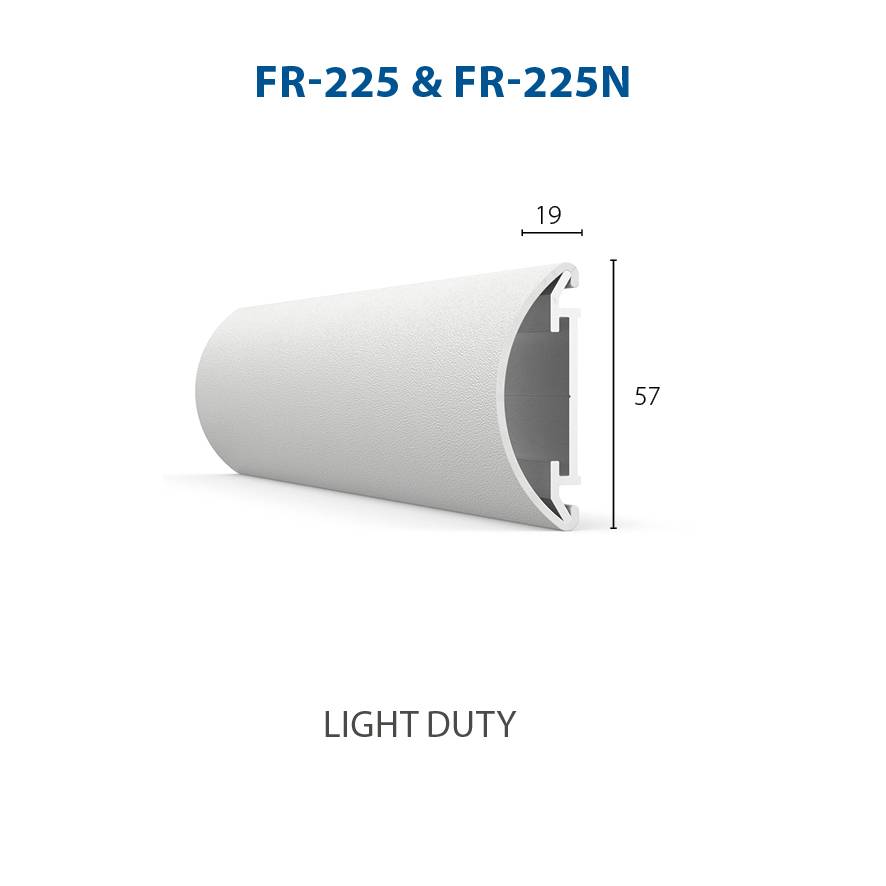

57 mm-high, unobtrusive, crescent-shaped rub rails designed for light-duty wall and door protection.
Features and benefits:
- Ideal for light-duty applications in corridors and public spaces
- Acrovyn cover over a continuous aluminium retainer
- Sleek crescent-shaped profile for minimal visual impact
- Free-floating cover design flexes on impact to reduce damage
- Available in 27 standard colours to complement any interior
General information
Color | Beige Black Blue Brown Cream |
Finish | Textured |
Material | Acrovyn® |
Shape | Crescent |
Length | 4000 mm Manufacturer guidanceStock size. |
Width | 19 mm Guidance for specification option: Depth. |
Height | 57 mm |
Warranty description | Two year Guidance for specification option: Product warranty. Life expectancy up to 25 years. |
Uniclass | |
CAWS | N10/184 Wall rails P20/170 Proprietary |
Product range |
Specification data - Wall protection panels
Classification data | |
Material | Acrovyn® with aluminium retainer. |
Finish | Textured (Shadowgrain). |
Colour or pattern | 9003 Snow White LRV: 86. 100 Eggshell LRV: 73. 801 Grey Cloud LRV: 64. 187 Tan Bark LRV: 40. 26 Taupe LRV: 24. 7044 Felt LRV: 50. 260 Misty Grey LRV: 80. 136 Pearl Grey LRV: 39. 24 Dove Grey LRV: 49. 162 Charcoal LRV: 22. 7043 Anthracite LRV: 14. 108 Black LRV: 8. 1015 Ice Blue LRV: 63. 112 Pacific Blue LRV: 24. 325 Cape Blue LRV: 32. 129 Yale Blue LRV: 8. 1510 Almond Green LRV: 60. 3040 Prairie Green LRV: 29. 6020 Sequoia Green LRV: 13. 4030 Baltic Blue LRV: 20. 101 French Cream LRV: 70. 16 Golden Yellow LRV: 66. 17 Tangerine LRV: 47. 845 Spectrum Red LRV: 15. 510 Powder Pink LRV: 79. 2050 Pink Grapefruit LRV: 28. 5120 Imperial Purple LRV: 16. |
Profile | Crescent, low-profile. |
Size | 19 x 57 x 4000 mm. |
Fixing | Screws, maximum 600 mm centres. |
Integral accessories | End caps. |
Accessories | Not required. External corners. Vertical accent trims, black. |
Sustainability data
Material | Acrovyn® |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
CS Acrovyn Wall & Door Protection Brochure (2025)
CS Acrovyn FR-225 Rub Rail_Product Sheet (09.23)
