CS Acrovyn® BL-40V Bed Head Protectors

Name: CS Acrovyn® BL-40V Bed Head Protectors
Brand: Construction Specialties (UK) Ltd
SKU: 7knFACtAy7dRyB296Vs5Mc

Verified by manufacturer today

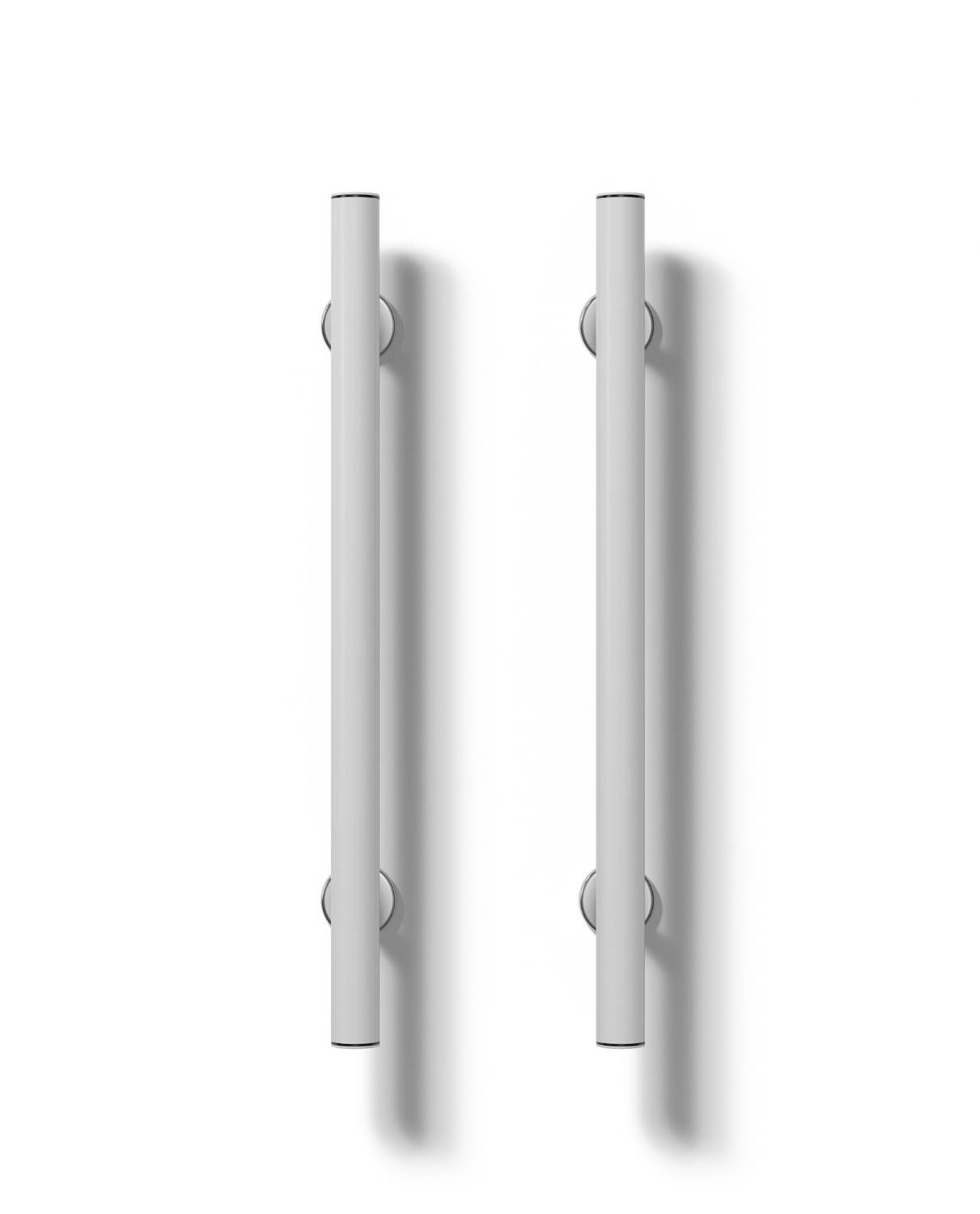

Pairs of circular, vertical bed head protectors designed to protect walls from damage caused by frequently moved or height adjusted beds.

Jump to:

BOS

Application

Bed head wall protection, designed to protect walls from damage caused by frequently moved or height adjusted beds.

Pairs of circular, vertical bed head protectors designed to protect walls from damage caused by frequently moved or height adjusted beds.

Features and benefits:

Medium-duty.
A pair of tubular 40 mm-diameter unobtrusive bed head protectors.
Smooth cover with bactericidal additives, suitable for hygienic environments (tested to ISO 22196).
Continuous aluminium retainer for strength.
Mounted on stainless steel brackets.
Supplied pre-cut with end stops and brackets included.

Color	Beige Black Blue Brown Cream Green Grey Orange Pink Purple White Yellow Show more
Finish	Smooth
Material	Acrovyn®
Shape	Circle

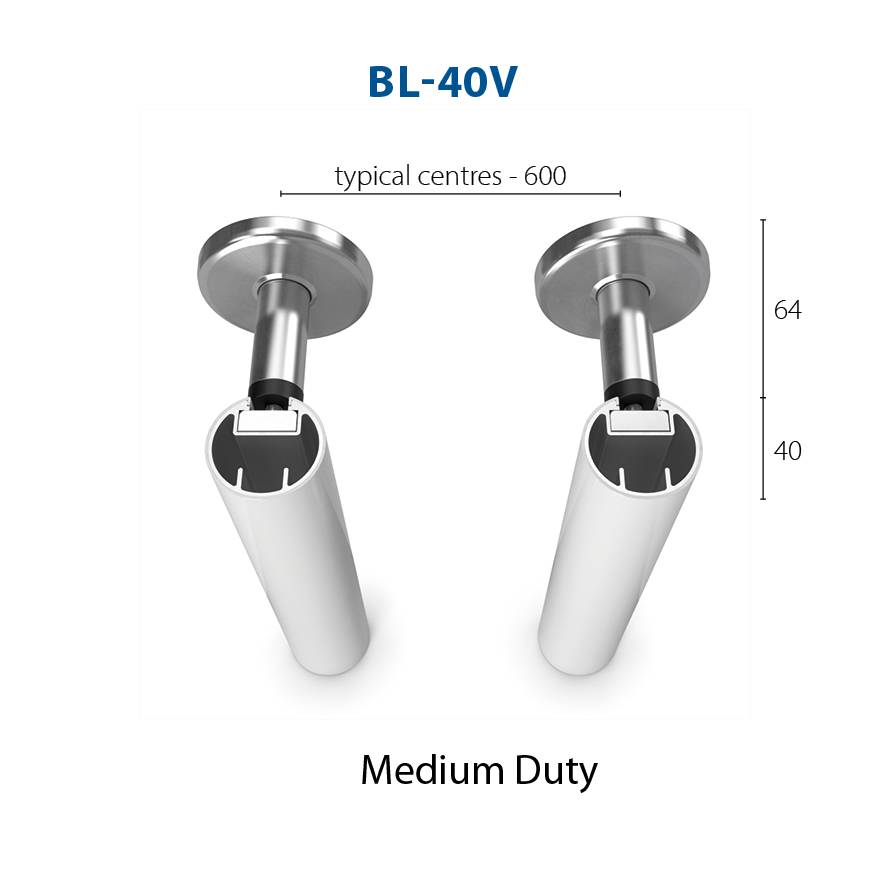

Width	- Manufacturer guidance Tubular rails are 40 mm diameter and are typically installed at 600 mm centres.
Height	700 mm Manufacturer guidance 700 mm standard (including end stops); stainless steel brackets to provide 104 mm overall projection from the wall

Uniclass	Pr_35_90_43_86 Wall protection panelsPrimary Pr_35_90_43_18 Composite protection rails
CAWS	P20/170 Proprietary P20/30 Proprietary N10/184 Wall rails

Product range	CS Acrovyn Bed Head Protectors

Classification data
Material	Acrovyn®.
Finish	Smooth.
Colour or pattern	9003 Snow White LRV: 86. 100 Eggshell LRV: 73. 801 Grey Cloud LRV: 64. 187 Tan Bark LRV: 40. 26 Taupe LRV: 24. 7044 Felt LRV: 50. 260 Misty Grey LRV: 80. 136 Pearl Grey LRV: 39. 24 Dove Grey LRV: 49. 162 Charcoal LRV: 22. 7043 Anthracite LRV: 14. 108 Black LRV: 8. 1015 Ice Blue LRV: 63. 112 Pacific Blue LRV: 24. 325 Cape Blue LRV: 32. 129 Yale Blue LRV: 8. 1510 Almond Green LRV: 60. 3040 Prairie Green LRV: 29. 6020 Sequoia Green LRV: 13. 4030 Baltic Blue LRV: 20. 101 French Cream LRV: 70. 16 Golden Yellow LRV: 66. 17 Tangerine LRV: 47. 845 Spectrum Red LRV: 15. 510 Powder Pink LRV: 79. 2050 Pink Grapefruit LRV: 28. 520 Imperial Purple LRV: 16.
Profile	Circular.
Size	40 mm diameter, 700 mm high. Guidance for specification option: 700 mm standard (including end stops); stainless steel brackets to provide 104 mm overall projection from the wall.
Fixing	Bracket mount. Guidance for specification option: Wall to rail: 64 mm.
Standard	Tested to ISO 22196.
End caps	Flat.
